LG OLED55E6P User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
HDMI
M16
33
2015-01-10
DDC_SDA_1
DDC_SCL_1
DDC_BUFFER_SW
5V_HDMI_1
AR3312
47K
1/16W
HDMI_EXT_EDID
D3310
MMBD6100
HDMI_EXT_EDID
A2
C
A1
+5V_NORMAL
C3304
0.1uF
16V
HDMI_EXT_EDID
IC3302
PCA9517DGKR
DEV_PCA9517_EXTEDID
3
SDAA
2
SCLA
4
GND
1
VCCA
5
EN
6
SDAB
7
SCLB
8
VCCB
DDC_BUFFER_SDA
DDC_BUFFER_SCL
R3300
0
HDMI_EXT_EDID
R3301 0
HDMI_EXT_EDID
R3302
0
HDMI_EXT_EDID
R3303 0
HDMI_EXT_EDID

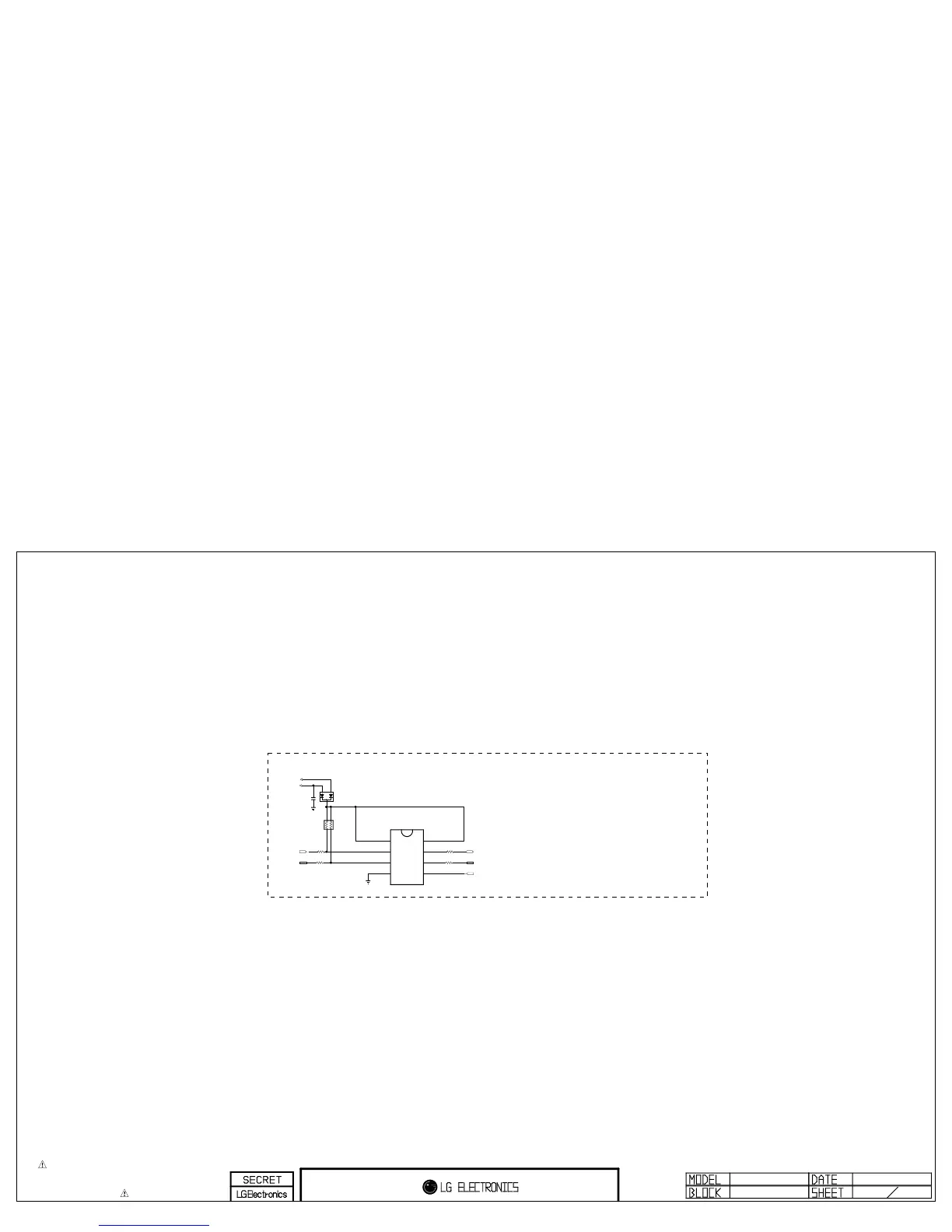

EDID external EEPROM & DDC BUFFER for HDMI3
FROM HDMI PORT
HDMI
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG OLED55E6P Specifications

General

Screen Type	oled
Wall Mount	400mm x 200mm
Features	cinematic color, perfect black panel, ultra luminance
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
HDR Format	dolby vision
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
HDMI ARC Ports	yes
USB Ports	3
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	yes
Power Consumption	198 kilowatt hours
Depth with Stand	6.9 inches
Height with Stand	30.2 inches
Width with Stand	48.8 inches
Net Weight with Stand	40.8 pounds
Depth without Stand	2.2 inches
Height without Stand	30.2 inches
Net Weight without Stand	37.7 pounds
