LG OLED55E6P User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
15/06/13

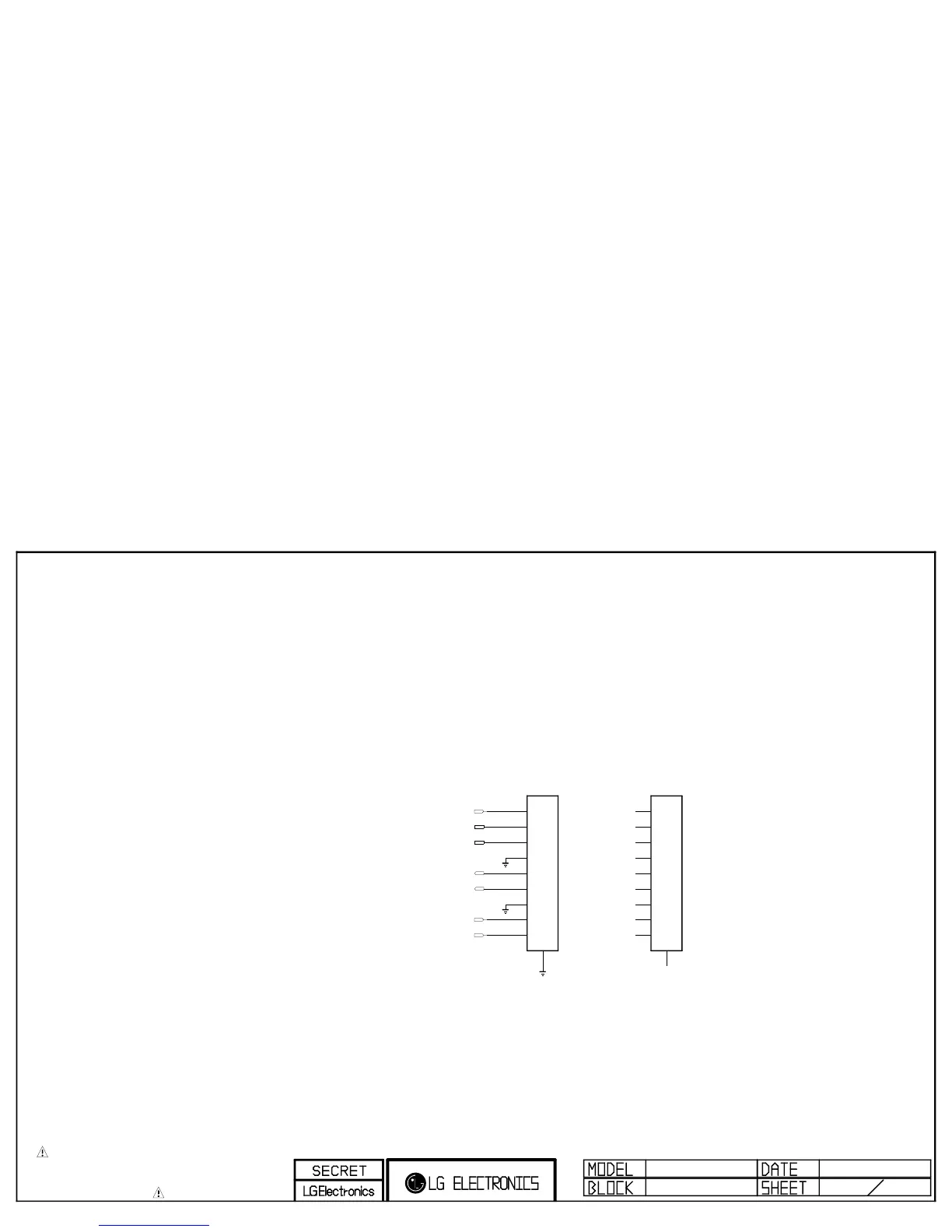

JACK_USB1_3.0 73
USB3_DM0_JACK
USB3_RXM0
JK4200
5205-56209
JACK_USB3.0_CNPLUS
EAG63374203
1
VBUS
2
D-
3
D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
SHIELD
USB3_RXP0
USB3_TXM0
+5V_USB_1
USB3_DP0_JACK
USB3_TXP0
JK4200-*1
3AG009S-106N3R6003(1.2T PCB)
JACK_USB3.0_DEV
EAG63374205
1
VBUS
2
D-
3
D+
4
GND
5
STDA_SSRX-
6
STDA_SSRX+
7
GND_DRAIN
8
STDA_SSTX-
9
STDA_SSTX+
10
SHIELD
MAX 1.5A
USB3.0
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG OLED55E6P Specifications

General

Screen Type	oled
Wall Mount	400mm x 200mm
Features	cinematic color, perfect black panel, ultra luminance
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
HDR Format	dolby vision
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
HDMI ARC Ports	yes
USB Ports	3
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	yes
Power Consumption	198 kilowatt hours
Depth with Stand	6.9 inches
Height with Stand	30.2 inches
Width with Stand	48.8 inches
Net Weight with Stand	40.8 pounds
Depth without Stand	2.2 inches
Height without Stand	30.2 inches
Net Weight without Stand	37.7 pounds
