LG OLED55E7 series Service Manual

- 21 -
Copyright ©
LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
FAB31639801(M4*10mm, Black) 6EA
3.
2.

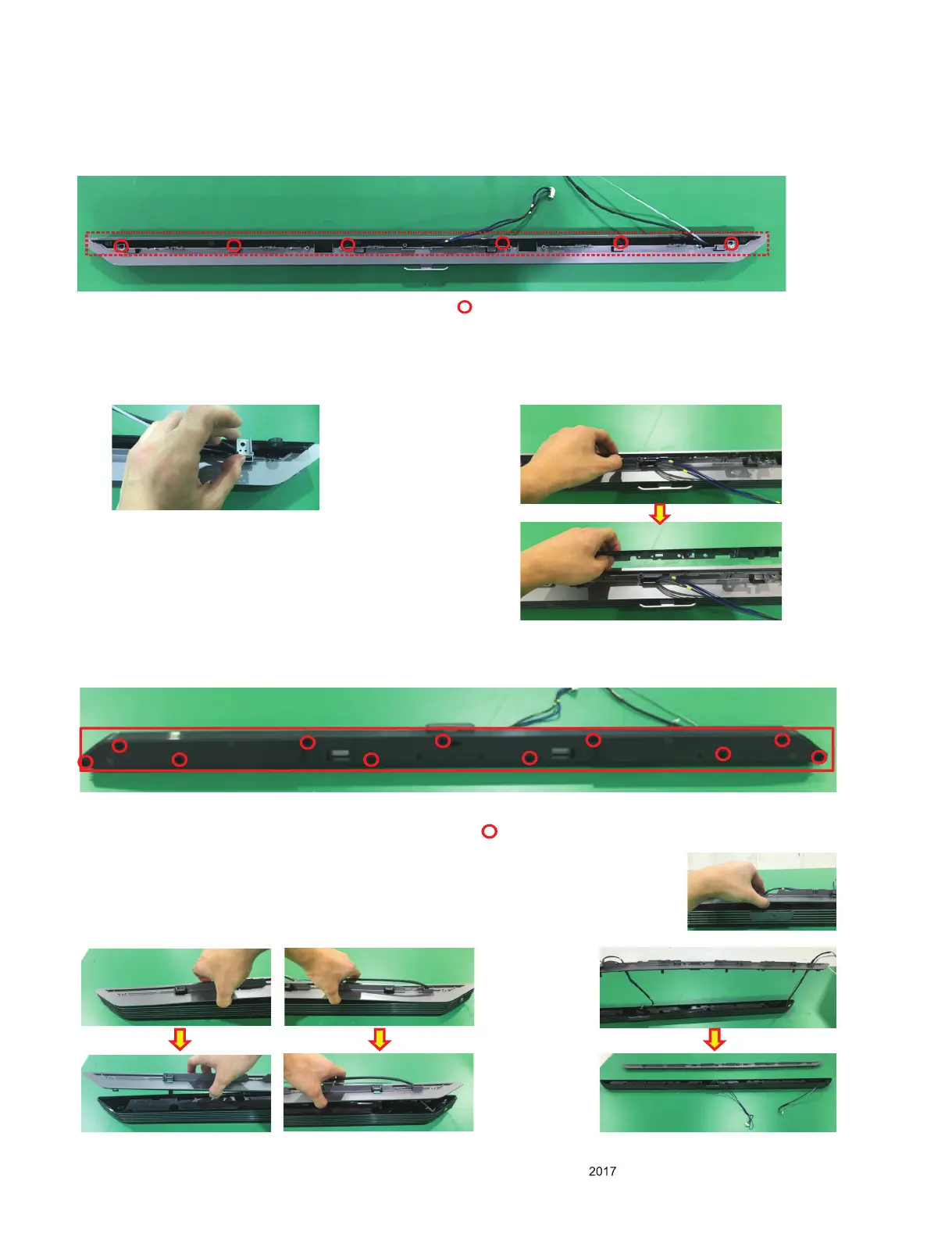

7. Disassemble Bottom Deco
(1) Remove the screws (6EA)
(2) Separate the fixer (End of left & right side)
(3) Grasp the center of bottom deco and push in the direction of front
(4) Separate the bottom deco after lift it
FAB31639801(M4*10mm, Black) 11EA
3.
2.
3. 4.
8. Disassemble Speaker Box Top
(1) Remove the screws (11EA)
(2) Lift the speaker box top after grasp the center
(3) Lift the speaker box top after grasp the end side
(4) Separate speaker box top after remove the cable through the hole
