LG OLED55E8PUA - Disassembly Guide

- 17 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
DISASSEMBLY GUIDE
Total Screw No. : 34ea

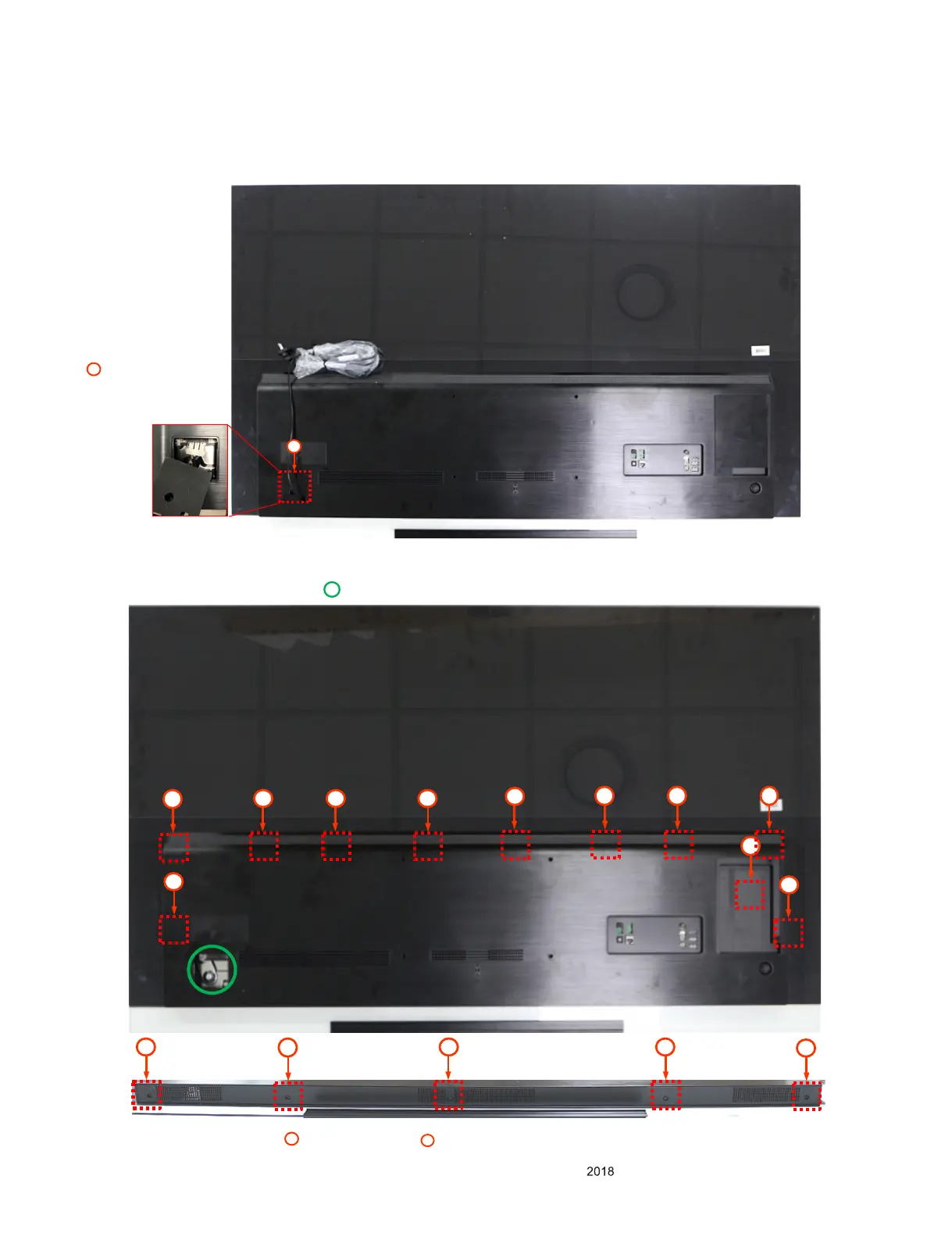

1. Remove screw 1ea, disassemble power cord from back cover.
2. Remove screw 5ea, disassemble back cover from module.
* Put hand on the marked area( ), separate the back cover to the top.
1
1
2 2 2
2
1
1
1
1
2
2
2
2 2 2
2
Screw : 1ea
1
Screw : 5ea
1
Holder and Latch : 11ea
2
