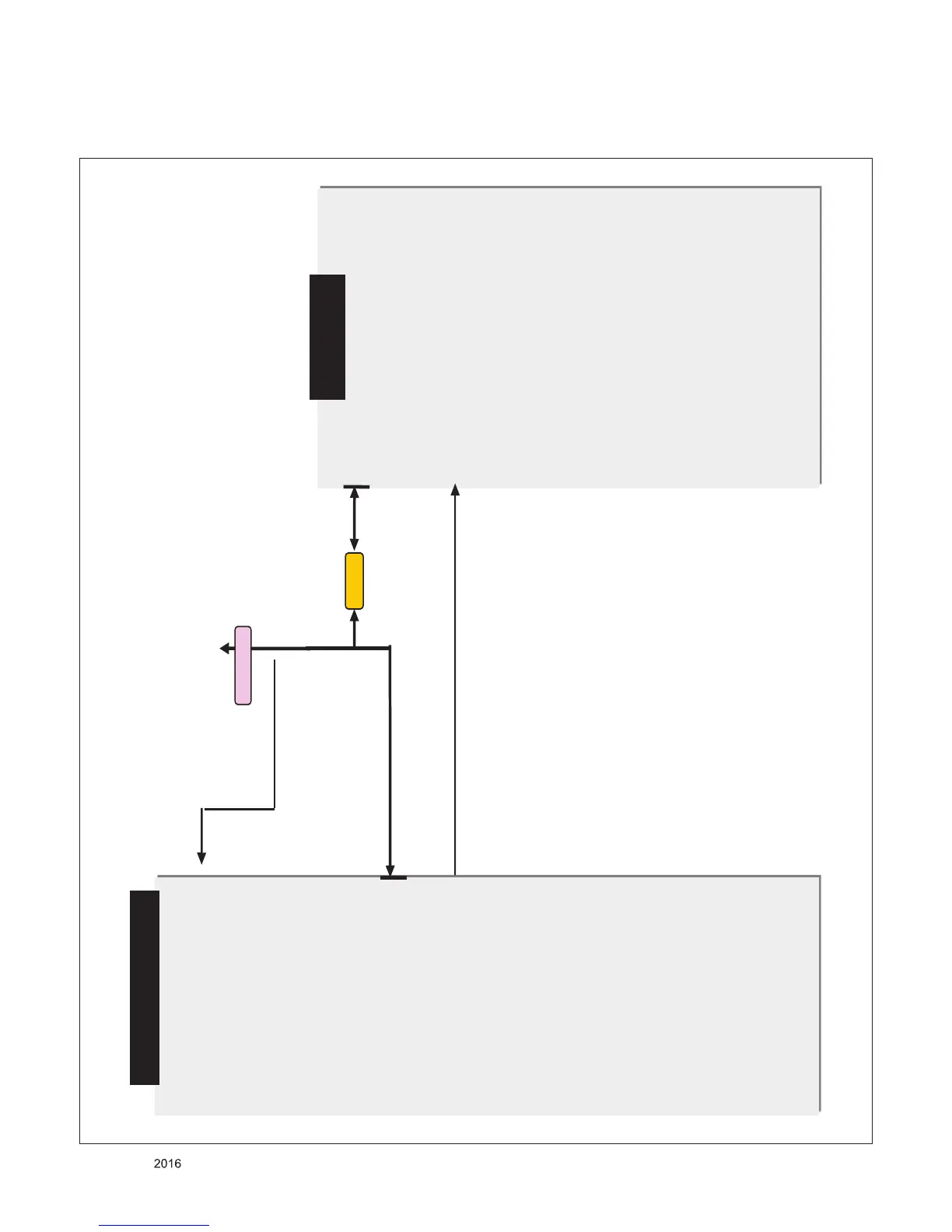

4. Tuner/CI Block Diagram
IF_AGC IF_P_MAIN IF_N_MAIN IF_P_MAIN TU_CVBS
SCL2 SDA2
TDJH-H301F
IF_AGC_TU
IF_P_TU
IF_N_TU
TU_SIF
TU_CVBS_TU
[+3.3V_LNA_TU] 1
+3.3V_Normal
[I2C_SCL2_TU] 4
[I2C_SDA2_TU] 5
33 Ω
+3.3V_TU
1.8KΩ
K2L
GPIO0_RF_IF_AGC1 IFN IFP VIN10P
