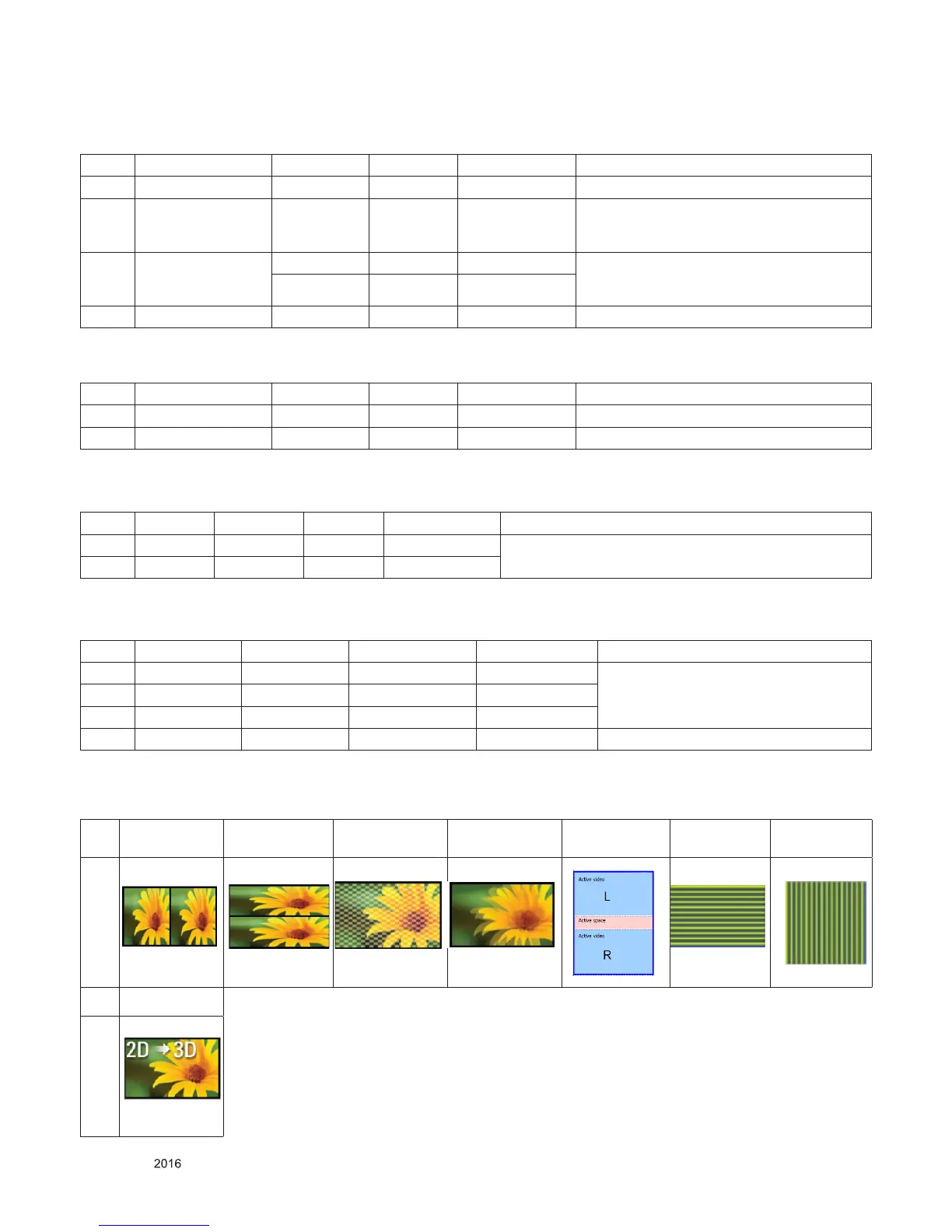

6.2.5. USB – Movie (3D) (3D supported mode manually)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 704x480 - - - 2D to 3D
2 Over 704x480
Under 1080P
interlaced
- - - 2D to 3D, Side by Side(Half), Top & Bottom
3 Over 704x480
Under 1080P
progressive
- 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom,
- others -
4 Over 2160P - 24/25/30 - 2D to 3D, Side by Side(Half), Top & Bottom
6.2.6. USB, DLNA -Photo (3D) (3D supported mode manually)
6.2.7. USB, DLNA (3D) (3D supported mode automatically)
6.2.8. Miracast, Widi (3D supported mode manually)
* Remark: 3D Input mode
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 320x240 - - - 2D to 3D
2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom, Side by Side(Full), Frame
Sequential, MPO(Photo), JPS(Photo)
2 2160p 67.5 30 297
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024*768p - 30/60 - 2D to 3D
2 1280*720p - 30/60 -
3 1920*1080p - 30/60 -
4 Others - - - 2D to 3D
No. Side by Side Top & Bottom Checkerboard Single Frame
Sequential
Frame
Packing
Row
Interleaving
Column
Interleaving
1
2D to 3D
