LG OLED65E8PUA Service Manual

- 9 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

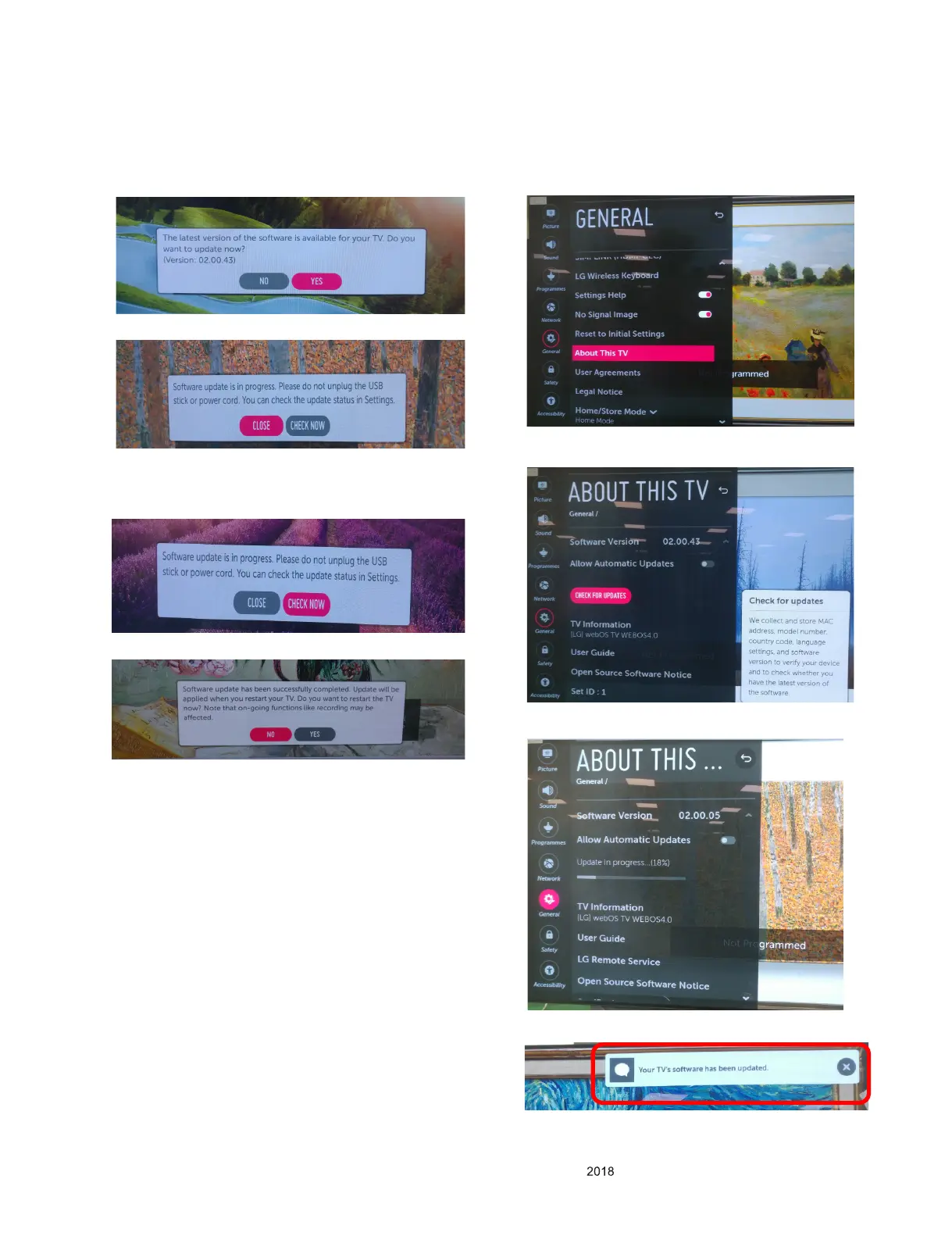

SOFTWARE UPDATE
1. USB
(1) Insert the USB memory Stick to the USB port
(2) Automatically detect the SW Version and show the below
message
(3) Click [YES]: initiate the download and install of the update.
(4) Click [Check Now]: move to “About This TV” page for
update
(5) TV is updating
(6) After finished the update, below Pop-up appear
(7) Click [Yes] : TV will be DC OFF -> ON
(8) After TV turned on, Check the updated SW Version and
Tool Option
2. NSU
(This Function is needed to connect to the internet)
(1) Menu -> All Settings -> General -> About This TV
(2) Click [CHEK FOR UPDATES] : system check newest
version
(3) Click [DOWNLOAD AND INSTALL]
(4) TV is updating
(5) After finished the update, below Pop-up appear
(6) Turn OFF the TV and On. Check the updated SW Version
and Tool Option

LG OLED65E8PUA Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Features	glass design, lg ai thinq, ?9 intelligent processor, oled display, 4k hdr cinema, ultra luminance pro, dolby atmos
Tuner	digital
Screen Size	64.5 inches, 65 inches
Resolution	4k (2160p)
Refresh Rate	120hz
HDR	yes
HDR Format	advanced hdr by technicolor, dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	yes
Surround Sound	dts-hd, dolby atmos
Speakers Output	60 watts
HDMI Ports	0
HDMI 2.1 Ports	0
USB Ports	3
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	google play movies & tv, google play music, prime video
Smart Applications	amazon alexa, google assistant
Voice Assistant	google assistant
Remote Control	magic
3D	no
Power Consumption	225 kilowatt hours
Depth with Stand	8.7 inches
Height with Stand	36 inches
Width with Stand	57.1 inches
Net Weight with Stand	60.8 pounds
Depth without Stand	2 inches
Height without Stand	35.6 inches
Net Weight without Stand	56.4 pounds
