- 11 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SCL5
SDA5
AAD_ADC_SIF
Tuner

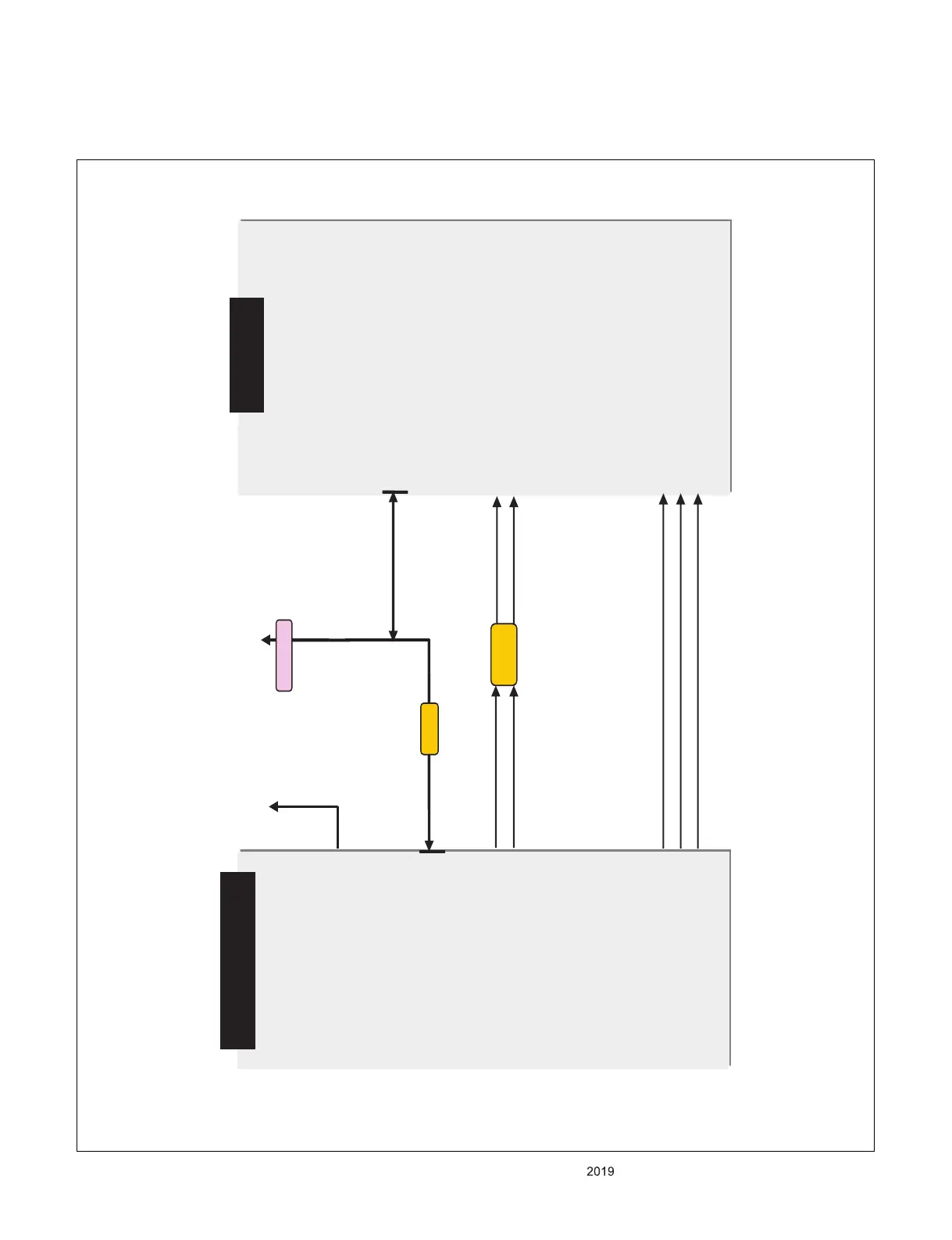

[I2C_SCL_5_TU] 1
[I2C_SDA_5_TU] 2
[TU_SIF_TU] 6
[TU_CVBS_TU] 4
[IF_AGC_TU] 5
TU_CVBS
IF_AGC
CVBS_IN1
IFAGC
+3.3V_TU
1.8KΩ
Main IC
[3.3V_TU] 3
+3.3V_TU
33 Ω
DMD_TADC_INP
DMD_TADC_INN
[IF_P] 8
[IF_N] 7
FILTER
IF_P_TU
IF_N_TU
TADC_I_INP
TADC_I_INN
2. Tuner
