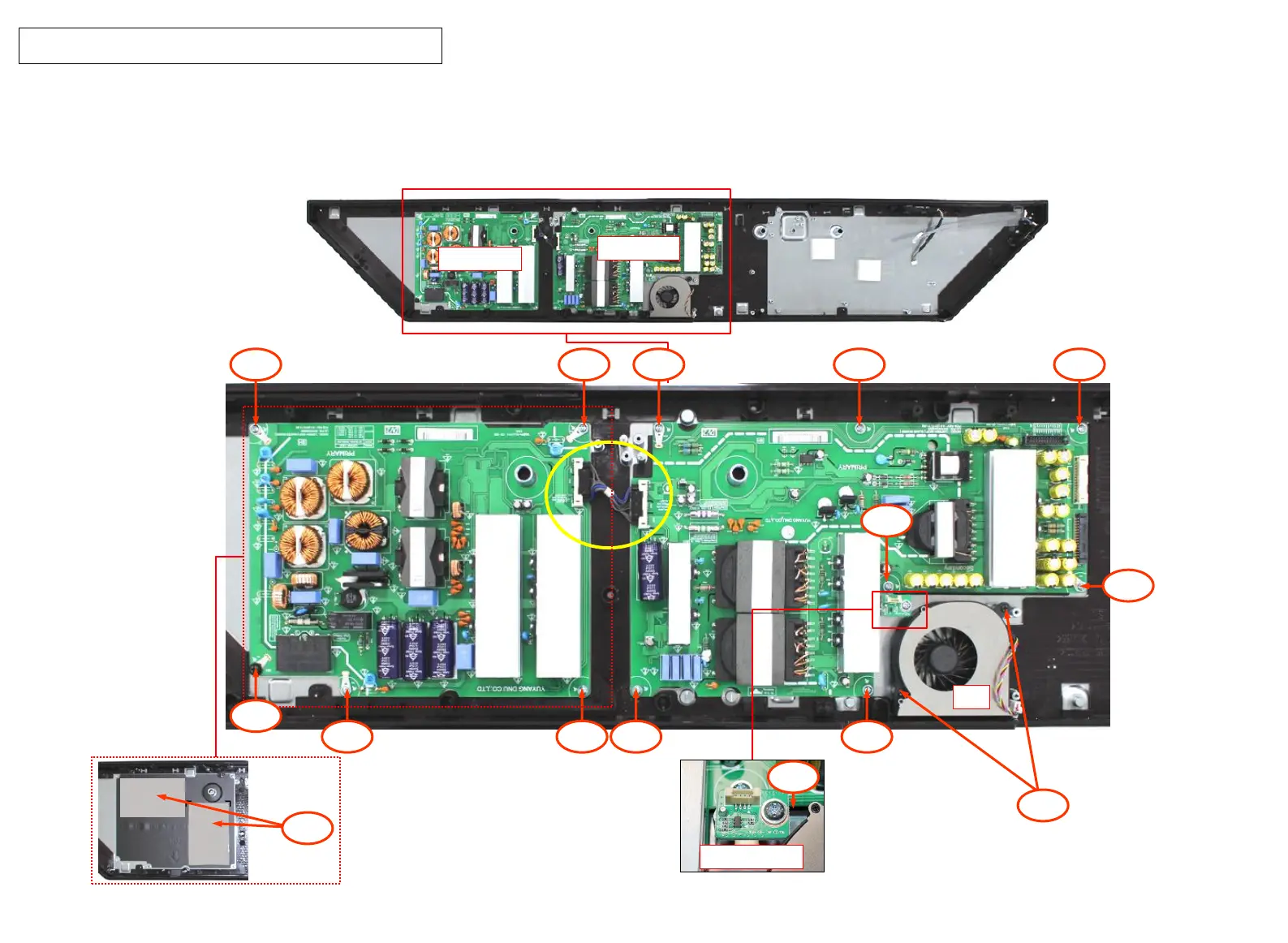

(17-1) Disconnect the Connector and unfasten the Screw 5EA at PSU Master PCB.
When you separate the PCB, you need a little power because gap pads were stuck at the bottom of PCB.
(17-2) Unfasten PSU Slave Screw 5EA.
(17-3) Unfasten Thermal PCB Screw 1EA.
(17-4) Unfasten Fan Screw 2EA.
PSU Mater
PSU Slave
17-1 17-1
17-1 17-1
17-2 17-2 17-2
17-2 17-2
17-2
17-2
17-3
17-4
Thermal PCB
FAN
17-1
17-1
OLED65G6 Disassembly Guide
