LG PH30N - Assembly Guide

- 12 -
Copyright © - LG Electronics Inc. All rights reserved.
Only training and service purposes.

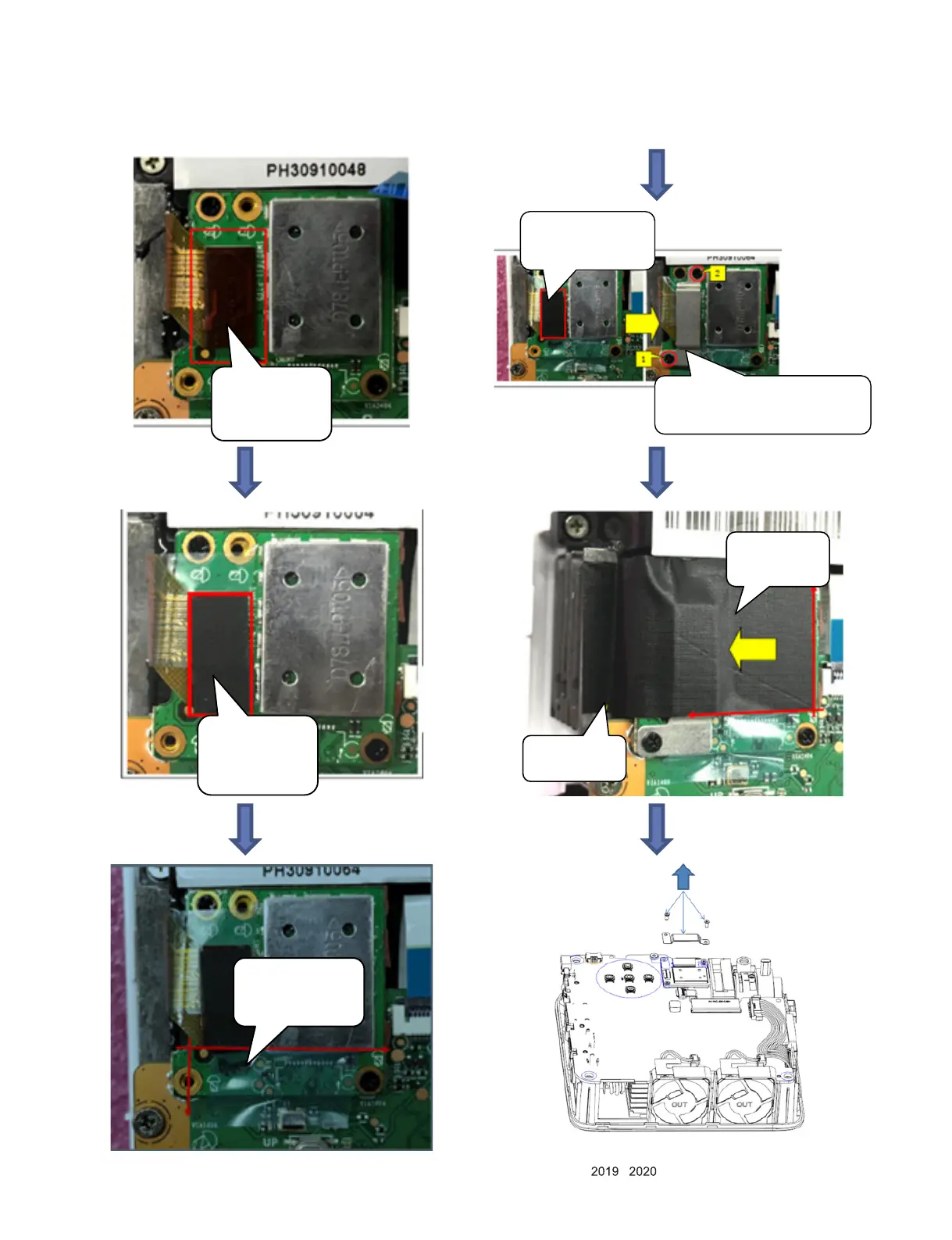

1. DMD Cable assembly
Engine
DMD cable
connect to
drive plate
Press DMD
cable, then
stick foam
cotton
Stick TESA
tape
Press-plate shall be assembled in
place, and two screws shall be
vertically locked in place at 1 and 2
position
Check foam cotton
stick to the engine
DMD cable in place
Stick
conductive
cloth
Press the
step in place
ASSEMBLY GUIDE
