General Information
4 _ General Information

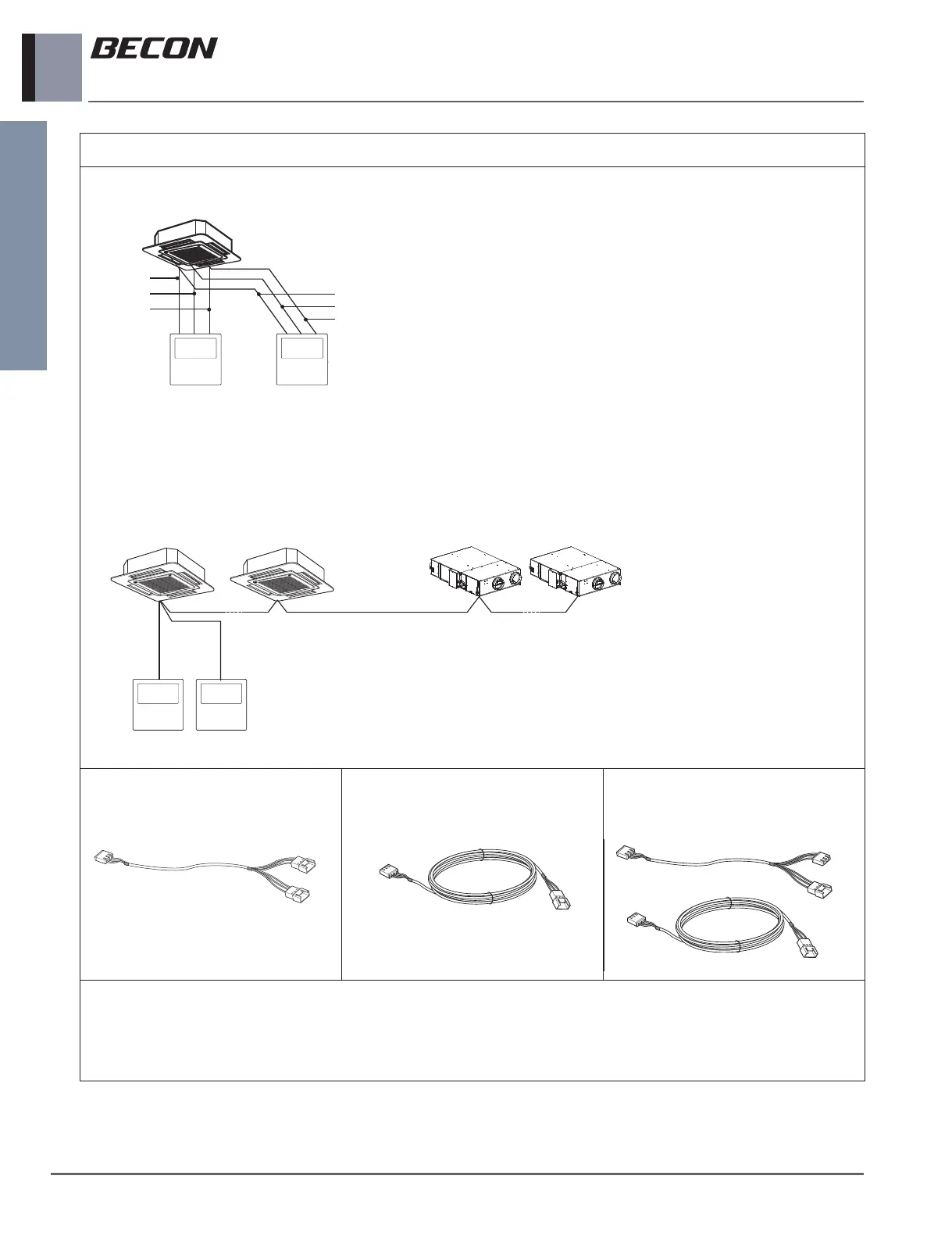

Outline of system
4. 2 Remote Controller Control
Master Slave
GND
DC 12 V
Signal
GND
DC 12 V
BK YL RDBK YL RD
Signal
⇒ When installing more than 2 units of wired remote controller to one air conditioner, set one wired remote con-
troller as master the others all as slaves.
You can use the air-conditioner and ventilation products as below using various control methods.
Master Slave Master Slave
Max. 16 EA units
Master Slave
•
2 Remote Controller Control cable
- Model name : PZCWRC2
- Length : 0.25m
• Extension cable
- Model name : PZCWRC1
- Length : 9.6m
• Group Control cable
- Model name : PZCWRCG3
- Length : 0.25m / 9.6m
• Ventilation product means general ventilation and DX ventilation.
• Up to 16 IDU and ventilation units can be connected to wired remote controller for use.
• If you need more detail, please refer to the manual of product.
(http://partner.lge.com: Home> Doc.Library> Manual)
To Next Page
