Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ZigBee Pro and Wi-Fi Wire-
less Modules
Follow this procedure to install the optional
wireless modules (models ZVRCZPWC2 and
VCM8002V504). The Zigbee* Pro wireless
module is required for the controller to com-
municate with the optional wireless sensors
and the Wi-Fi module is required for BACnet
over IP.
ACCESSORIES INSTALLATION

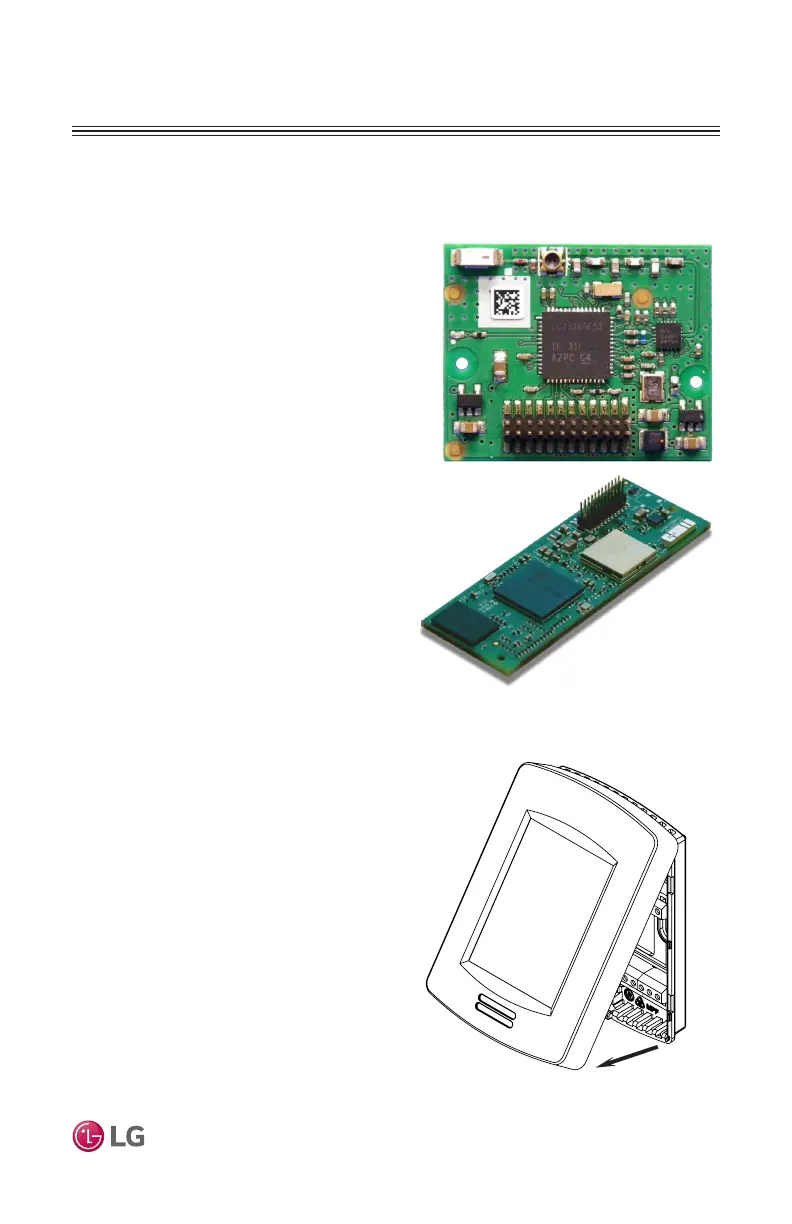

Figure 8: ZigBee Pro and Wi-Fi
Wireless Modules
1. Remove security screw (if any) on
bottom of Remote Controller cover.
2. Open unit by pulling on bottom side
of Remote Controller (Figure 9).
3. Carefully remove Remote Control-
ler’s Motherboard from casing and
turn over.
4. Locate gap in upper-right corner of
Remote Controller’s motherboard
and locate holes to insert the module
into the motherboard (Figure 10).
5. Align connector pins on Zigbee
Pro or Wi-Fi module with holes on
motherboard. Ensure alignment of
pins is correct so as to not damage
the module.
Figure 9: Open Cover
*ZigBee is a registered trademark of the ZigBee Alliance.
