ACCESSORIES INSTALLATION
Door/Window Sensor (Old Model - ZVRCZDWS1)
Follow this procedure to install the optional
door/window sensor.
Consider the following location constraints
before installing a door/window sensor:
• Do not install a on metal surface.
• Do not install in areas with a direct
heat source.
• Do not install near any air discharge
grill.
• Do not install in areas exposed to direct sunlight.
• Ensure mounting surface is at and clean.
• Install in a dry location away from water, moisture, or rain.
Sensor Placement
Figure 27 shows suggested placement guidelines to optimize sensor operation. En-
sure contact switch and magnet face each other as shown in Figure 27. The contact
switch and magnet can be a maximum of 0.75 in apart. If aligned properly, you will
hear a ‘click’ when they approach.

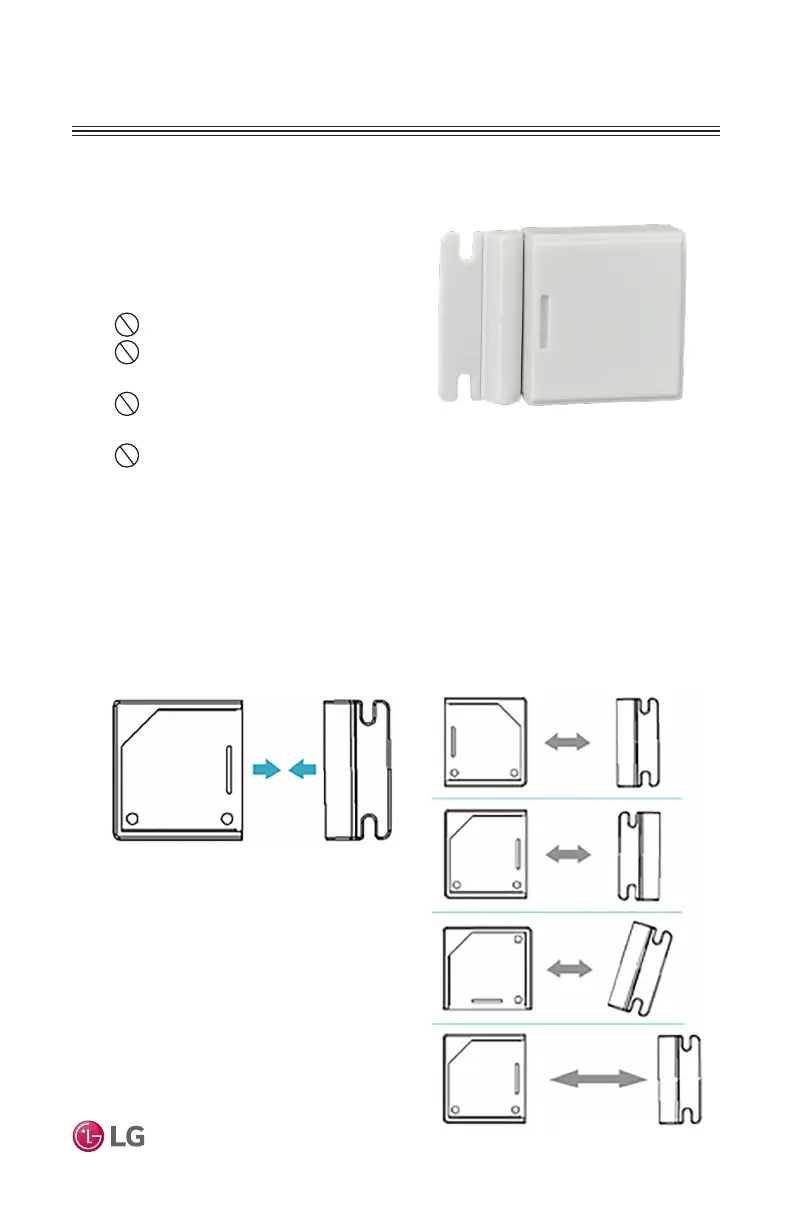

Figure 27: Door/Window Sensor Placement
Correct
Incorrect
< 0.75 in
> 0.75 in
Contact Switch
Magnet
Figure 26: Door/Window Sensor
To Next Page
