THERMISTORS INSTALLATION
Pipe thermistors Installation
Location of the pipe thermistors
A correct installation of the thermistors is required to ensure a good operation :
1 Pipe_In (EBG61287703)
: Install the thermistor behind the distributor on the coldest pass the heat exchanger
(contact your heat exchanger dealer).
2 Pipe_Out (EBG61287704)
: Install the thermistor at the outlet of the heat exchanger as close as possible to the heat ex-
changer.
Evaluation must be done to check if the evaporator is protected against freeze-up.
Execute test operation and check for freeze-up.

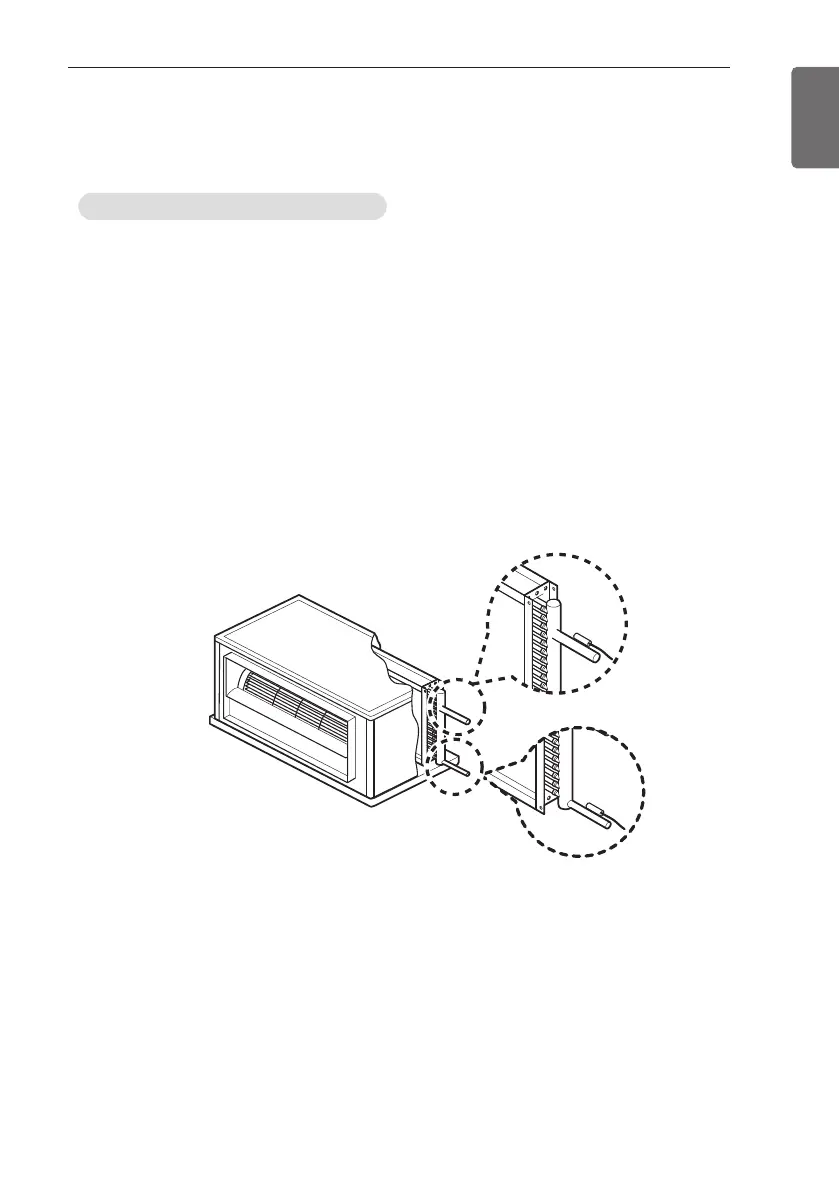

1 Pipe_In(Suction pipe)
2 Pipe_Out(Discharge pipe)
