LG PRLK048A0 - Eev Kit Installation; Mechanical Installation

EEV KIT INSTALLATION
9
ENGLISH
Mechanical Installation
EEV KIT INSTALLATION

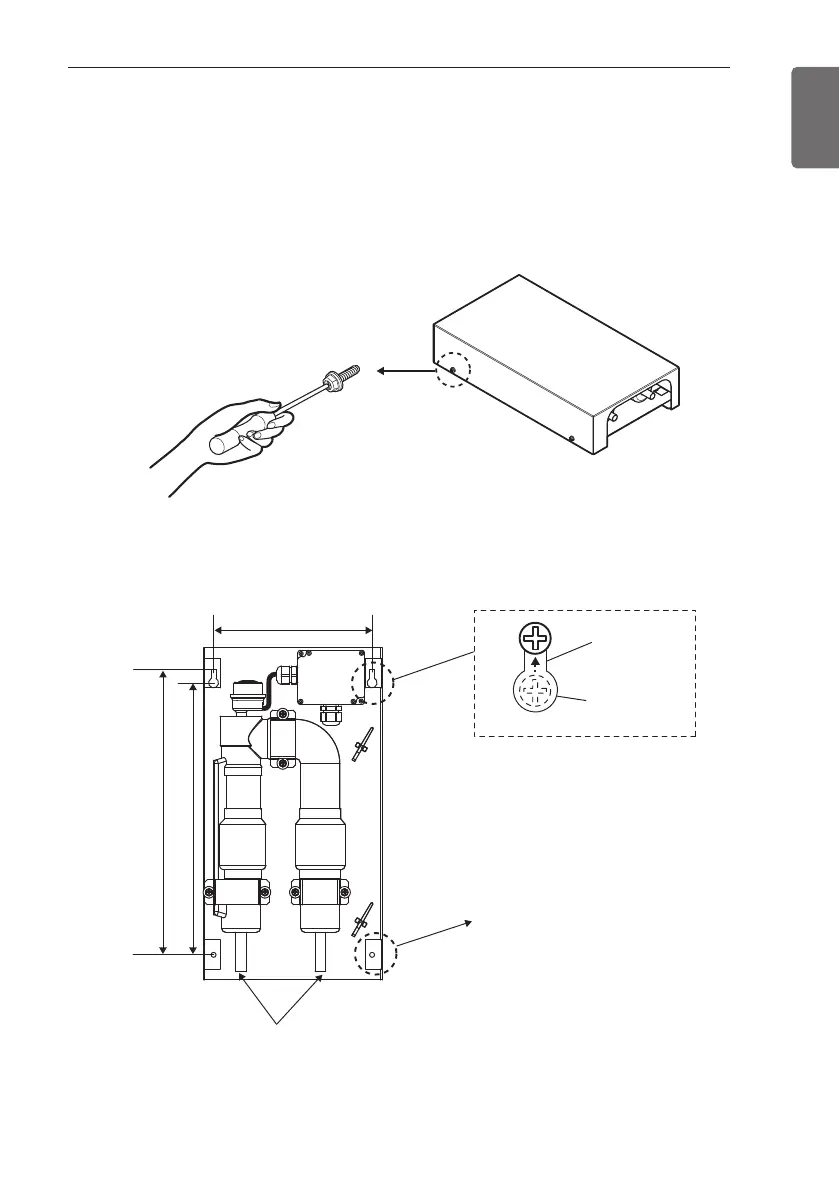

1 Remove the EEV Kit box cover by unscrewing the screw(4EA).
2 Drill 4 holes on correct position and fix the EEV Kit box securely with 2 screws(M5, Field sup-
ply) at the ‘A’ position and then fix the EEV Kit box with other screws(M5×2EA) at the ‘B’
position.
190 mm
Provided holes
Ø6 (M5x2EA)
Pipe size
Ø12.7 mm(1/2")
B
AA
B
6mm
Ø12 Hole
326 mm 342 mm
