LG PTAC Type - YA Chassis Piping Diagrams

31 Product Data
PTAC
6RWU0-03A

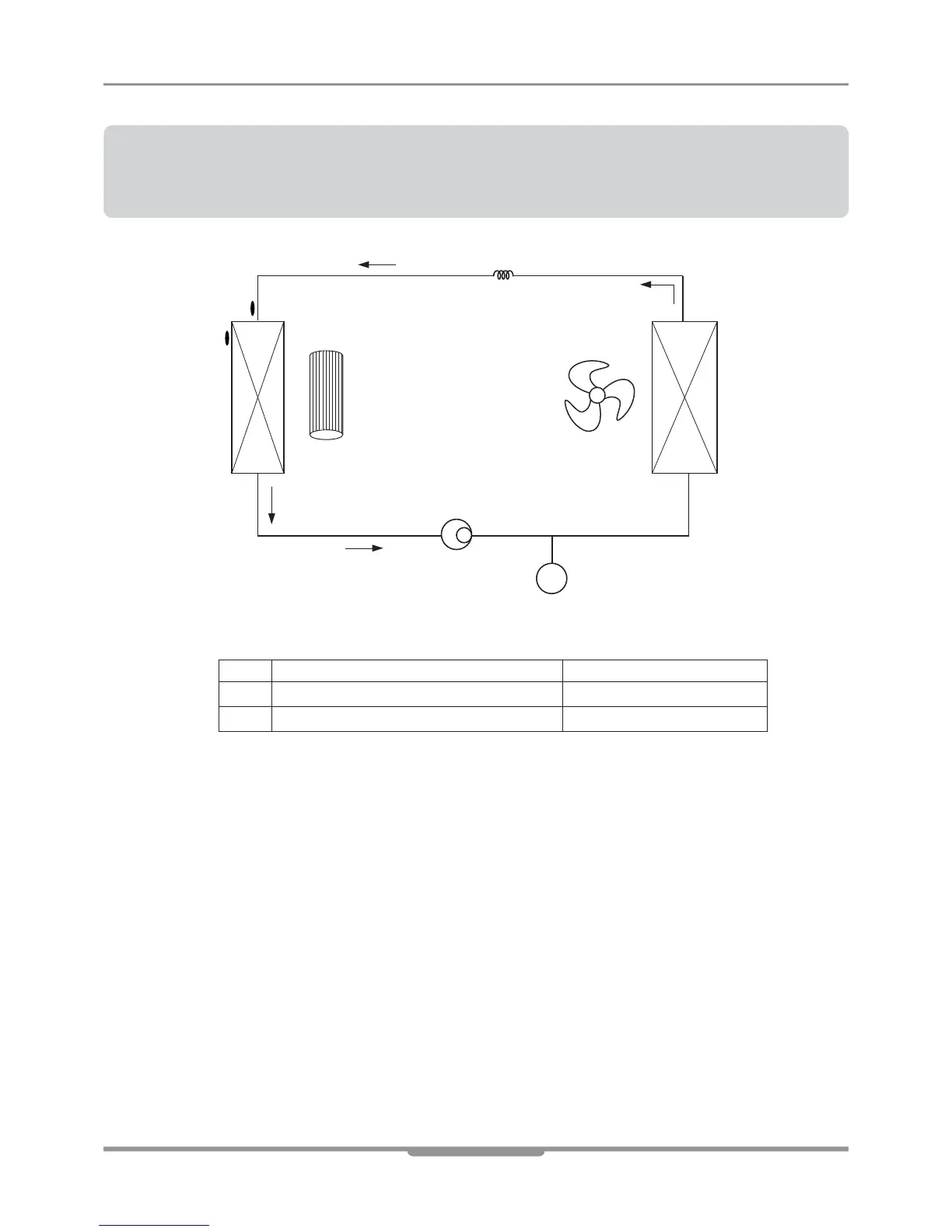

1.5 Piping diagrams
Models : UYC073ALE21(LP073CD2B)
UYC093ALE31(LP093CD3B)
UYC123ALE31(LP123CD3B)
UYC153ALE31(LP153CD3B)
UYC09EALE31(LP096CD3B)
UYC12EALE31(LP126CD3B)
Heat
Exchanger
(Evaporator)
Heat
Exchanger
High Pressure S/W
: 41.8/32.6(kgf/cm
2
G)
[595/463(lbf/in
2
G)]
(Condenser)
Capillary Tube
Axial Fan
Liquid side
Th1
Th2
Compressor
Gas side
C.F.F
H/P
LOC. Description PCB Connector
Th1 Thermistor for indoor Air temperature CN-IDAT2
Th2 Thermistor for evaporator temperature CN-IDPT
YA Chassis
