3. Loosely assemble the sill support using the parts in
Figure 22.
4. Select the position that will place the sill support
near the outer most point on sill (See Figure 23)
NOTE: Be careful when you install the cabinet (frame
guides ⑪ are broken so easily).
5. Attach the sill support to the cabinet track hole in
relation to the selected position using 2 Type A
screws in each support(See Figure 23).
6. The cabinet should be installed with a very slight
tilt(about
1
/2") downward toward the outside (See
Figure 24).
Adjust the bolt and the nut of sill support for
balancing the cabinet.
7. Attach the cabinet to the window stool by driving the
screws ⑥(Type B: Length sixteen millimeters and
below.) through the front angle into window stool.
8. Pull each Frame curtain fully to each window sash
track, and repeat step 2.
9. Attach each Frame curtain the window sash using
screws ⑦(Type C).(See Figure 25)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate with
approximately 1/2" of water in bottom pan.

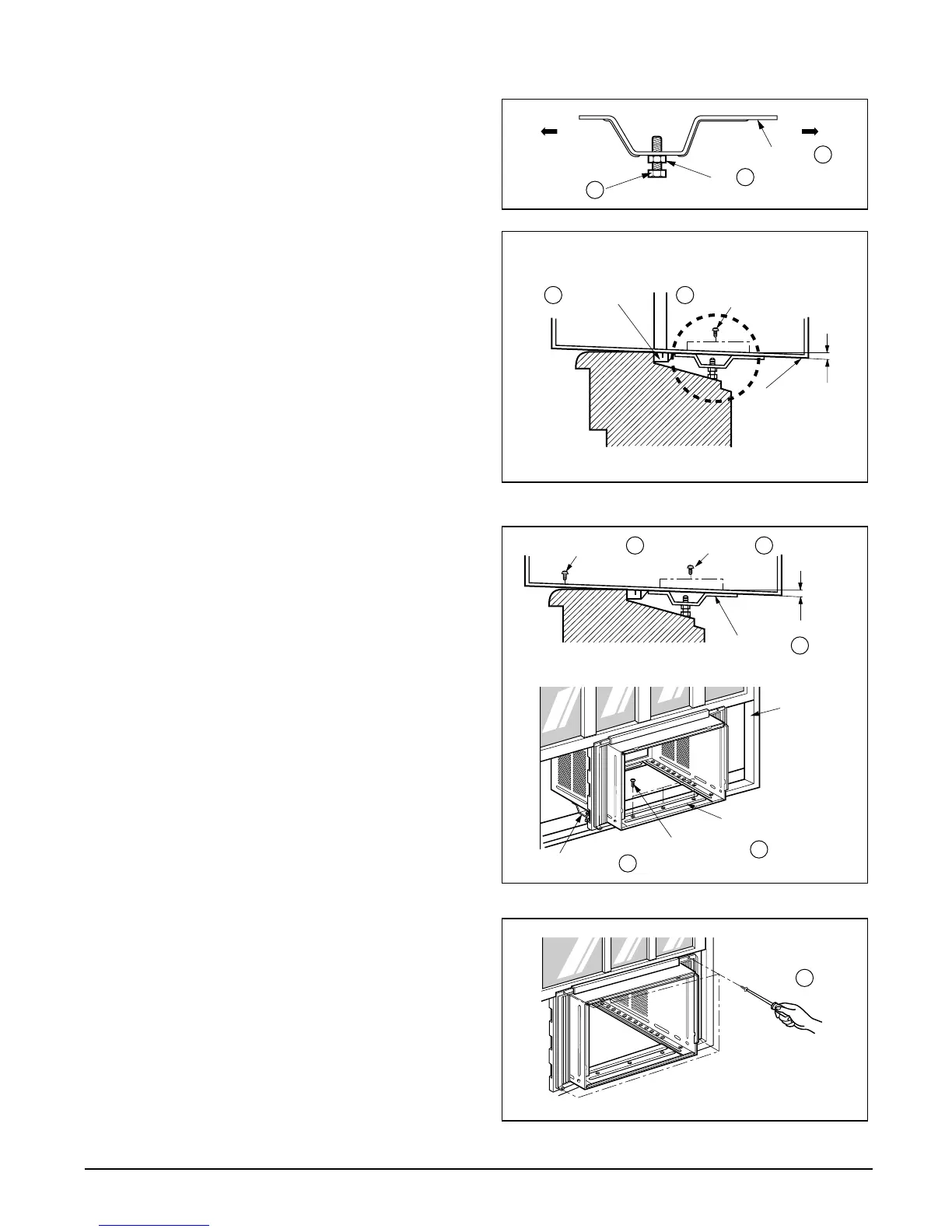

Figure 22
Figure 23
Figure 24
Figure 25
To Next Page
