14
INSTALLATION
The appliance may only be stacked on top of an LG
front load washing machine. Do not attempt to
stack the appliance on any other washing machine,
as it could result in damage, injury or property
damage.
Installation Procedure
• For safety reasons, installation procedure should
be performed by two or more qualified service
personnel.
• The weight of the appliance and the height of the
installation makes the installation procedure too
risky for one person.
• Incorrect installation can cause serious
accidents.
• Do not operate if the appliance is not properly
stacked.
1

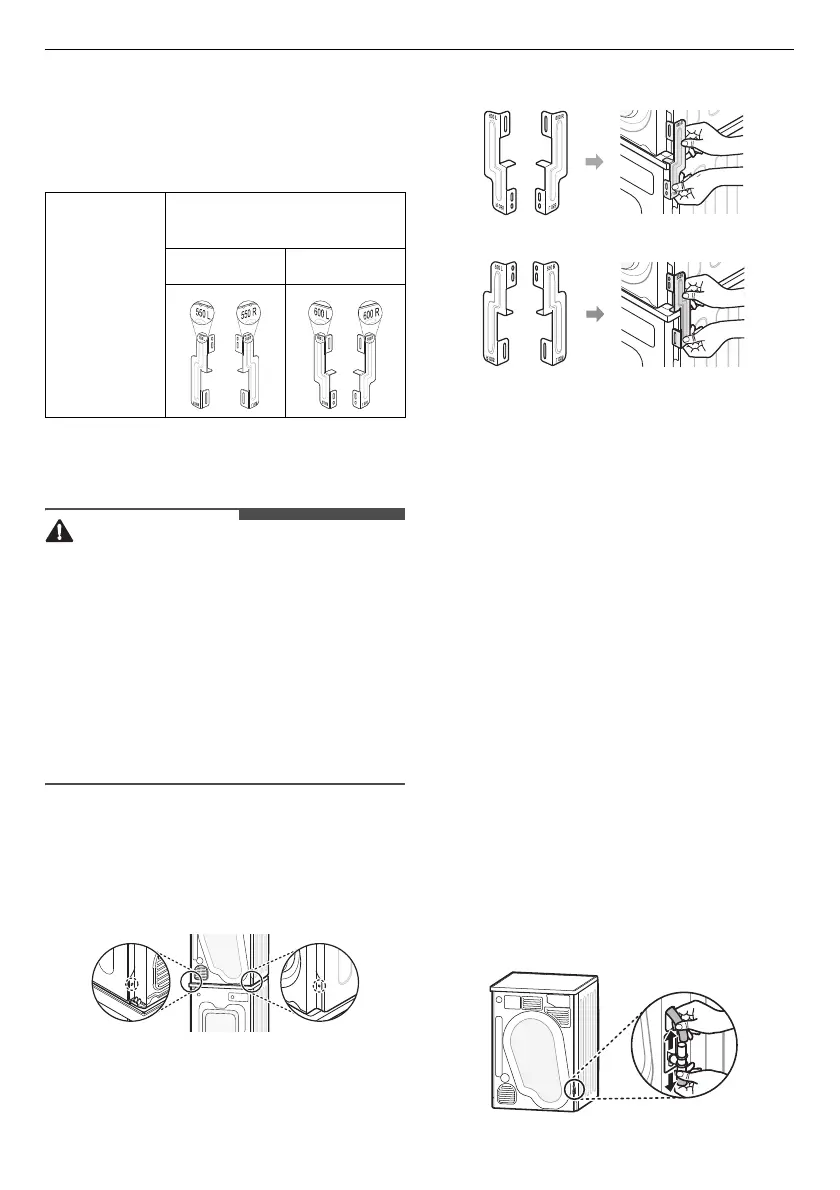

Place the appliance on the top of an LG front
load washing machine.
2
Remove the 2 screws from the bottom of the
rear cover on each side.
3
Align the LG stacking kit holes and the rear
cover holes in a line.
• In case of the top plate size is 600 mm
• In case of the top plate size is 550 mm
4
Fasten the 2 screws that were removed earlier
from the appliance to the stacking kit.
5
Use the 4 screws in the accessory box (16 mm)
to assemble the washing machine rear cover
and stacking kit.
6
The procedure for the opposite side will be the
same.
Installing the Optional Drain
Hose
Normally, condensed water is pumped up to the
water container where water is collected until
manually emptied. Water can also be drained out
directly to a mains drain, especially when the
appliance is stacked on top of a washing machine.
With the connecting elbow or T piece of the mains
drain hose, simply change the water path and re-
route to the drainage facility as below:
1
Separate the anti-backflow lid
a
and the water
container hose
b
from the connecting elbow
or T piece.
Shape and
assembly
direction
Washing Machine Top plate
size
550 mm 600 mm
To Next Page
