INSTALLATION
• For
Type A
, it must be assembled with 550R or
550L on upper part.
• For
Type B
, it must be assembled with 600R or
600L on upper part.
*1 The depth of the washing machine
1
Place the appliance on the top of an LG front
load washing machine.
2
Remove the 2 screws from the bottom of the
rear cover on each side.
3
Align the LG stacking kit holes and the rear
cover holes in a line.
• In case of that the depth of the washing
machine is 550 mm or more and 599 mm or
less
• In case of that the depth of the washing
machine is 600 mm or more and 650 mm or
less
4
Fasten the 2 screws that were removed earlier
from the appliance to the stacking kit.
5
Use the 4 screws in the accessory box (16 mm)
to assemble the washing machine rear cover
and stacking kit.
6
The procedure for the opposite side will be the
same.
Installing the Optional Drain
Hose
Normally, condensed water is pumped up to the
water container where water is collected until
manually emptied. Water can also be drained out
directly to a mains drain, especially when the
appliance is stacked on top of a washing machine.
With the connecting elbow or T piece of the mains
drain hose, simply change the water path and re-
route to the drainage facility as below:
1
Separate the anti-backflow lid
a
and the water
container hose
b
from the connecting elbow
or T piece.
2
Attach the anti-backflow lid
a
to the head of
the connecting elbow or T piece and then
connect the optional drain hose
c
to the

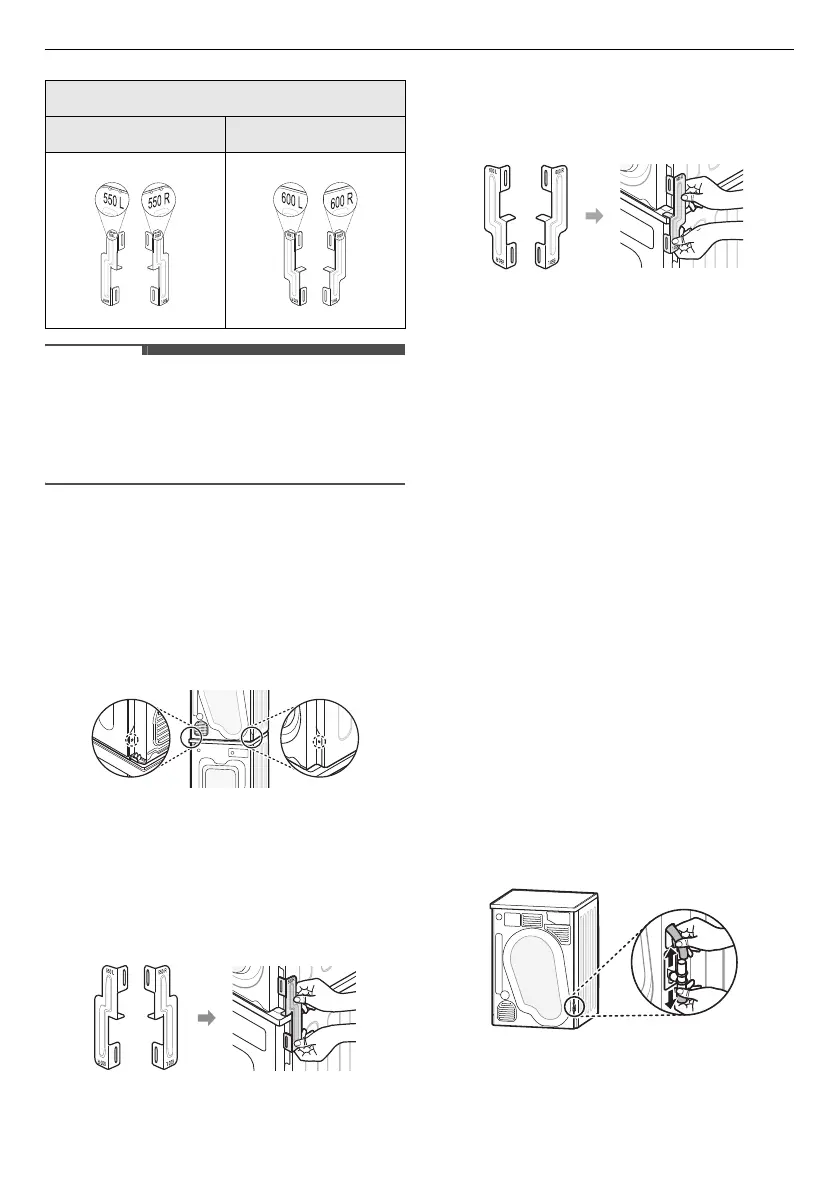

How to align LG stacking kit to the appliance
