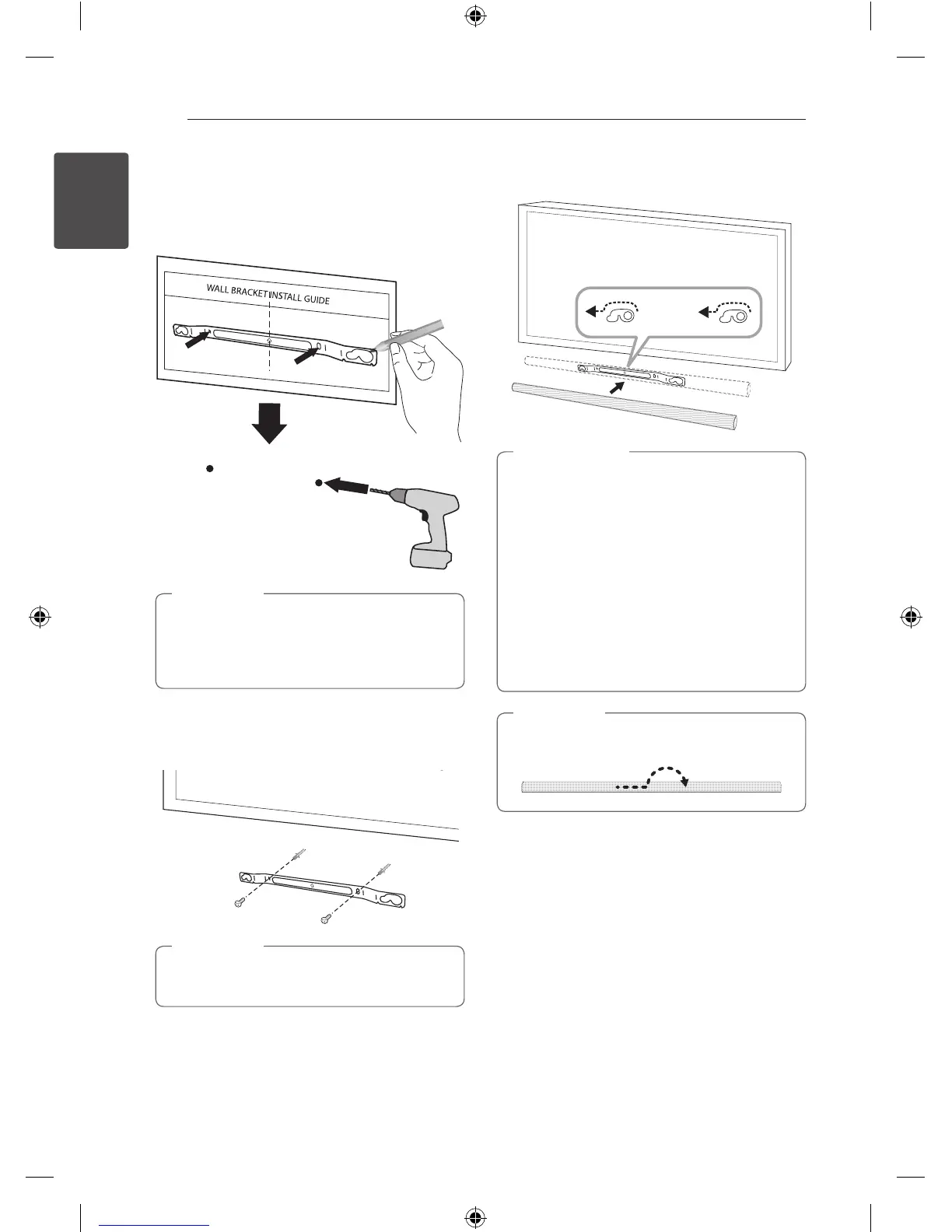

4. When you mount it on a wall (concrete), use the
wall plugs (Not supplied). You should drill some
holes. A guide sheet (WALL BRACKET INSTALL
GUIDE) is supplied to drill. Use the sheet to
check the point to drill.
Screws and Wall Plugs are not supplied for
mounting the unit. We recommend the Hilti
(HUD-1 6 x 30) for the mounting. Please
purchase it.
,
Note
5. Remove the Wall bracket install guide.
6. Fix it with screws (not supplied) as shown in the
illustration below.
TV
Make sure that the arrow mark on the wall
bracket should be facing upwards.
,
Note
7. Hang the main unit onto the bracket as shown
below.
y
Do not install this unit upside down. It can
damage the parts of this unit or be the
cause of personal injury.
y
Do not hang onto the installed unit and
avoid any impact to the unit.
y
Secure the unit rmly to the wall so that it
does not fall o. If the unit falls o, it may
result in an injury or damage to the product.
y
When the unit is installed on a wall, please
make sure that a child does not pull any of
connecting cables, as it may cause it to fall.
>
Caution
Detach the unit from the bracket as shown
below.
,
Note
