LG SJ8S Service Manual

3-17
Copyright © 2017 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
ONE POINT REPAIR GUIDE
SECONDARY UNIT
4. NO SOUND (BLUETOOTH)
4-1. Solution
Replace MAIN board.
4-2. How to troubleshoot (Countermeasure)
1) Please check status of Bluetooth cable connection (at CN501 and BT module).
2) Please check 3.3 V (at pin10 of CN501).
If 3.3 V is OK, please check BT_DAT, BT_CLK, BT_RST, UART_RX, UART_TX (pin1, 2, 4, 6, 9).
If no signal, please replace MAIN board.

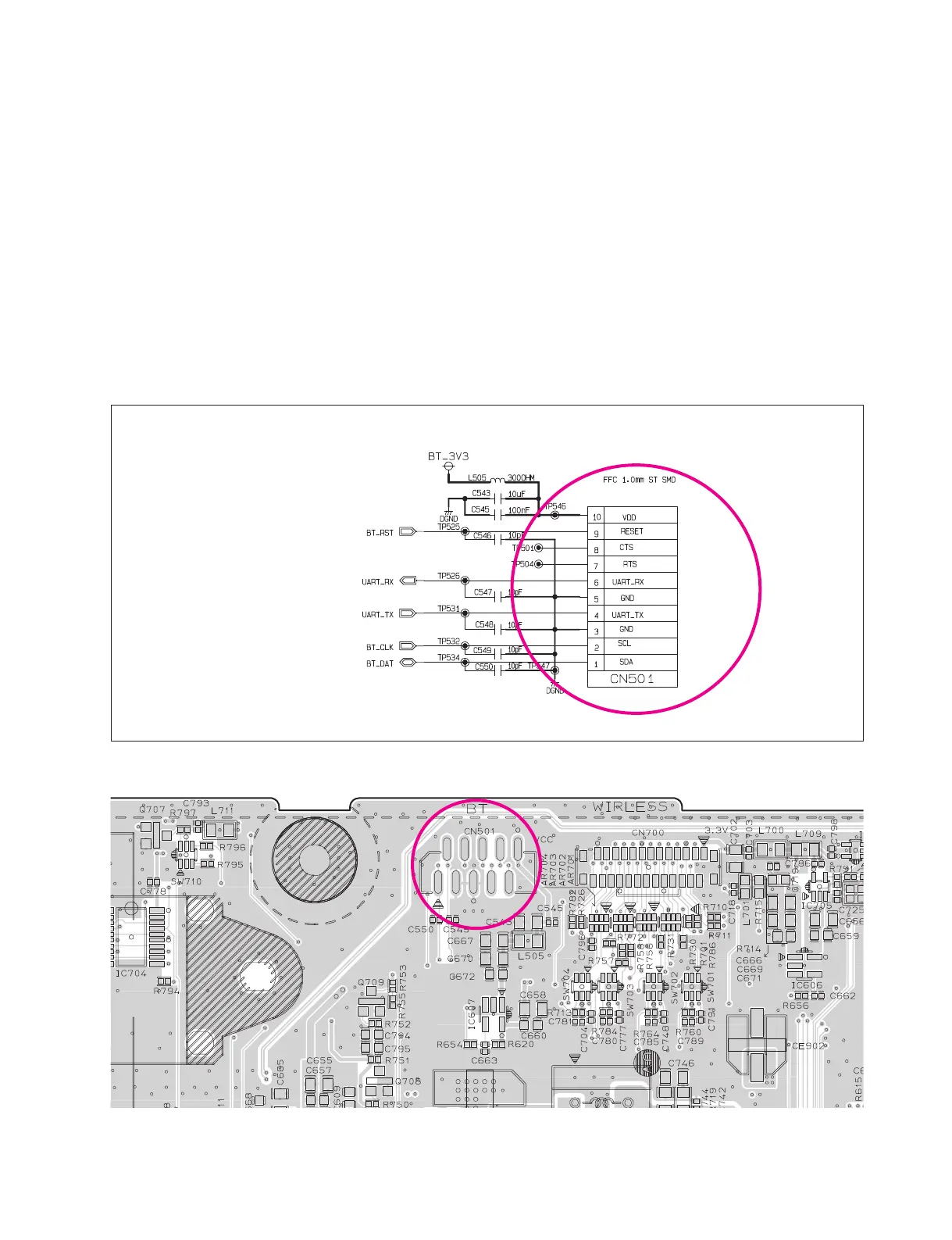

4-3. Service hint (Any picture / Remark)
< MAIN board top view >
CN501
CN501
CN501
CN501




BLUETOOTH
