DISASSEMBLY INSTRUCTIONS
1
1
2
3

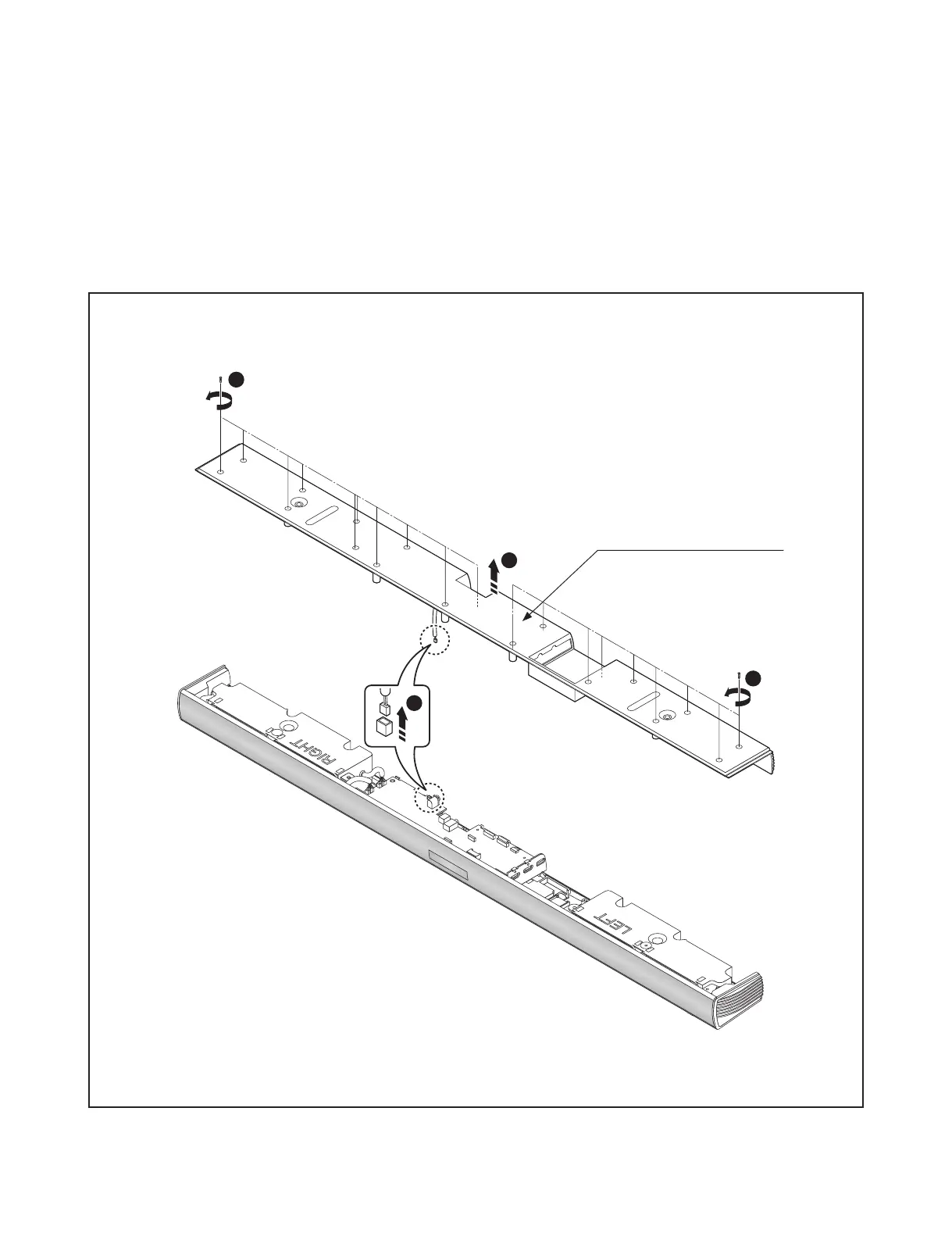

Figure 1-1
1. HOW TO DISASSEMBLE THE MAIN UNIT
※ Before begin, position the Main Unit upside down.
1-1. Case Bottom Assembly
1) Remove the 19 screws.
2) Remove the Case Bottom Assembly.
3) Remove the 2p harness cable (key) connected to the MAIN PCB Assembly.
Case Bottom Assembly
KEY
