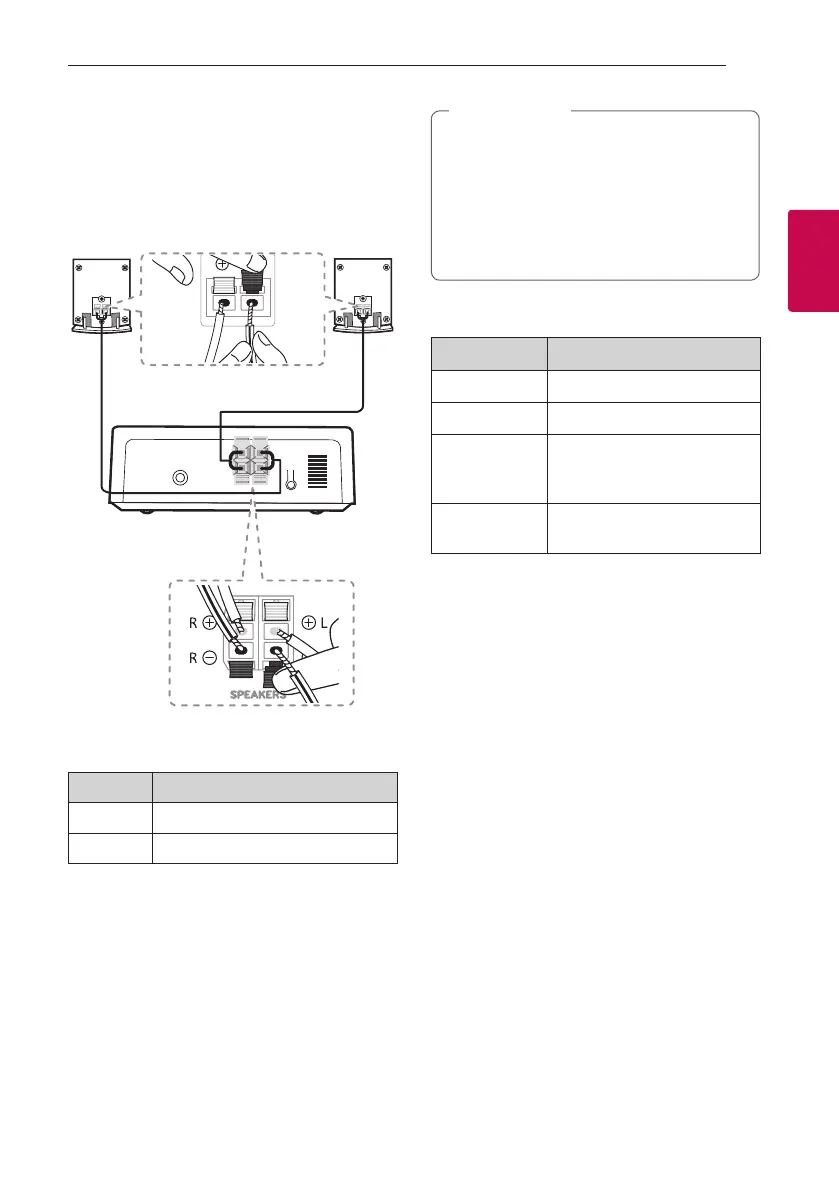

Rear speakers connection
Connecting the rear speakers
1. Connect the black stripe wire to the terminal
marked - (minus) and the other end to the
terminal marked + (plus).
2. Connect the wireless receiver and the rear
speakers (left, right) with the speaker cables.
Colour Position
Blue Rear left
Grey Rear right
y
Use the speaker supplied with this unit
only. Using any other speaker may cause
malfunction.
y
Be sure to match the speaker cable to the
appropriate terminal on the components: +
to + and – to –. If the cables are reversed, the
sound will be distorted and will lack bass.
>
Caution
LED indicator of wireless receiver
LED Colour Status
Green (Blink)
The connection is trying.
Green
The connection is completed.
Red The wireless receiver is
in standby mode or the
connection is failed.
Off (No display) The power cord of wireless
receiver is disconnected.
