14 INSTALLATION
fasteners and tightening the set screws b
with a 1/8 in. Allen wrench.

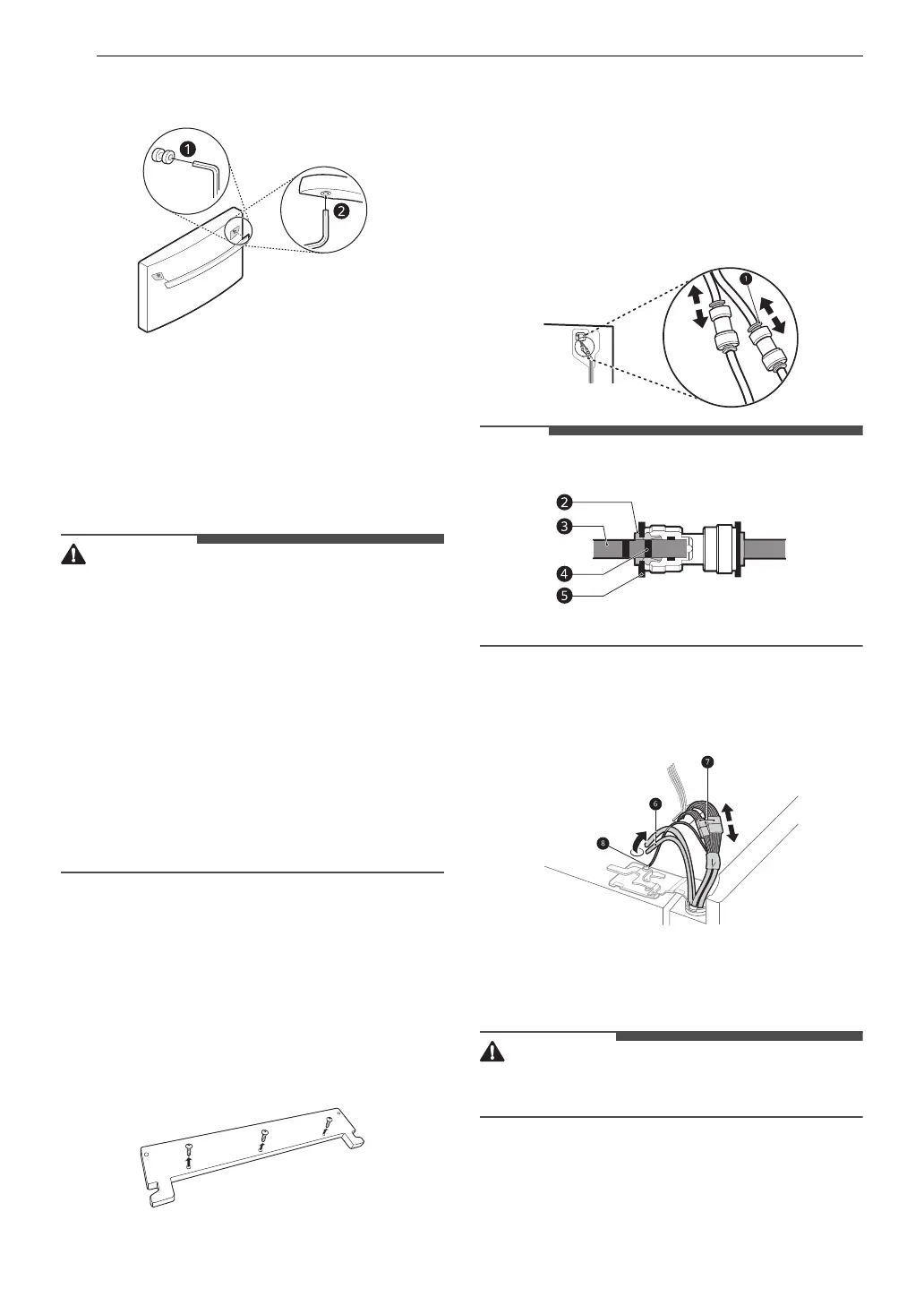

Removing/Assembling
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors and drawers.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors and drawers.
• Do not hold the handle when removing or
replacing the doors and drawers as the handle
may come off.
• Tools Needed
- Phillips screwdriver
- Flat-head screwdriver
Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the refrigerator. Lift the hook (not visible),
located at the bottom of the front side of the cover
with a flat-head screwdriver.
Removing the Left Refrigerator
Door
1 The water supply is connected to the upper
right part of the rear surface of the
refrigerator. Remove the clip in the joint area.
Hold the water supply connection and gently
push the collet
a to detach the water supply
line as shown.
NOTE
• Disassembling/Assembling the Water Lines
b Collet c Tube d Insert line e Clip
2 Pull out the water supply lines f. Disconnect
all the wire harnesses
g . Unscrew the
ground wire h.
3 Rotate the hinge lever i counterclockwise.
Lift the top hinge
j free of the hinge lever
latch k.
CAUTION
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
