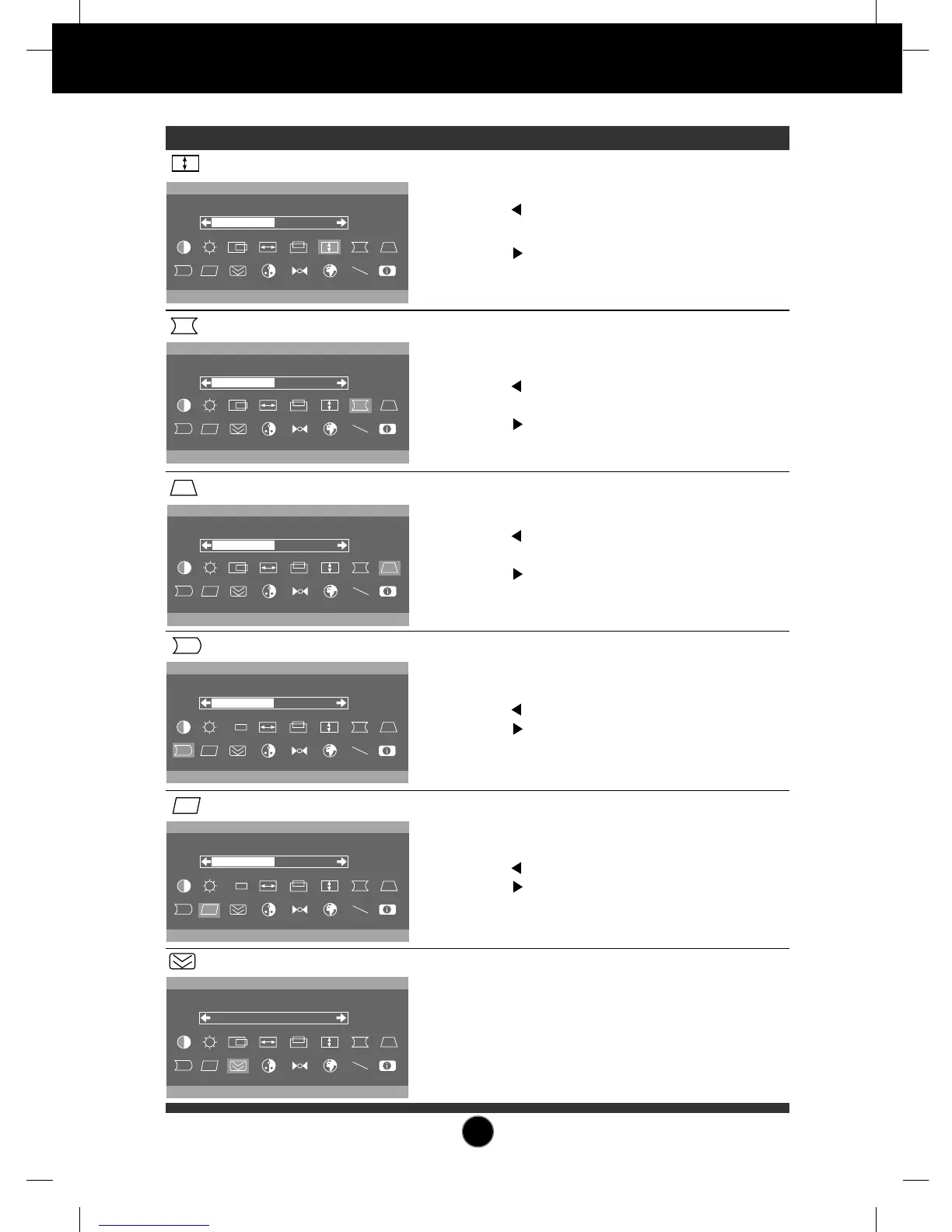

On Screen Display(OSD) Selection and Adjustment
OSD Adjust Description
31.4kHz/70Hz
V SIZE
50
U
31.4kHz/70Hz
PINCUSHION
50
U
31.4kHz/70Hz
TRAPEZOID
50
U
31.4kHz/70Hz
PIN BALANCE
50
U
31.4kHz/70Hz
PARALELOGRAMO
50
U
To correct the bowing in and out of the
image.
Curves the image's edges
inwards.
Curves the image's edges
outwards.
To correct the balance of both sides
bowing.
Curvature of the sides to the right.
Curvature of the sides to the left.
To correct geometric distortion.
Makes the screen image narrower
at the top.
Makes the screen image wider at
the top.
This control adjusts for a skewing of the
screen image.
Tilts the screen image leftward.
Tilts the screen image rightward.
To adjust image height.
Decreases the size of the screen
image.
Increases the size of the screen
image.
V SIZE
PINCUSHION
TRAPEZOID
PIN BALANCE
PARALLELOGRAM
31.4kHz/70Hz
V MOIRE
0
U
Reduce vertical moire when
interference patterns of dark steady
wary lines appear on your screen.
The moire adjustments may affect the
focus of the screen.
V MOIRE
