C
onnecting Hose
Rubber packing
Rubber packing
Fixed sticker
screw
Guide plate
Connector
Connector
Fixed sticker
Middle
Connector
Middle
Connector
Water Supply Hose
Pressing rod
Pressing handle
Connector
Middle
connector
Fixed Sticker
Pressing Handle
Pressing Rod
Water Supply Hose

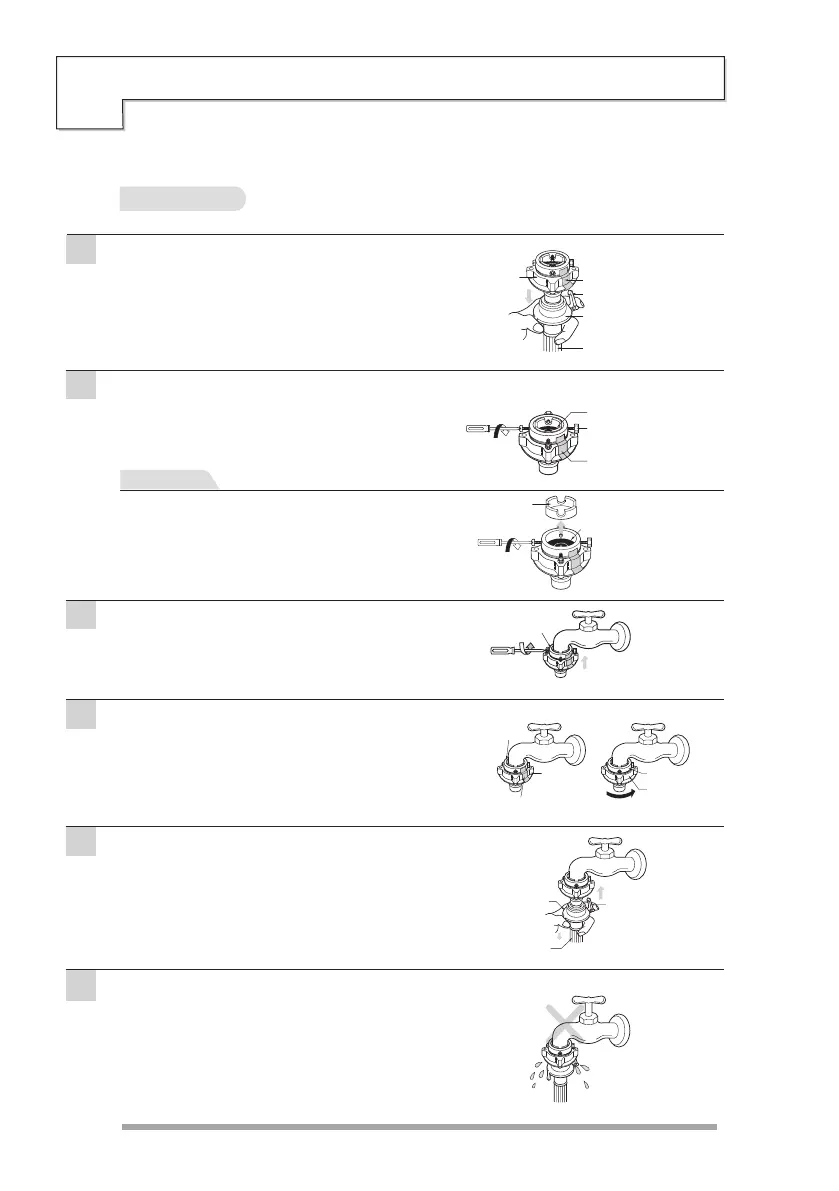

Separate Middle connector from Water Supply Hose
Separate
Middle
connector from the
Water
Supply Hose by pulling the Pressing Rod and the
Pressing Handle that is
attached to the
Water
Supply Hose
.
Loosen the fixed nuts to connect the connector to the tap
Untighten the
screw of the
connector so that the
tap can be placed in the middle.
Fixing Connectors to the Tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws
.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the
Upper
and Middle
Connectors. Tighten the
connectors
by holding one
connector and twist middle
connector to the right.
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the
Water Supply
Hose
which was
separated from middle
connector
(refer to Step1) and then join it to the middle
connector.
If the tap diameter is too large or is
square,
untighten the 4 screws
and remove the guide
plate. Then follow step1
.
In case tap is too large.
NOTE
Normal Type
(Normal tap without thread & one touch type inlet hose.)
1
2
3
4
5
Check for water leakage
After connecting the
If the
connection leaks, close the tap and start
again from step 1.
If you skip step 1, water leakage may occur.
6
Water Supply Hose
other end of hose to machine open the tap to
check for any water leakage.
35
