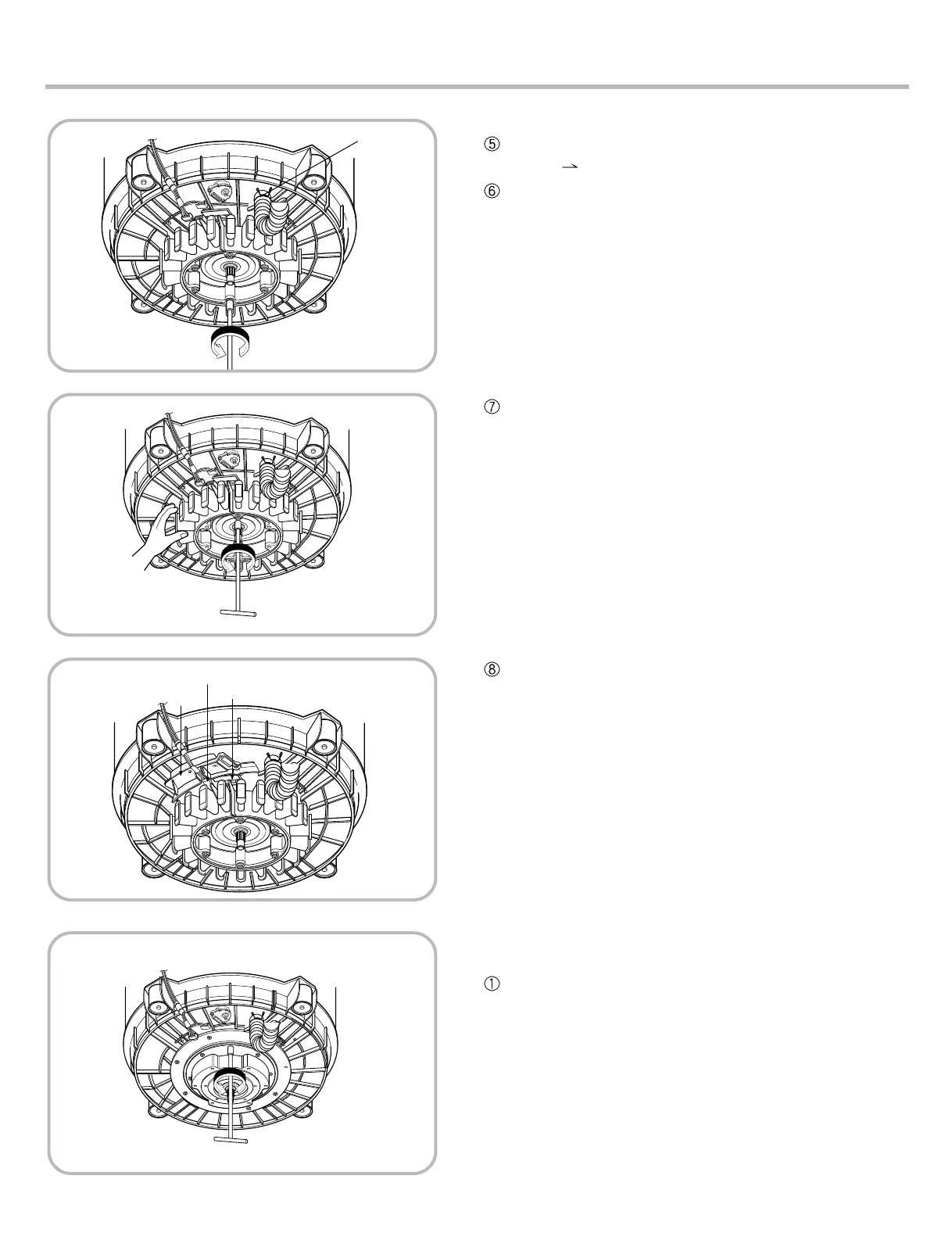

Loosen the 6 fixing screws on the stator.
(Lower
upper position screws)
Check the direction of SNAP RING.
(The handle of snap ring is toward to rotor and stator.)
Preventing fallen the stator, tighten with one hand and
then loosen the last screw.
For assembly take care lead wire's state, it produce a
noise and cut attach the rotor.
Loosen 14 Fixing screws on the Bearing Housing ASM
and pull up it.
To Next Page
