(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)
One Touch Type
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water
Supply Hose by pulling the Pressing Rod and
the Pressing Handle that is attached to the
Water Supply Hose while pressing them.

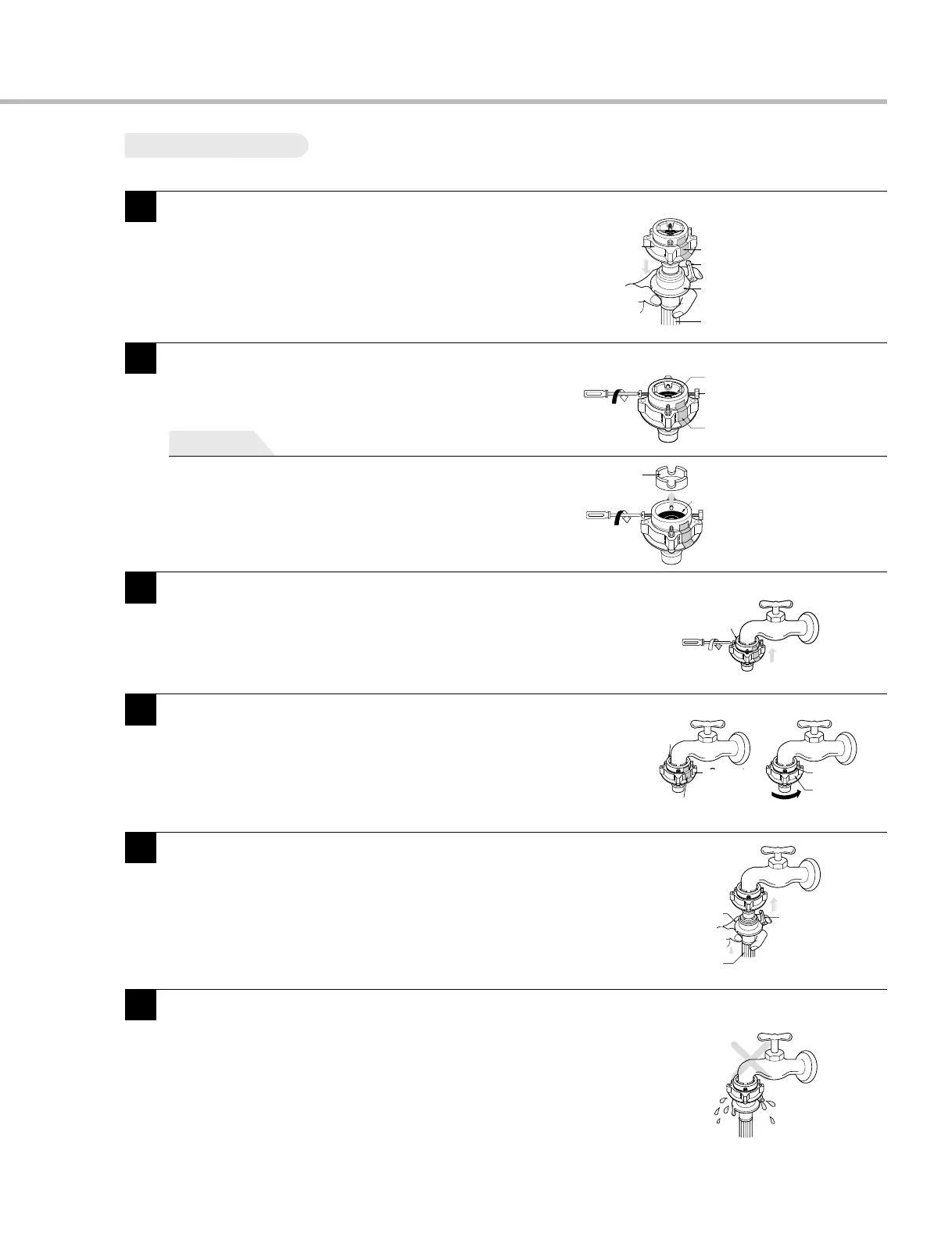

1
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in tight
contact with the tap.
Then tighten the 4 screws.
3
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper
and Middle Connectors.
Tighten the connectors by holding one connector
and twist middle connector to the right.
4
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water
Supply Hose which was separated from middle
connector(refer to Step1) and then join it to
the middle connector.
5
Checking the water leakage
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and start
again from step 1.
If you skip step1, it may cause water leakage.
6
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can
be placed in the middle.
In case the tap is large.
If the tap diameter is too large or is square,
open the 4 screw and take out the guide
plate and follow step 1.
2
Fixed Stiicker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Rubber packing
Screw
Fixed sticker
Guide plate
Connector
Connector
Rubber packing
Connector
Middle
Connector
Pressing handle
Middle
Connector
Fixed sticker
Pressing rod
Water Supply Hose
To Next Page
