38
Hall Sensor
Stator Housing

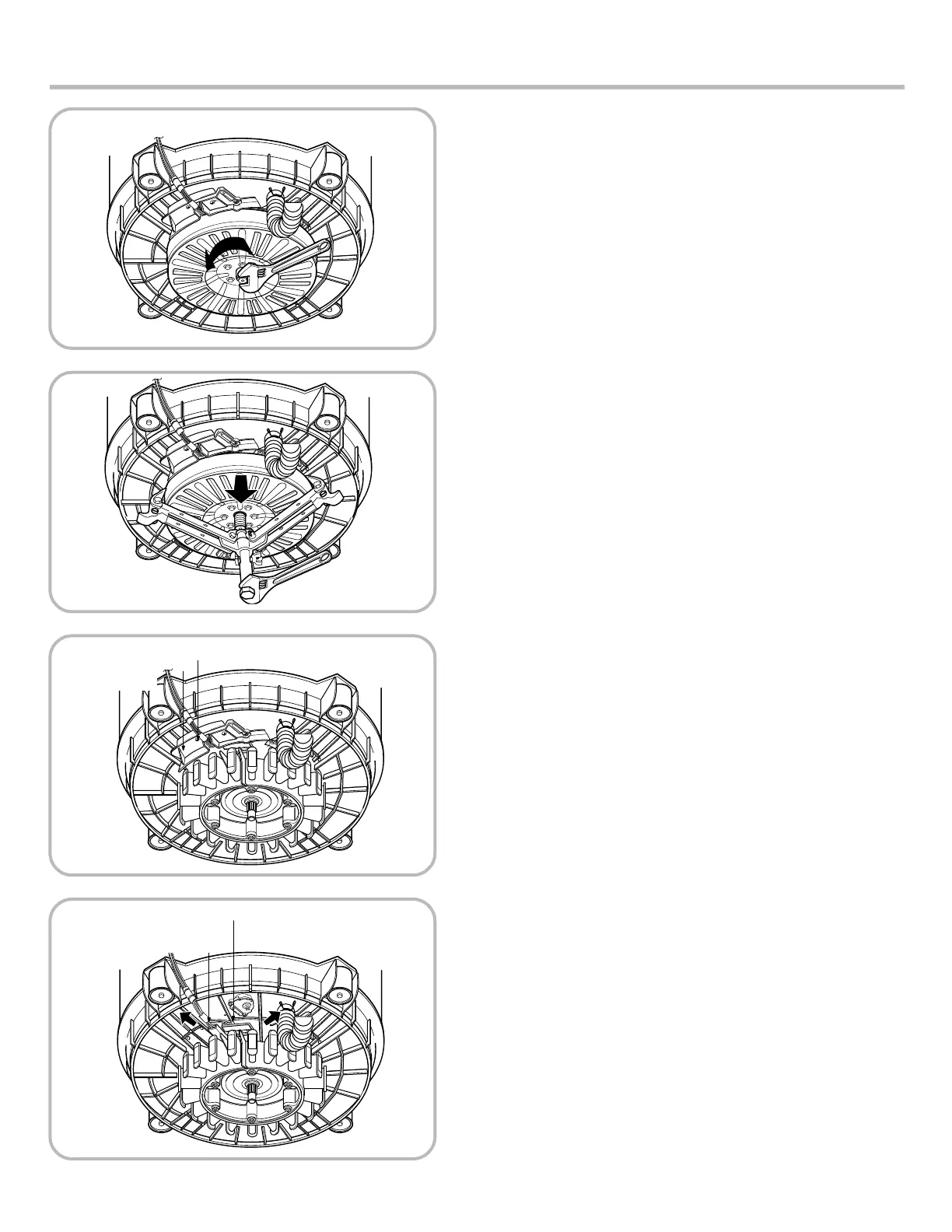

6) Replacement of Rotor & Stator
① Disassemble rotor nut with boxer(M18) or
spaner.
(※ In assembled, the force is over than 200kgf.
cm)
② Disassemble rotor, pull out the rotor as shown
the gure.
③ Disconnect xing screw and disassemble the
water guide.
④ Before disassemble stator,disconnect the hall
sensor and stator housing.
To Next Page
