39

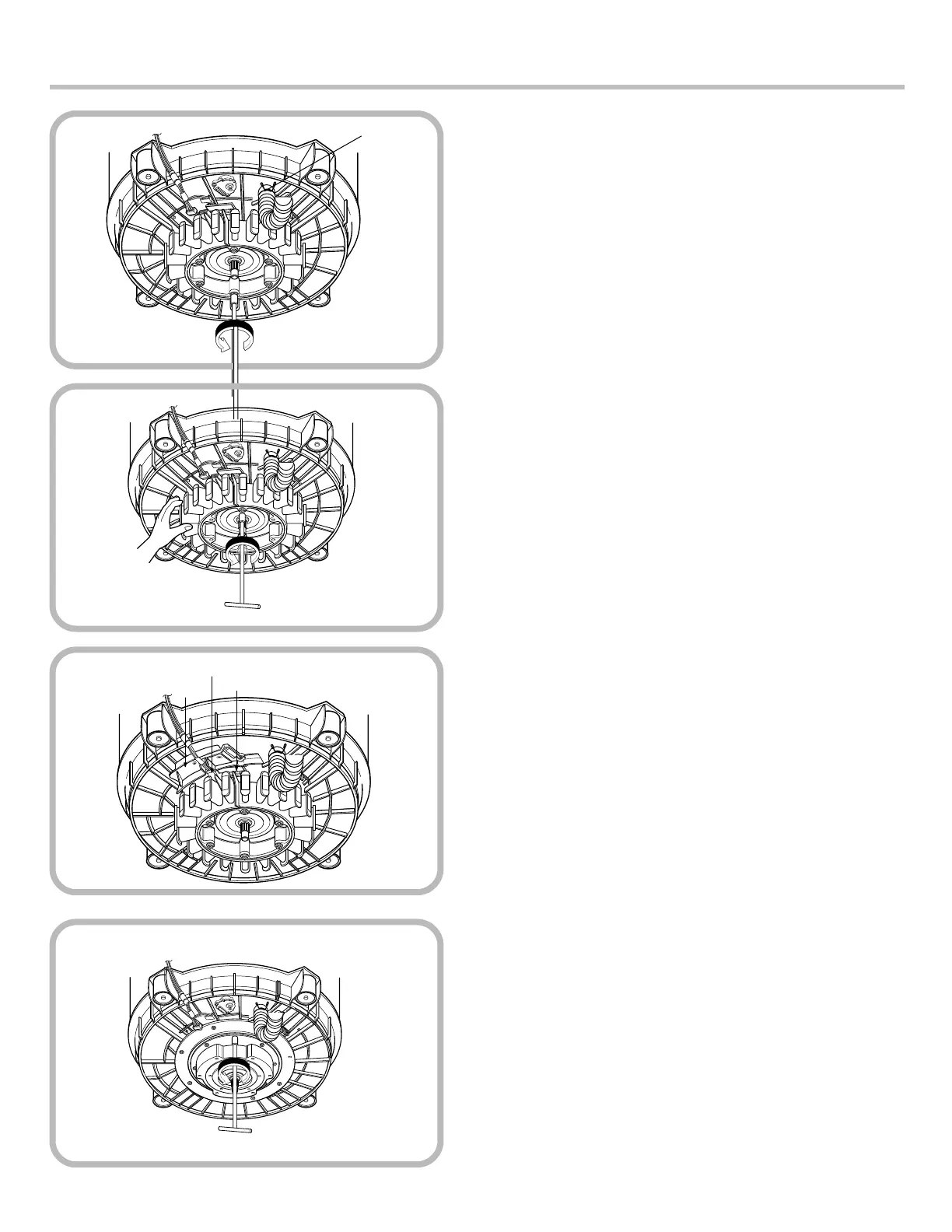

⑤ Loosen the 6 xing screws on the stator.
(Lower upper position screws)
⑥ Check the direction of SNAP RING.
(The handle of snap ring is toward to rotor and
stator.)
⑦ Preventing fallen the stator, tighten with one
hand and then loosen the last screw.
⑧ For assembly take care lead wire's state, it
produce a noise and cut attach the rotor.
7) Replacement of Bearing housing
asm
④ Loosen 14 Fixing screws on the Bearing
Housing ASM and pull up it.
SNAP RING.
Hall Sensor
Stator Housing
Water Guide
To Next Page
