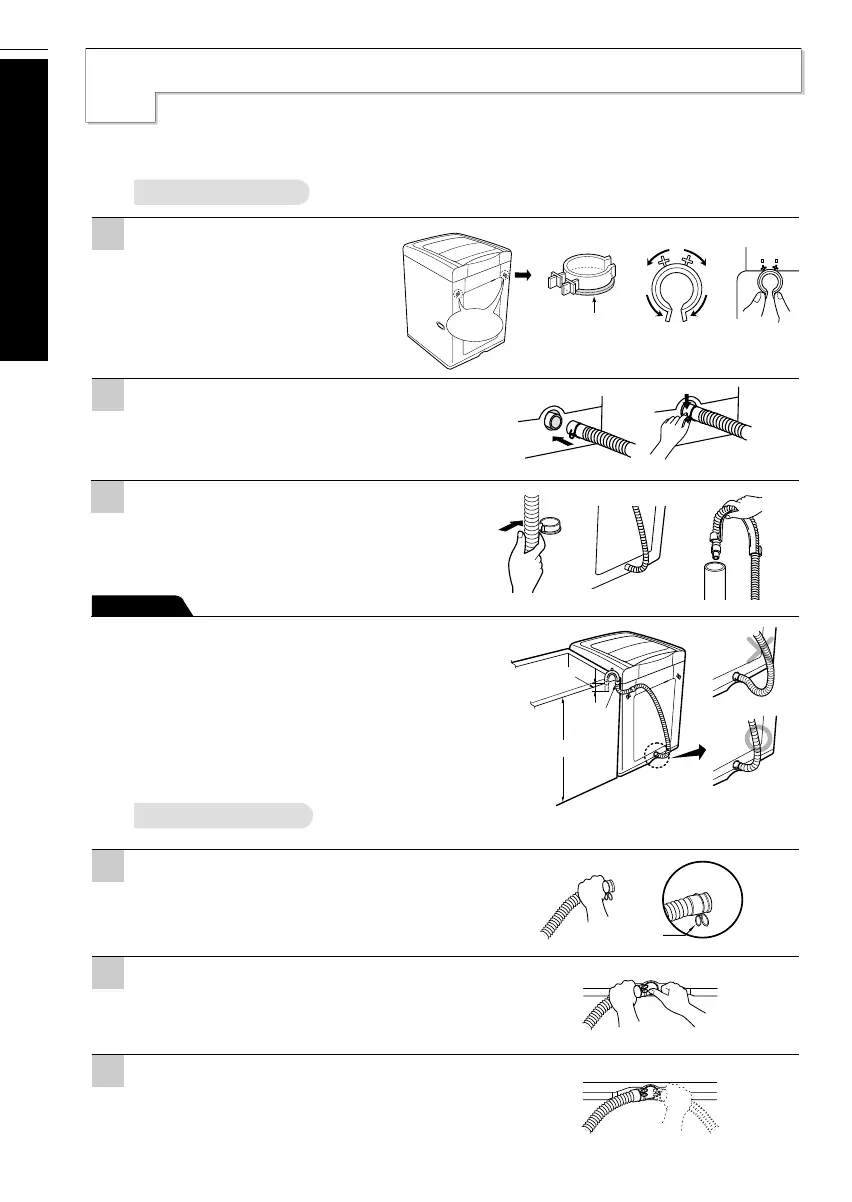

onnecting Drain Hose
C
30
Installation
Before connecting Drain Hose, check your Drain Hose model and choose the correct
instructions.
Insert the plastic holder into hole
in the back side toward the stand
pipe direction. Adjust the holder
by pressing the both sides to
push in.
Pump Model
0.9~1.2m
Within 50mm
Hose
Guide
Before connecting
Ensure that the hose clip is set as indicated here.
Connect the Elbow Hose
Push the elbow hose toward the body of the
washing machine.
Non-Pump Model
Place the Drain Hose
To change the direction of the hose, pull out the
elbow hose and change the direction.
Repeat Step 2.
Clip
1
Push the end part of the drain hose in the
outlet of the drain pump and tighten with
the clamp to fit in.
2
Put the other end of the drain hose over the
standpipe or wash tub. To prevent the hose that
is connected with pump hanging down, push the
hose into the holder to fix.
3
1
2
3
• The outlet should be placed 0.9~1.2m higher than the floor.
• To prevent siphon, the drain hose should not be extended more
than 50mm from the end of the hose guide.
• The hanging down drain hose might cause poor drainage.
Caution
To Next Page
