34

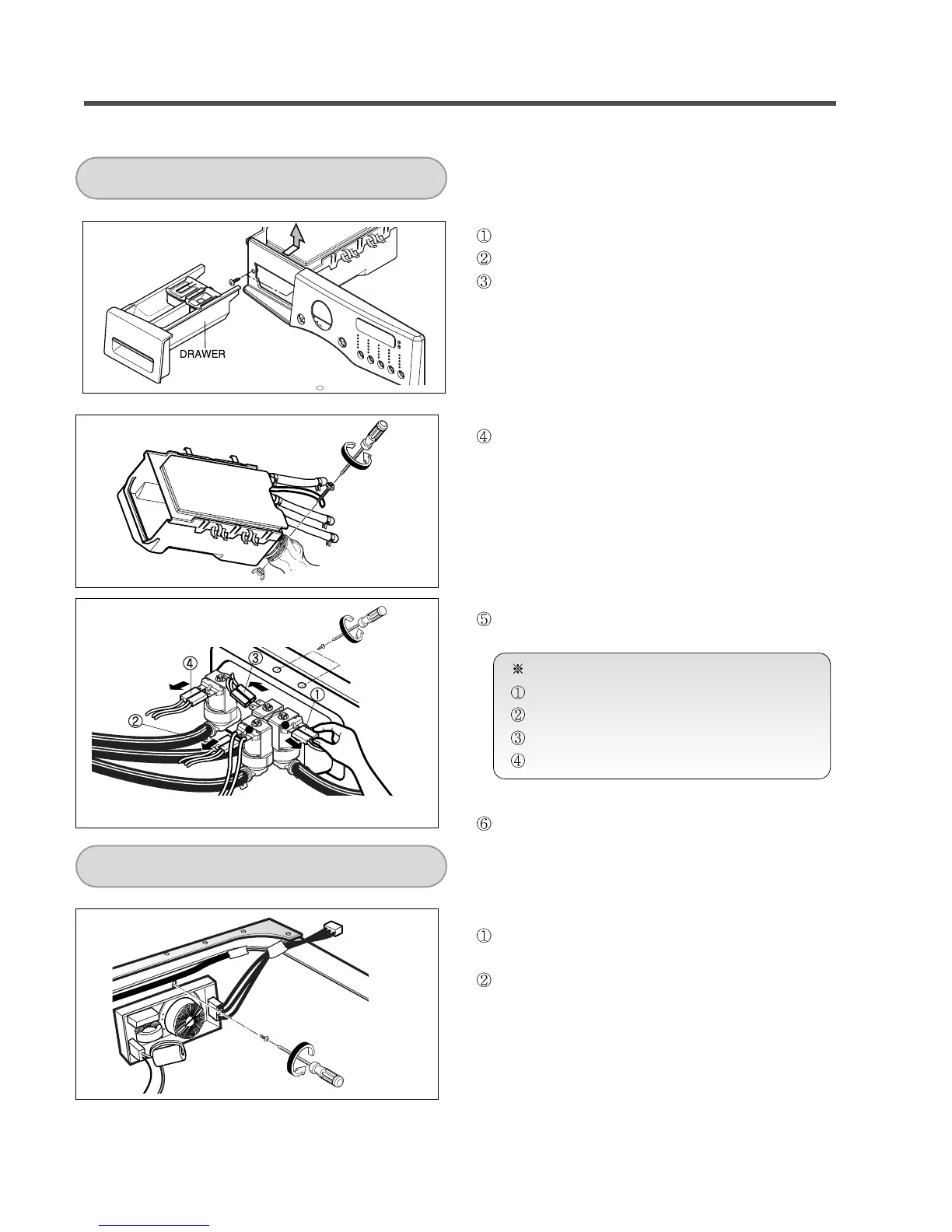

Disassemble the top plate assembly.
Pull out the drawer.
Push out the DISPENSER ASSEMBLY after
unscrew 2 screws.
Unscrew the nut at the lower part of the dispenser.
Disassemble the 4 connectors from the valves.
Unscrew 2 screws from the back of the cabinet.
Disassemble two (or three) connectors from
the NOISE FILTER.
Unscrew a screw from the TOP BRACKET.
Wire Color
Blue Housing (OR-BK)
White Housing (WH-BK)
Blue Housing (GY-BK)
Red Housing (BL-BK)
DISPENSER ASSEMBLY
NOISE FILTER
To Next Page
