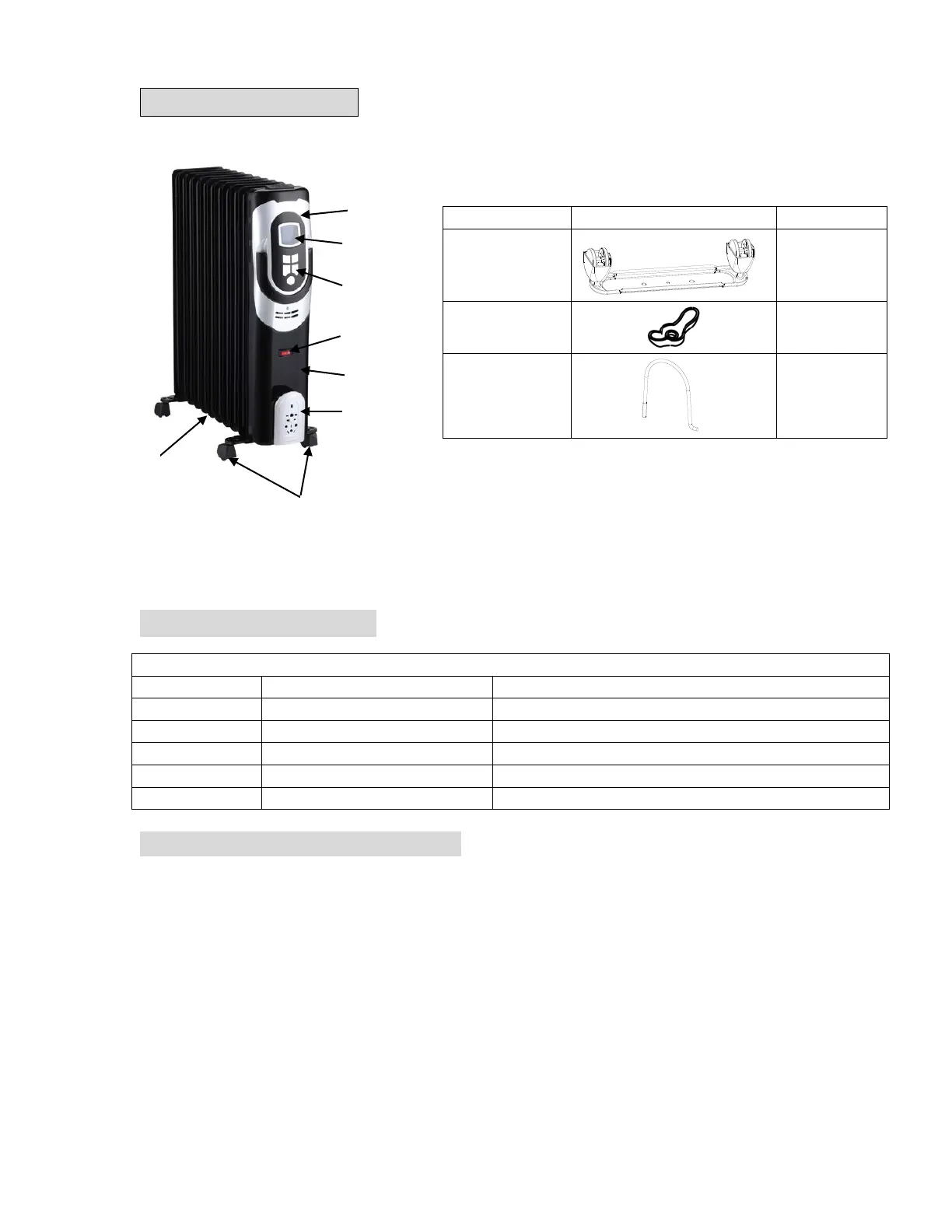

2. Parts Identification
1. Castor Wheels 2. Button 3. LCD Display Screen 4. Power Switch
5. Control Panel 6. Front Cover 7. Radiator Fins 8. Cord Storage
Mode and Technical data
Safety Control (Thermal Cut-Out)
This model has two levels of over heat protection
1. Automatic thermal cut-off
Switches off the heater in the event of overheating or malfunction and resets once the
temperature drops to a normal level.
2. Thermal fuse
In the event that the automatic thermal cut-off fails to operate the heater has a further
safety device. This is a non-resettable switch which will require the unit be returned to
an Approved Service Agent for replacement.
If overheating or malfunctions continue, return the heater to an Approved Service
Agent for examination.
SPECIFICATIONS
Model No.
Rated Voltage & Frequency
Wattage
YAA02E -5
220-240V~, 50 Hz
1000W(I+II);600W(II);400W( I )
YAA02E -7
220-240V~, 50 Hz
1500W(I+II);900W(II);600W( I )
YAA02E -9
220-240V~, 50 Hz
2000W(I+II);1200W(II);800W( I )
YAA02E -11
220-240V~, 50 Hz
2500W(I+II);1500W(II);1000W( I )
YAA02E -13
220-240V~, 50 Hz
2500W(I+II);1500W(II);1000W( I )
1
5
2
3
4
6
8
Castor Wheel Assembly
Description
Drawing
Quantity
Castor
Wheels
2
Wing Nut
2
Arc-shaped
Bracket
2
