Life Optimo OP5 UNI - Typical Installation

Page 4
2
OP3 - OP3L - OP3 UNI - OP3L UNI - OP324 - OP324 UNI OP5 - OP5L - OP5UNI - OP5L UNI - OP524 - OP524
2,00 800 3,00 500
2,50 600 4,00 400
3,00 400 5,00 300
E
OP3= 745 mm
E
OP5= 895 mm
70

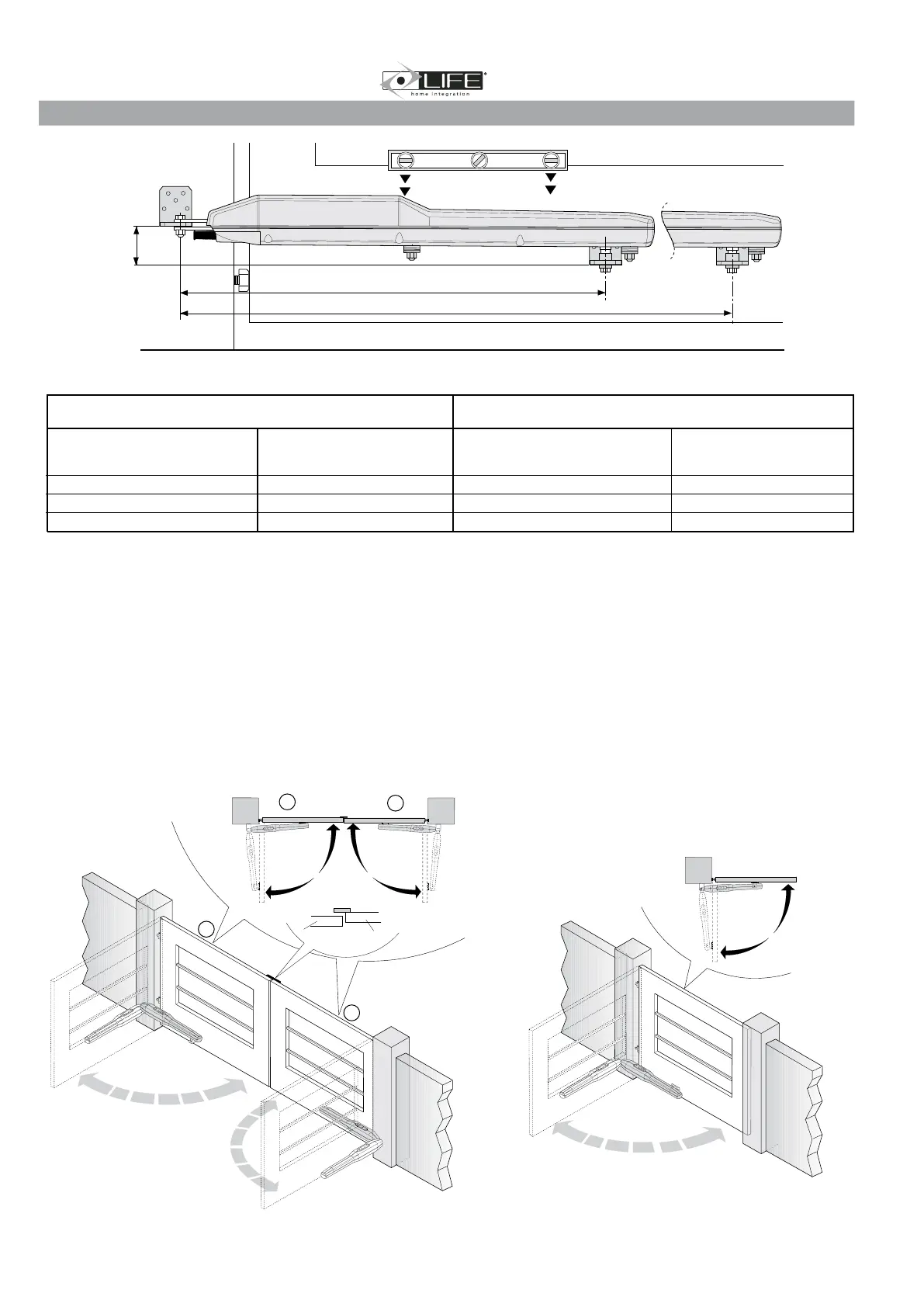

2.2 Typical installation
A) TWO-LEAF SYSTEM

Leaf 1:
Leaf 2:
B) ONE-LEAF SYSTEM
Leaf 1: the gate’s only leaf.
2
1
1
2
1
2
A
B
Max leaf length (m) Max leaf weight (kg)
Max leaf length (m)
Max leaf weight (kg)
