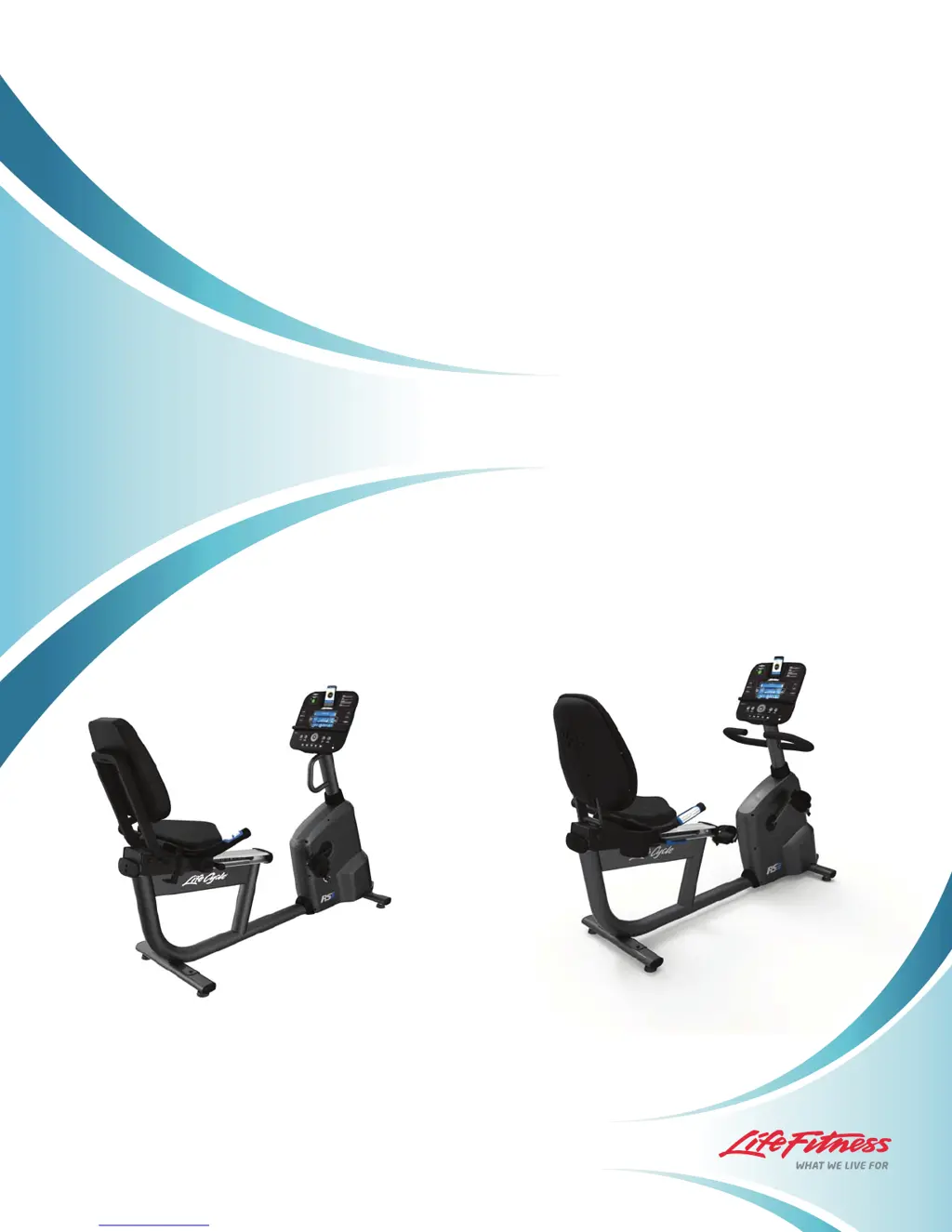

RS1 / RS3 RECUMBENT LIFECYCLE® EXERCISE BIKES
OWNER’S MANUAL
M051-00K101-0001 Rev A

Table of Contents

Questions and Answers

  • B
    Bobby PerezAug 15, 2025
    How to troubleshoot power issues on LifeFitness Exercise Bike?
    • D
      douglasbrooksAug 15, 2025
      If your LifeFitness Exercise Bike has no power, ensure the power cord is fully plugged into both the back of the bike and the wall socket. Also, confirm the power cord is correctly seated in the back of the product. It is possible that the bike is in “Energy Saver Mode”. Press the “Energy Saver” button to check if the console turns on. Check all customer assembly connections to ensure they are working properly. Unplug and re-plug each connection to verify, and check for any cables pinched during assembly.
  • R
    Robert EvansAug 18, 2025
    Why is the wireless heart rate not working on my LifeFitness RECUMBENT LIFECYCLE RS3?
    • A
      Alexander BennettAug 19, 2025
      If the wireless heart rate function on your LifeFitness Exercise Bike isn't working, first check the Settings Menu to ensure that WIRELESS HR is turned ON. Poor contact between the telemetry heart rate strap and your skin can also cause issues. Electrical interference from appliances or fluorescent lights might interfere with the telemetry heart rate strap; try moving the bike or appliances. Finally, the battery in the Heart Rate Telemetry Strap (CR2032 - 3V) may need replacing.
  • D
    Deborah JohnsonAug 22, 2025
    What to do if contact heart rate sensors are not reading correctly on LifeFitness RECUMBENT LIFECYCLE RS3 Exercise Bike?
    • N
      Natalie HarrisAug 22, 2025
      If the contact heart rate sensors on your LifeFitness Exercise Bike are not reading correctly, make sure you grasp the sensors firmly and keep your hands still. If the reading seems unusually high or low, remove your hands until the heart rate disappears. To improve contact, dry your hands to prevent slipping, apply both hands to all four sensors, grasp firmly, apply constant pressure, and allow extra time for the heart rate to display.
  • M
    Marvin BrowningAug 26, 2025
    What to do if I can't save workout on USB stick on LifeFitness RECUMBENT LIFECYCLE RS3 Exercise Bike?
    • C
      Crystal SandovalAug 26, 2025
      If you receive an 'UNABLE TO SAVE SEE MANUAL' message when saving a workout to a USB stick on your LifeFitness Exercise Bike, the console might not be recognizing the USB stick. Try unplugging and re-plugging the USB stick. It's also possible that the USB stick is full or is not compatible with the product; try using a different USB stick.
  • C
    Cathy LynnAug 28, 2025
    What to do if “OFF” is displayed on LifeFitness RECUMBENT LIFECYCLE RS3 Exercise Bike console?
    • C
      Clarence NelsonAug 28, 2025
      If “OFF” is displayed in the LEVEL window on the console of your LifeFitness Exercise Bike, turn the unit off and then on again. If power cycling the product does not resolve the issue, it indicates a problem with the resistance system.
  • D
    Dr. Margaret BurnsAug 31, 2025
    How to fix clicking noise when pedaling on LifeFitness Exercise Bike?
    • M
      Matthew ThomasSep 1, 2025
      If you hear a clicking noise while pedaling your LifeFitness Exercise Bike, use the provided wrench to ensure the pedals are assembled as tightly as possible.
  • J
    Jennifer McguireSep 4, 2025
    Why does the seat wobble on my LifeFitness RECUMBENT LIFECYCLE RS3 Exercise Bike and how to fix it?
    • R
      Rebecca HarrisSep 4, 2025
      If the seat wobbles on your LifeFitness Exercise Bike, the seat carriage can be adjusted. If the seat does not slide freely, or rocks excessively, use a wrench to loosen the jam nut on either side of the seat carriage. To correct excessive rocking, tighten the adjustment roller on the inside of the carriage until snug, but do not overtighten, then tighten the lock nut while holding the roller in place. Repeat on the other side. If the seat does not slide freely, loosen the adjustment roller until it can move freely, but do not excessively loosen, then tighten the lock nut while holding the roller in place. Repeat on the other side.
  • S
    smithwendySep 7, 2025
    How to tighten loose mesh back material on LifeFitness RECUMBENT LIFECYCLE RS3 seat?
    • D
      Dana SanchezSep 8, 2025
      If the mesh back material is loose on your LifeFitness Exercise Bike seat, the straps holding the seat mesh to the seat frame need tightening. Remove the four screws holding the rear plastic seat cover with a Phillips screwdriver. Identify the loose straps and remove their ends from the tension clip loops. Tighten each strap by pulling it opposite the clip loop direction, tension all straps as needed, and then reinstall the seat cover.
  • H
    Hector HarrisSep 12, 2025
    What does 'Low Battery' message mean on LifeFitness RECUMBENT LIFECYCLE RS3 Exercise Bike console?
    • R
      rburnsSep 12, 2025
      The “Low Battery” message on your LifeFitness Exercise Bike console (Track+ Console only) indicates the internal battery, which maintains the real-time clock when unplugged, is low. This battery is only necessary if you use the Life Fitness LFconnect website. If you do not use the website, replacing the battery is unnecessary. The battery type is CR1632 (3V).

Summary

FCC Warning - Radio and Television Interference

Important Safety Instructions

RS1; RS3 Exercise Bike Overview

Initial Setup

Placement Guidelines

Specifies optimal bike placement and required clearance for safe and effective use.

Stabilizing the Exercise Bike

Instructions on leveling the bike by adjusting stabilizing feet to ensure stability during operation.

Seat Adjustment

Guidance on adjusting the seat for proper user posture and efficient leg muscle usage during workouts.

Pedal Strap Adjustment

Adjustable Seat Back (RS3)

Starting Up the Bike

Main Features

Accessories

Details on storage features like water bottle holders and reading racks integrated into the bike.

Contact Heart Rate Monitoring

Explanation of using built-in hand pulse sensors for heart rate monitoring and tips for accuracy.

Troubleshooting Common Issues

Preventive Maintenance Tips

Preventive Maintenance Schedule

Obtaining Product Service

Specifications

Warranty Information

Warranty Coverage Details

Details what parts and labor are covered under the Life Fitness product warranty.

Exclusions from Warranty

Lists conditions and damages that are not covered by the product's warranty.

Owners Responsibilities

Outlines owner's duties for maintenance, proper use, and reporting defects within the warranty period.

Getting Replacement Parts and Service

Guidance on how to contact for service and obtain replacement parts, referencing contact information.

LifeFitness RECUMBENT LIFECYCLE RS3 Specifications

General IconGeneral
TypeRecumbent Exercise Bike
Resistance Levels20
Display TypeLCD
Heart Rate MonitoringContact and Wireless
Resistance SystemEddy Current Brake (ECB)
Weight Capacity400 lbs
