FlexPower Vantage R8 Access Power System - Installation Manual 8
R8 Power Control Dry Contact Output
The outputs of the R8/R8P have built-in reverse protection di-
odes. If a delay in lock release is present or if the zone is being
used as a dry contact output, the diode from that zone may be
removed from the circuit as shown below.
I NOTE: Only remove the diodes from outputs requiring their
removal.
Diode Removal

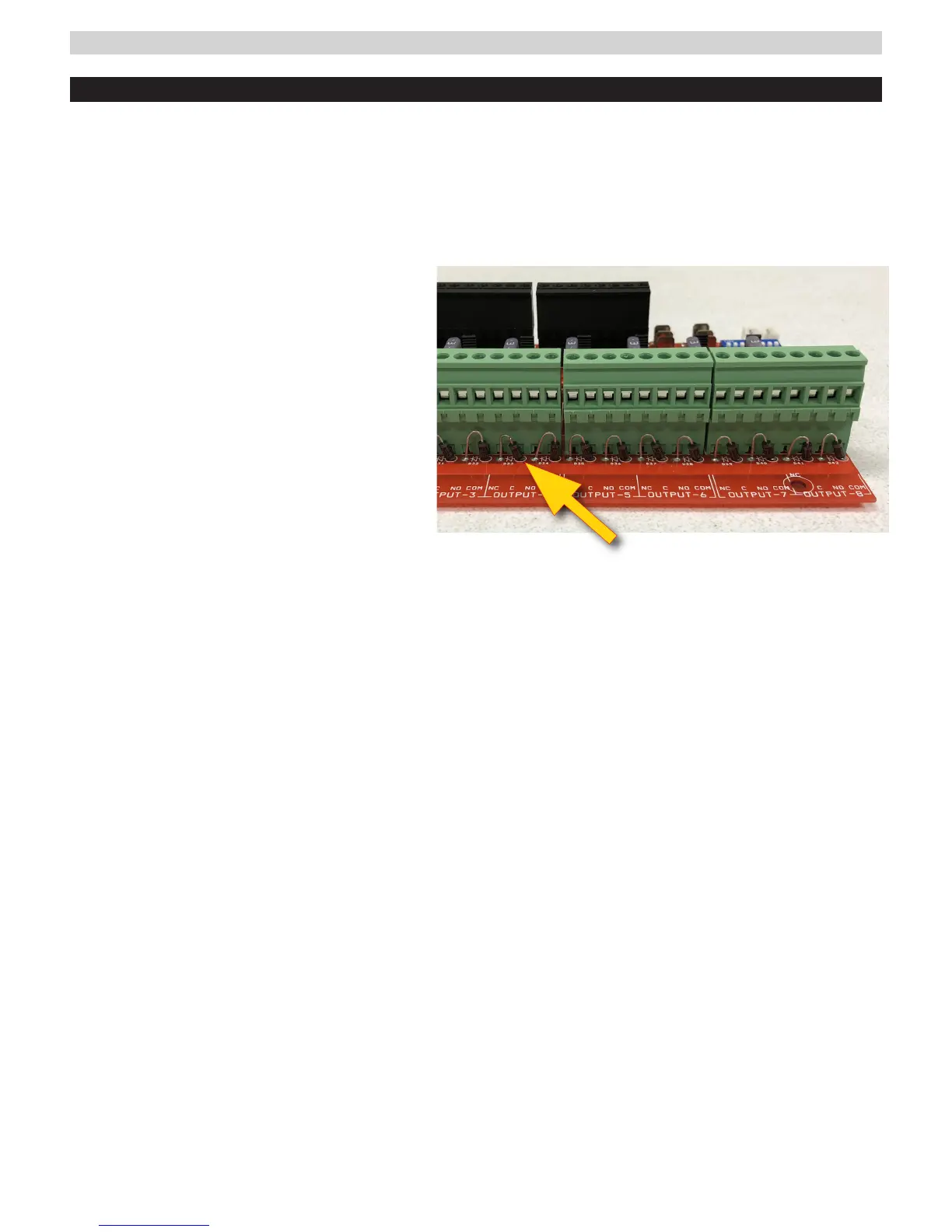

The diodes on the R8/R8P are on the top side of the
board between the output terminals and the edge
of the board. To remove the diode from the output
circuit, simply cut the exposed diode lead for the
desired output zone - leave the diode body soldered
to the pcb.
Topside of board
To Next Page
