13

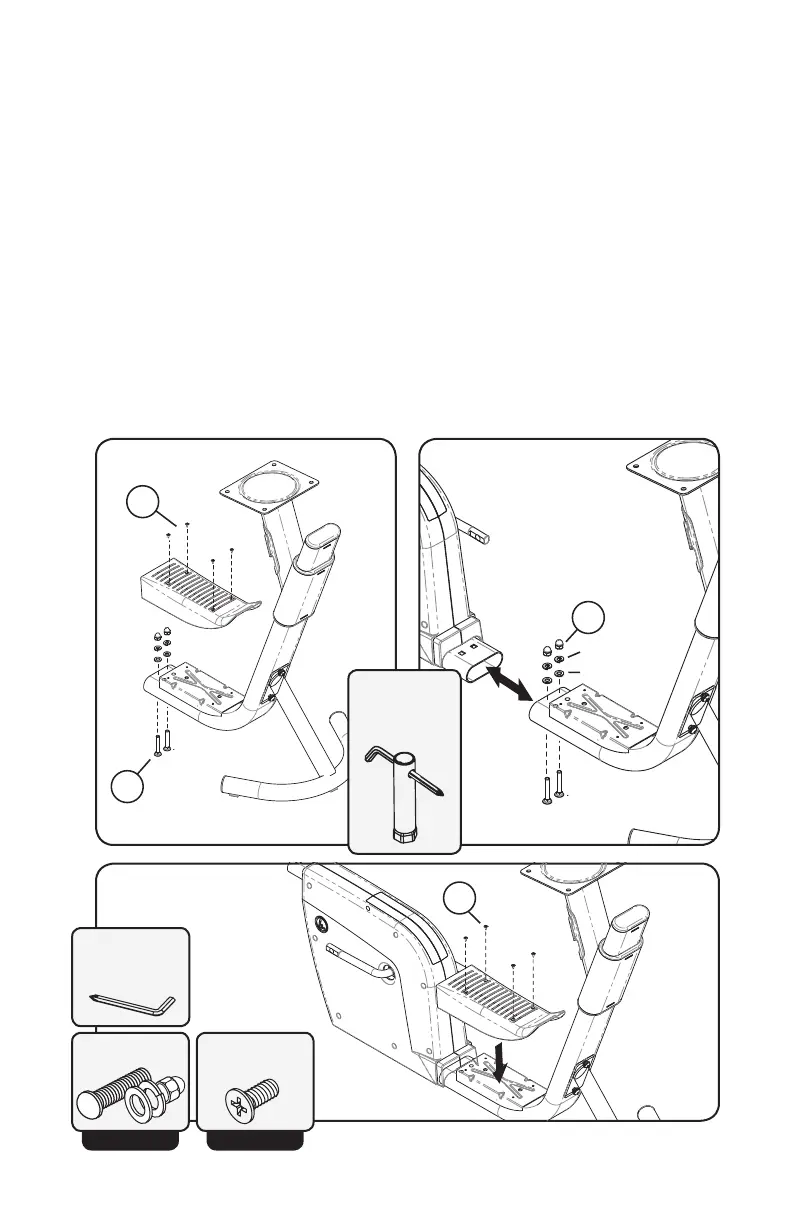

Step 2: Attach Drive System to Seat Slide Frame
A. Remove the four Phillips Head Screws(14) attaching the Seat Slide Frame
Base Cover (4) to the Seat Slide Frame (1) and remove the Cover.
B. Remove the two pre-installed M8x50L Bolts, Lock Washers, Washers and
Nuts (13) from the Seat Slide Frame (1).
C. Slide the Drive System (3) and the Seat Slide Frame (1) together and
connect with the M8x50L Bolts, Lock Washers and Washers (13). Fully
tighten all hardware.
D. Re-attach Seat Slide Frame Base Cover (4) with the four Phillips Head
Screws(14).
Assembly Instructions
5mm Allen
Wrench
w/Phillips
14
14
13
13
PRE-INSTALLED
Phillip Head
Screws (x4)
Use Socket
with
Allen Wrench
PRE-INSTALLED
M8 x 50L Bolt
(x2)
Lock Washer
Flat Washer
To Next Page
