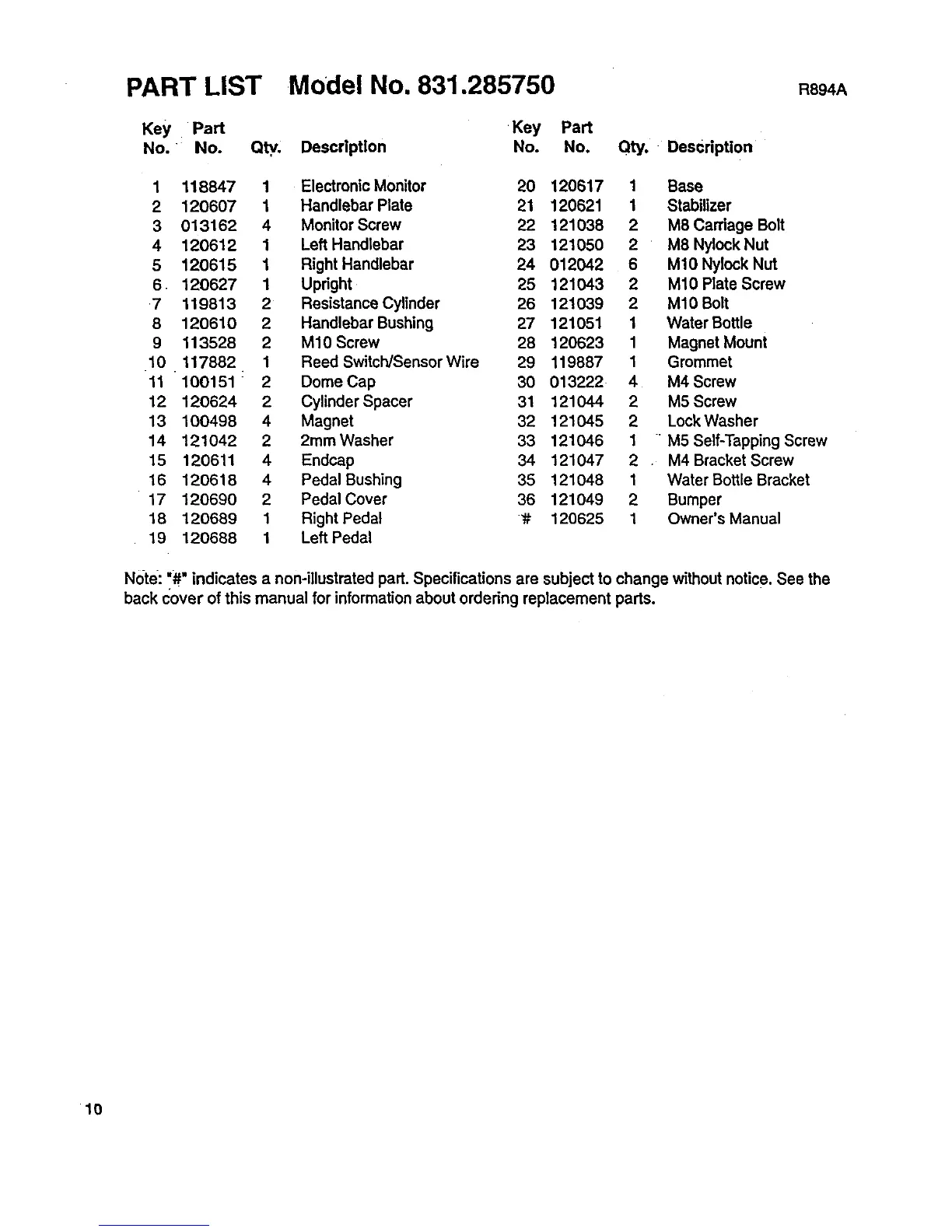

PART LIST Model No. 831.285750 R894A
Key Part Key Part
No. No. Qty. Description No. No.
Qty.. Descdptlon
1 118847 1 Electronic Monitor 20 120617 1 Base
2 120607 1 Handlebar Plate 21 120621 1 Stabilizer
3 013162 4 Monitor Screw 22 121038 2 M8 Carriage Bolt
4 120612 1 Left Handlebar 23 121050 2 M8 Nylock Nut
5 120615 1 Right Handlebar 24 012042 6 M10 Nylock Nut
6 120627 1 Upright 25 121043 2 M10 Plate Screw
7 119813 2 Resistance Cylinder 26 121039 2 M10 Bolt
8 120610 2 HandlabarBushing 27 121051 1 WaterBottle
9 113528 2 M10 Screw 28 120623 1 Magnet Mount
10 117882 1 Reed Switch/Sensor Wire 29 119887 1 Grommet
11 100151 : 2 DomeCap 30 013222 4 M4Screw
12 120624 2 Cylinder Spacer 31 121044 2 M5 Screw
13 100498 4 Magnet 32 121045 2 LockWasher
14 121042 2 2mmWasher 33 121046 1 " M5Self-Tapping Screw
15 120611 4 Endcap 34 121047 2 M4 Bracket Screw
16 120618 4 Pedal Bushing 35 121048 1 Water Bottle Bracket
17 120690 2 Pedal Cover 36 121049 2 Bumper
18 120689 1 Right Pedal "# 120625 1 Owner's Manual
19 120688 1 Left Pedal
Note: =#" indicates a non-illustratedpart. Specifications are subject to change withoutnotice. See the
back cover of this manual for informationabout ordering replacement parts.
