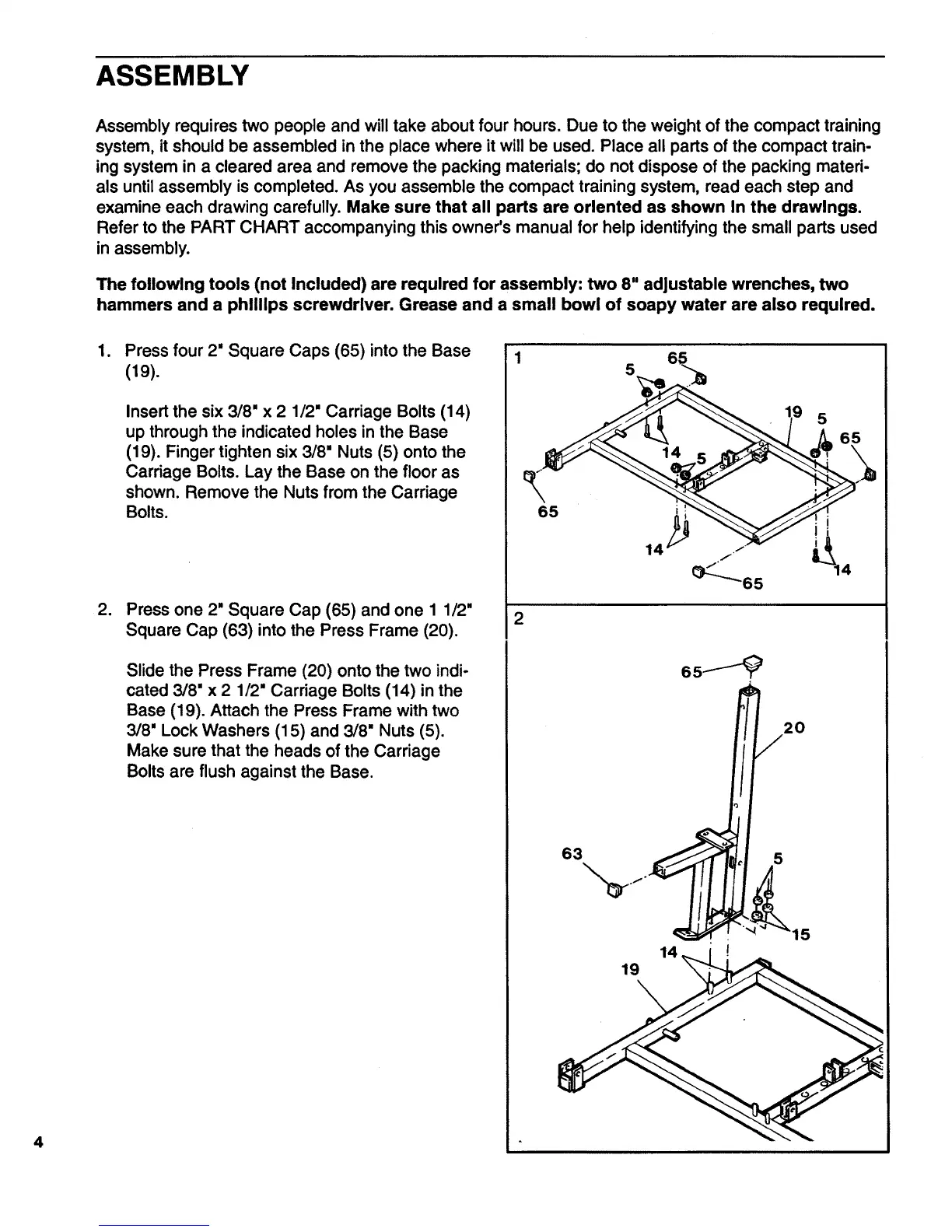

ASSEMBLY
4
Assembly requires two people and will take about four hours. Due to the weight of the compact training
system, it should be assembled in the place where it will be used. Place all parts of the compact train-
ing system in a cleared area and remove the packing materials; do not dispose of the packing materi-
als until assembly is completed. As you assemble the compact training system, read each step and
examine each drawing carefully. Make sure that all parts are oriented as shown In the drawings.
Refer to the PART CHART accompanying this owner's manual for help identifying the small parts used
in assembly.
The following tools (not Included) are required for assembly: two 8" adjustable wrenches, two
hammers and a phillips screwdriver. Grease and a small bowl of soapy water are also required.
.
.
Press four 2' Square Caps (65) into the Base
(19).
Insert the six 3/8' x 2 1/2' Carriage Bolts (14)
up through the indicated holes in the Base
(19). Finger tighten six 3/8" Nuts (5) onto the
Carriage Bolts. Lay the Base on the floor as
shown. Remove the Nuts from the Carriage
Bolts.
Press one 2" Square Cap (65) and one 1 1/2"
Square Cap (63) intothe Press Frame (20).
Slide the Press Frame (20) onto the two indi-
cated 3/8" x 2 1/2" Carriage Bolts (14) in the
Base (19). Attach the Press Frame with two
3/8' Lock Washers (15) and 3/8" Nuts (5).
Make sure that the heads of the Carriage
Bolts are flush against the Base.
5
5
65
To Next Page
