Lifetime 1533 - Page 23

23
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
v(x2)

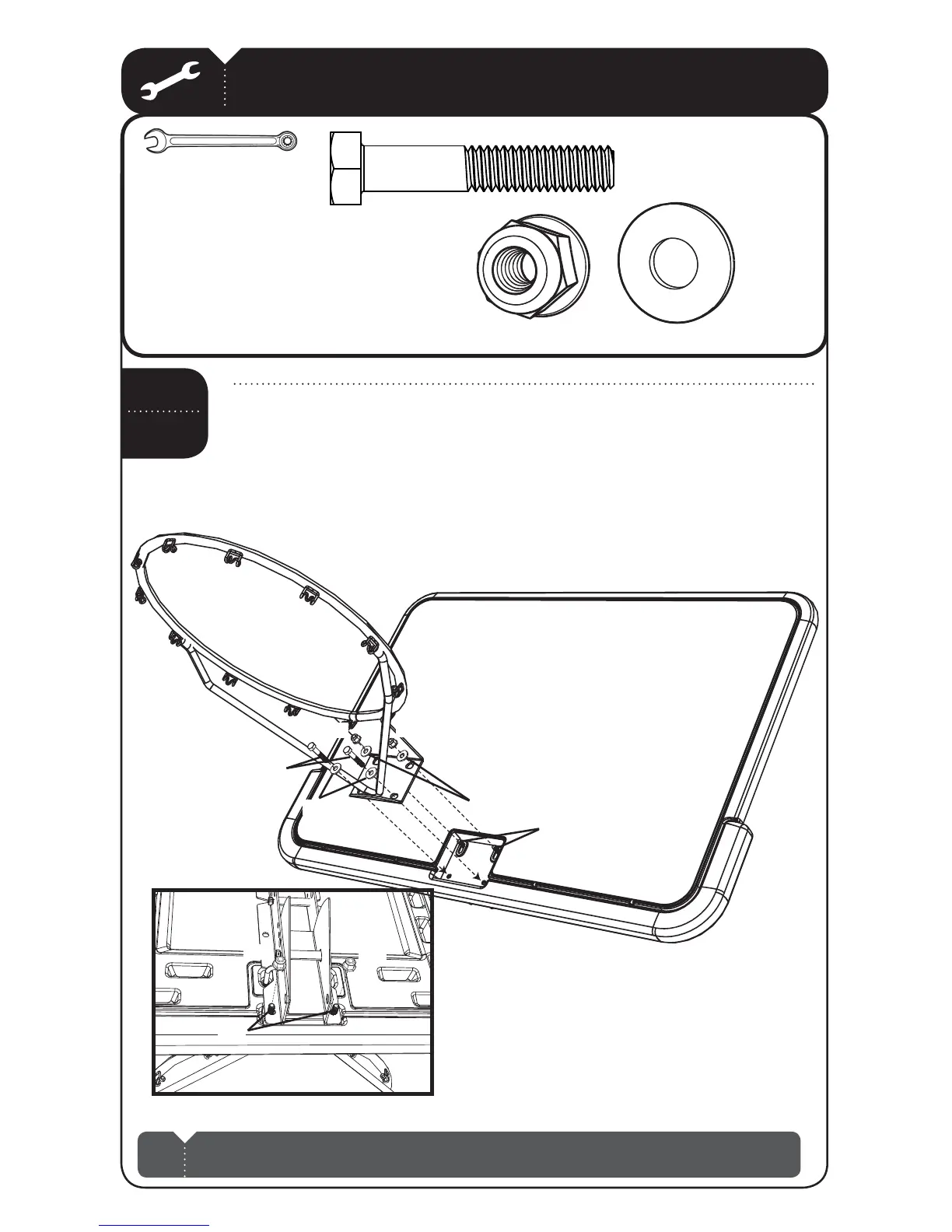

Attach the Rim (ALX) to the "ACKBOARD!*) by securing two v7ASHERS!"$
and two v.YLOCK&LANGE.UTS!"+to the v5"OLT!0+. Then insert
two vXv(EX"OLTS!!# with 5/16” Washers through the bottom
holes of the Rim and Backboard and through the Rim Support Channel
and Backboard Brackets, and secure with two 5/16” Nylock Flange Nuts.
SEC

ALX
!*)
ABD
ABK
ABK
AAC
ABD
APK
Underside View
ABK
ABK
AAC
AAC (x2)
ABD (x4)
ABK (x4)
Note: Tighten the 5/16” Nylock Flange Nuts (ABK) until they are fl ush with the ends of the Bolts.
!
