u SECTION 1 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5
AAJ
AAJ
APJ
APJ
Backboard brackets are not included in this
system.
AAC
ABD
APN
AOX
AJI
ABD
APN
AKZ
ALX
ALX
1.1
1.2

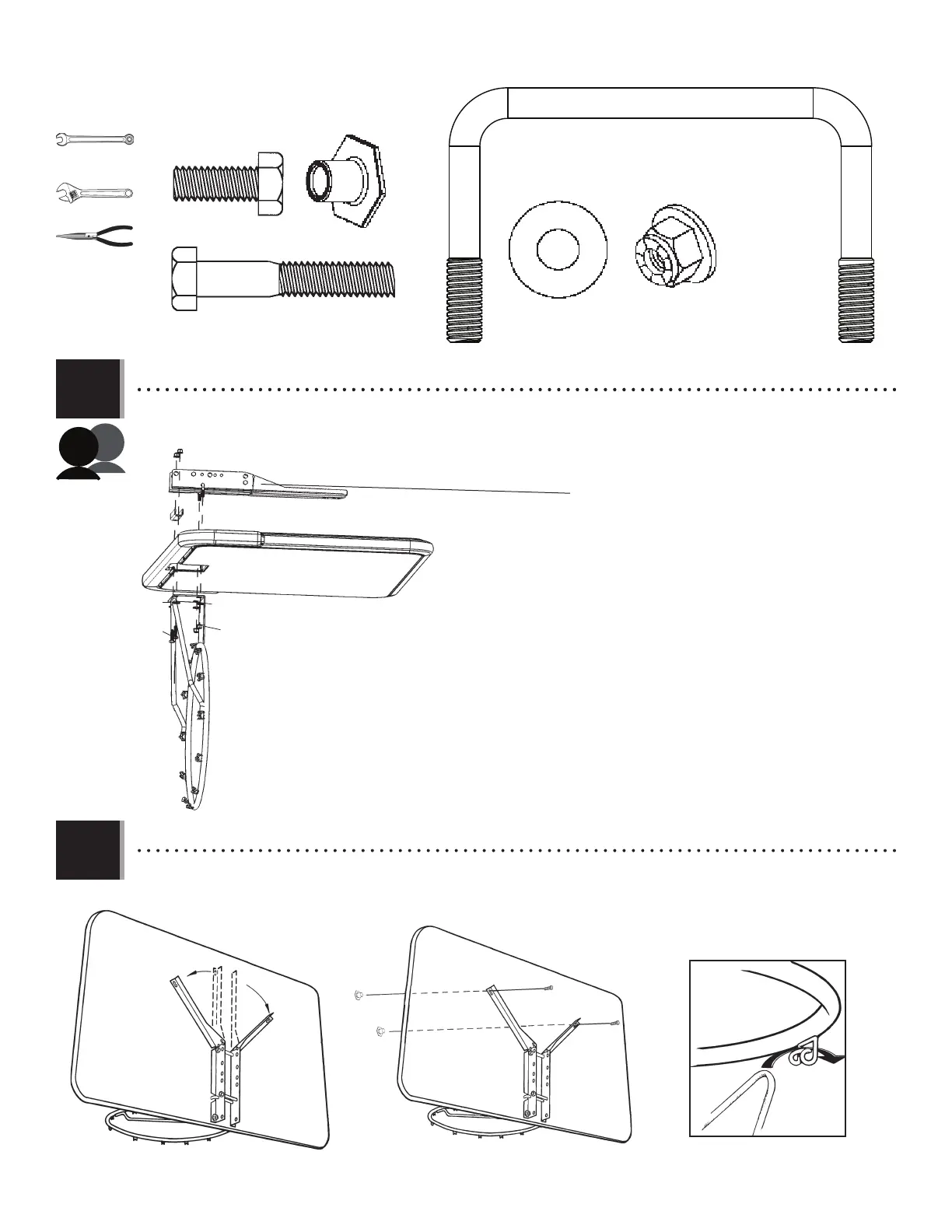

• Lay the backboard (AJI) on a table or bench. Secure the rim (ALX) to the backboard (AJI) using the hardware included. Only
finger tightten the nuts (APN) for now.
• Bend the backboard brackets outward. Use needle-nose pliers to hold the T-nuts (AAJ) in place while tightening.
Completely tighten all rim hardware now. Attach the net (AKZ).
IF YOU’VE PURCHASED MODEL 1044, QUICK ADJUST
®
CONVERSION KIT, FOLLOW THE INSTRUCTIONS THAT CAME WITH THE KIT.
AAJ (x2)
AAC (x2)
APJ (x2)
ABD (x4)
APK (x1)
APN (x4)
(x1)
(x1)
1/2" (≈13 mm)
(x2)
To Next Page
