7
TOOLS AND HARDWARE REQUIRED
SECTION 1 (CONTINUED)

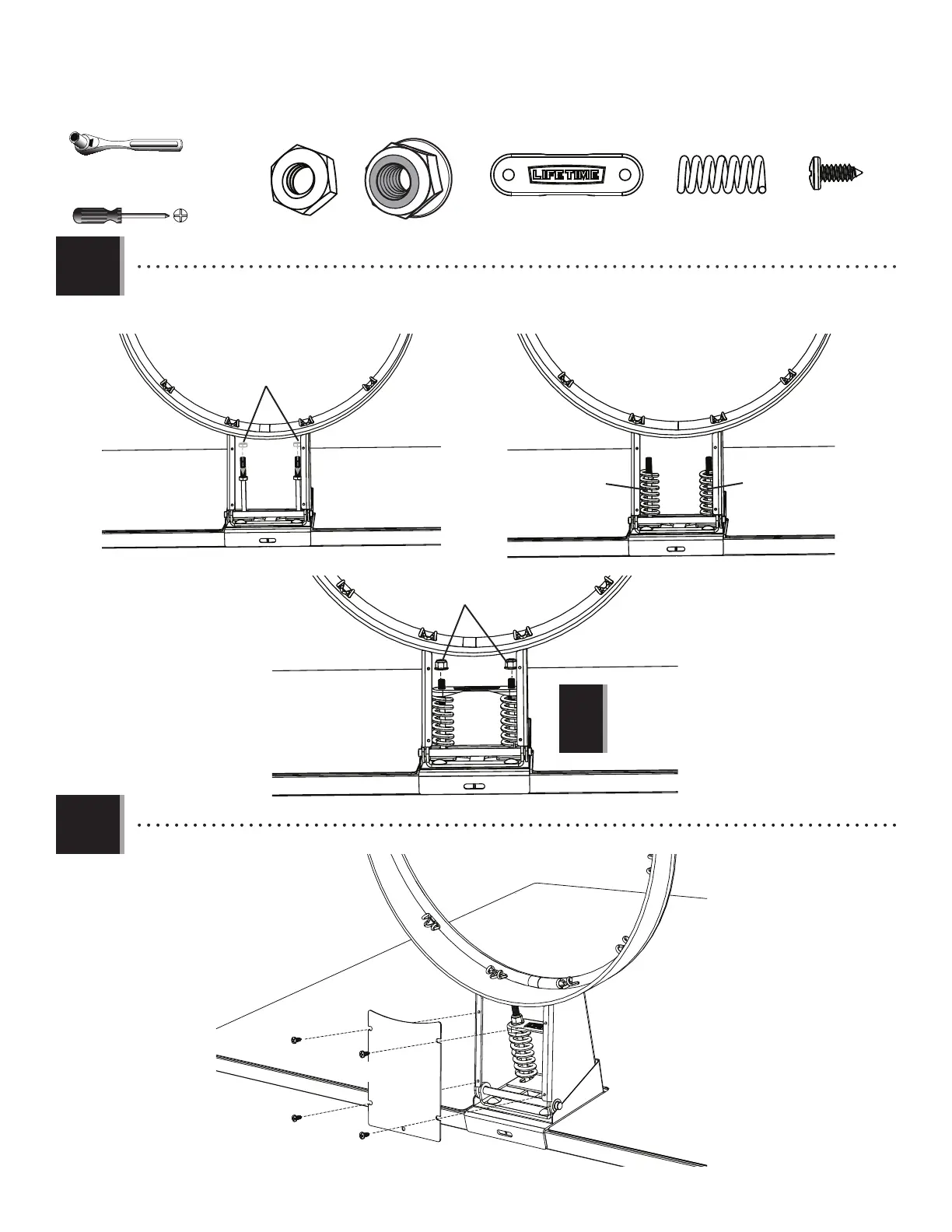

1.6
• Thread the Jam Nuts (AAV) as far as they will go on the ends of the U-Bolt. Then slide the Springs (AJW) into place
and secure them with the hardware shown.
• DO NOT COMPLETELY TIGHTEN THE FLANGE NUTS
IN THIS STEP! Only tighten the Nuts until the Rim
does not wobble. Tightening the Nuts will adjust
the Rim tension.
!
ABK (x2)
AOW (x1)
25% of actual size
• Attach the Rim Cover Plate (AMA) to the Rim.
1.7
AJW (x2)
25% of actual size
AOW
ABK
AAV
AJW
AJW
1/2" (≈13 mm)
(x2)
ADR (x4)
ADR
ADR
ADR
ADR
AMA
AAV (x2)
To Next Page
