Lifetime 71546 - Page 28

28

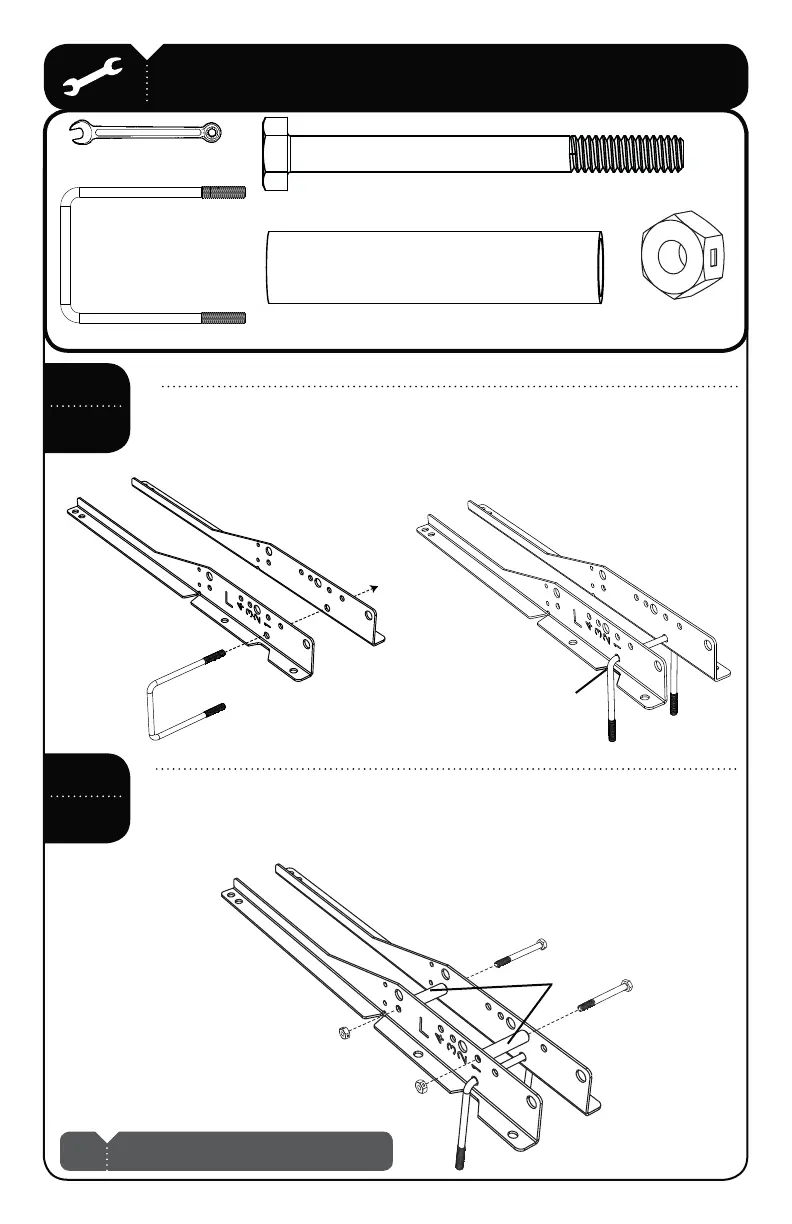

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
Slide the 4.86” U-Bolt (BNP) through the -FGUBOE3JHIU#BDLCPBSE#SBDLFUT"++
"+,5IF6#PMUNVTUSFTUJOUIFOPUDIFTPGUIF#BDLCPBSE#SBDLFUT
as shown.
$POOFDUUIF#BDLCPBSE#SBDLFUTUPHFUIFSVTJOHUXP1/4” x 2 3/4”
Hex Bolts (AAS), two 1/2” x 2 5/16” Galvanized Spacers (ABS), and two 1/4”
Centerlock Nuts (AAB).
SEC
3.1
SEC
3.2
(Not to scale)
BNPY
AASY
ABSY
AABY
7/16”Y
AAB
ABS
AAB
AAS
AAS
Note: Tighten the hardware securely now.
!
BNP
"++
"+,
Notch
BNP
"++
"+,
