Lifetime 71546 - Page 36

36
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
3/4”Y
AAXY
SEC
4.3
Note: Tighten the 1/2” Centerlock Nuts (AAX) until they are fl ush with the ends of the Bolts.
!
AADY
7 1/16”
(Not actual length)
ABNY

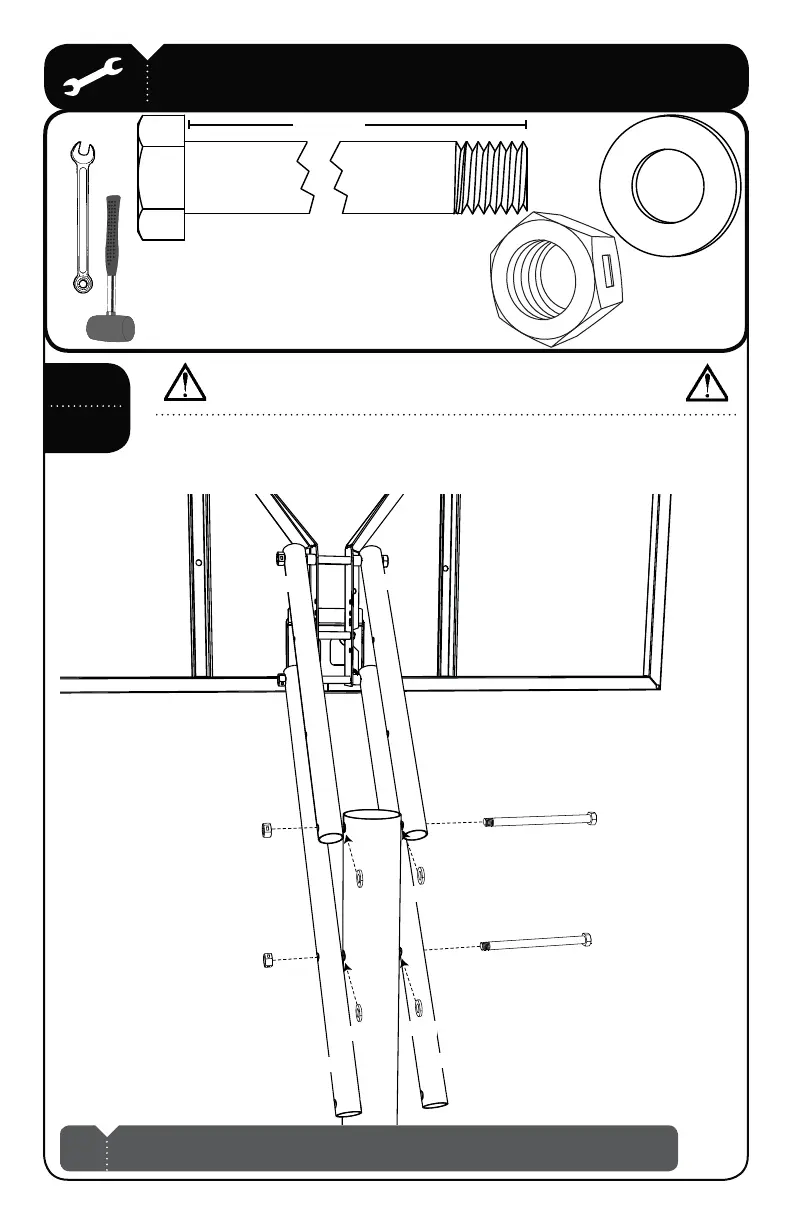

-BZUIF#BDLCPBSEBOE3JNBTTFNCMZOFYUUPUIF1PMFBTTFNCMZ3FTUUIF
Rim on cardboard to prevent scratching. Then secure the Short and Long
Extension Arms (AKC & AKB) to the Top Pole (ALH) with the hardware shown.
CAUTION: HAVE ONE ADULT HOLD THE BACKBOARD IN PLACE
UNTIL ASSEMBLY HAS BEEN COMPLETED!
AAX
ABN
AAD
AKC
AAX
AKC
AKB
AKB
ABN
ABN
ABN
AAD
ALH
