Lifetime 90160 - Integrating Handle Assembly with Pole

39
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE

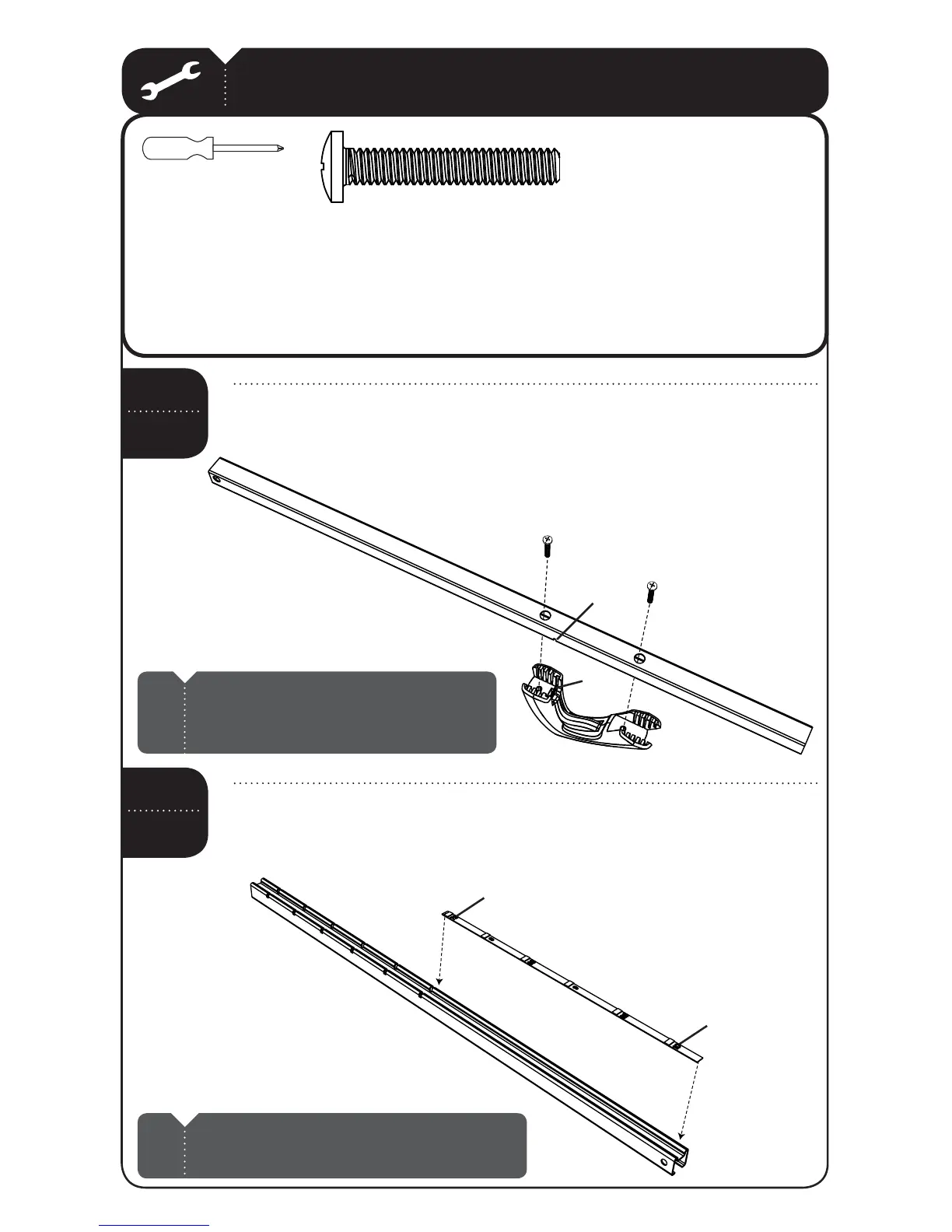

Attach the Handle Assembly to the Outer Tube (ALB) with the hardware
shown. The Lock Tab (APS) will fi t into the notch on the Outer Tube.
SEC
5.3
Note: Make sure that the Inner Channel (AKQ)
has been removed from the Outer Tube before
performing this step.
!
Orient the Height Sticker (AKP) as shown and place it within the grooves
of the Inner Channel (AKQ),INEUPTHEBOTTOMENDOFTHESTICKERWITHTHE
edge of the Inner Channel.
SEC

APS
ACY
ACY
ALB
ACYX
Notch
7.5’
10’
AKQ
AKP
Note: Wipe off any grease that may be on the Inner
Channel before attaching the Height Sticker.
!
