Lifetime 90160 - Constructing the Handle Mechanism

38
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE

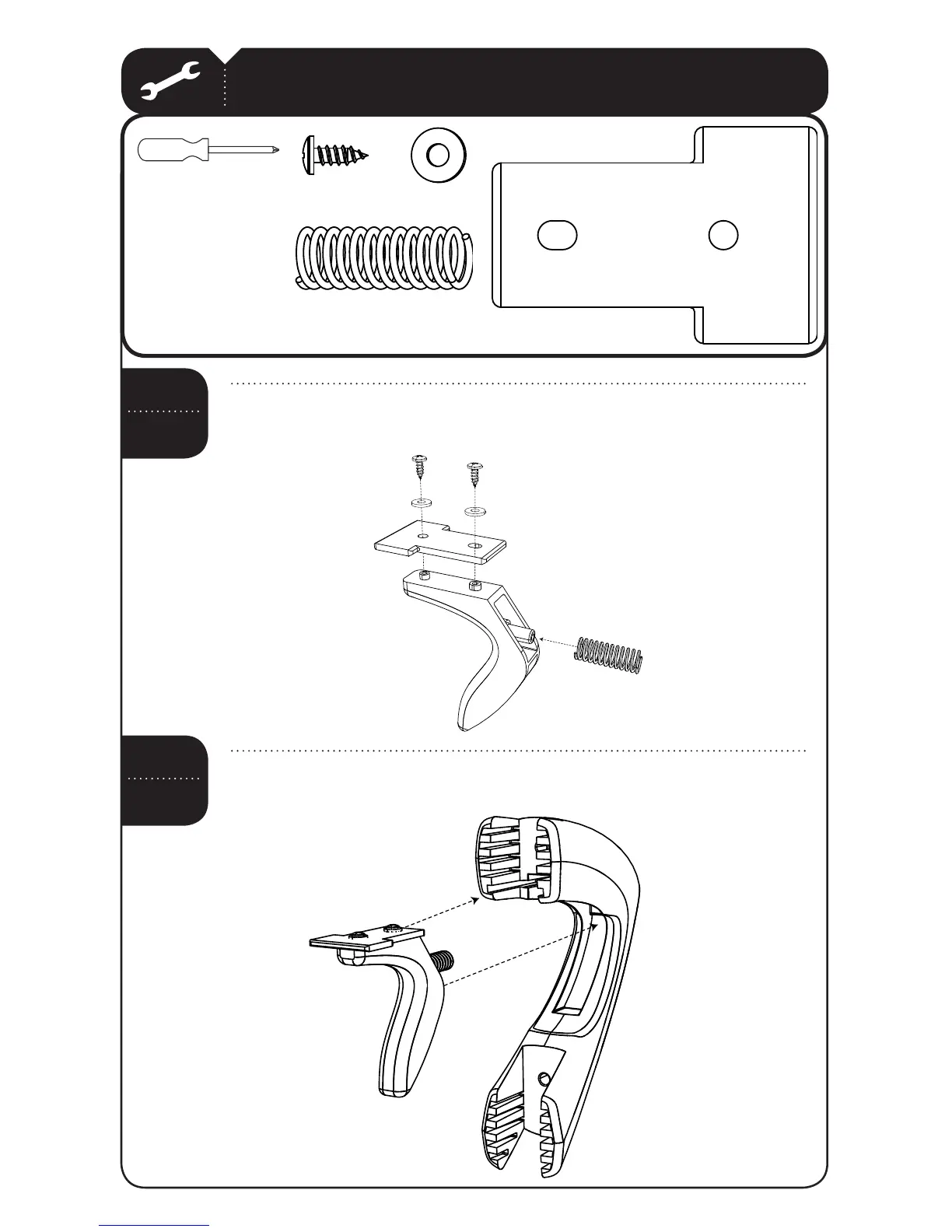

Attach the Lock Tab (APS) to the Trigger (AMN) with the hardware shown,
and slide the Trigger Spring (AQI) onto the Trigger in the location shown.
SEC
5.1
APS
AMN
AQI
AAP
AEAX
AAPX
Insert the Trigger Assembly into the Handle (AKI) as shown. The Lock Tab
(APS) will fi t into the bottom slot as shown.
SEC
5.2
AEA
APS
AKI
AQIX
APSX
