Lifetime 90160 - Page 43


TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
5.9
7”
(Not actual length)
ABBX
AAZX
9/16”X
Note: Tighten the 3/8” Centerlock Nut until it is fl ush with the end of the Bolt.
!
AAZ
ABB
AKC
AKC

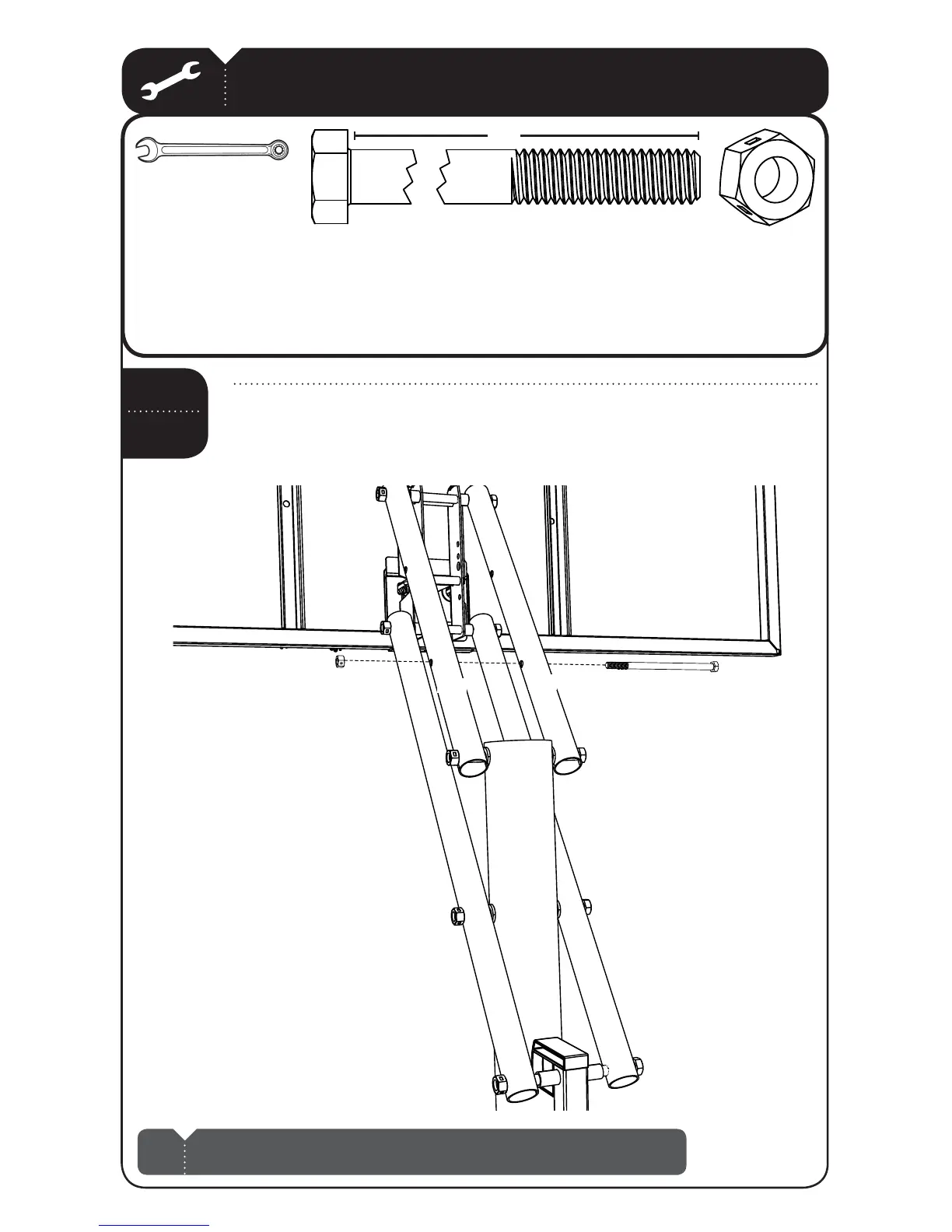

Insert the 3/8” x 7” Hex Bolt (AAZ) through the holes in the Short Extension
Arms (AKC)THATARECLOSESTTOTHE0OLE3ECURETHEvXv(EX"OLTTO
THE3HORT%XTENSION!RMSWITHTHE3/8” Centerlock Nut (ABB).
