Lifetime 90230 - Page 27

27

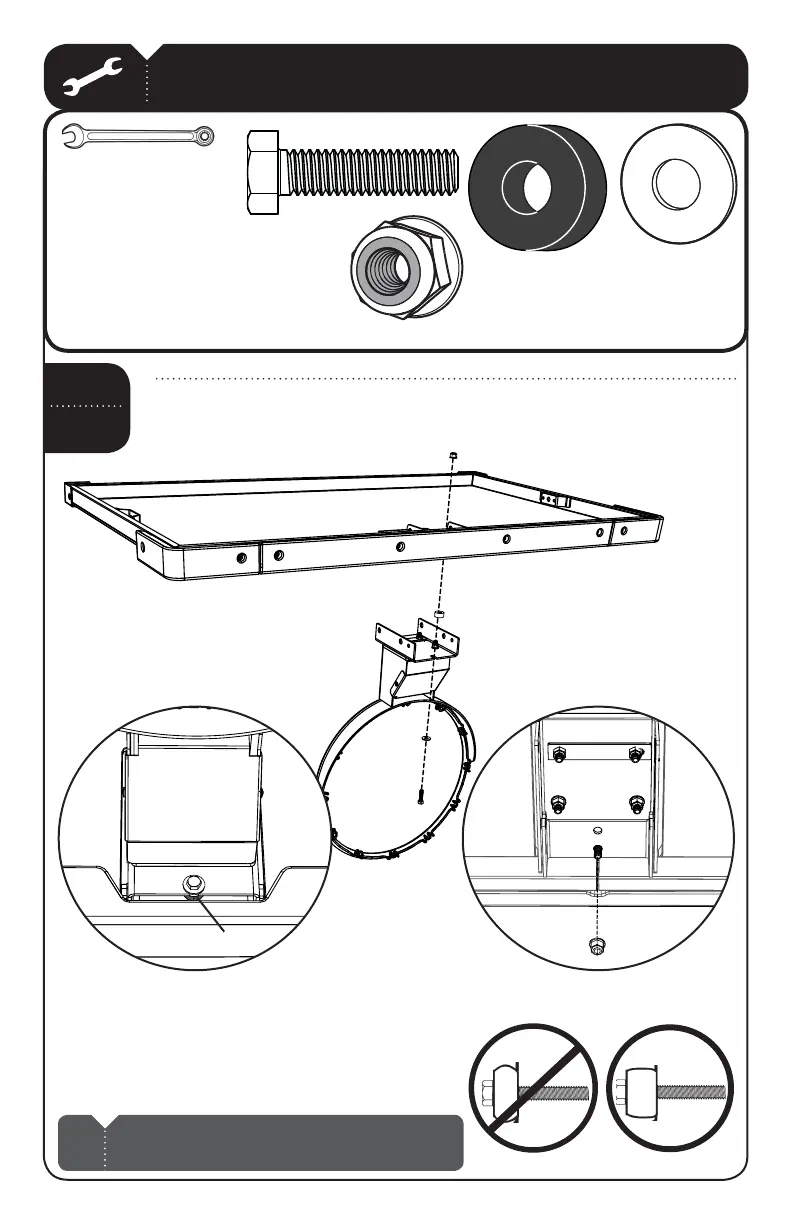

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
2.4
1/2” Y
"UUBDIUIF3JN"TTFNCMZUPUIFBackboard (AJI) VTJOHUIFIBSEXBSF
TIPXO
ABKY
ABFY
ABDY
ABF
ABD
ABK
AJI
ANJY
ANJ
ABK
ANJ
ABF
Front View Rear View
ABF
ABF
Note: Do not overtighten the hardware so that the
7/16”Rubber Washer bulges outward as shown.
!
Correct
Incorrect
