Lifetime 90240 - Page 14

20
TOOLS AND HARDWARE REQUIRED
X SECTION 2 (CONTINUED)
6
2.5

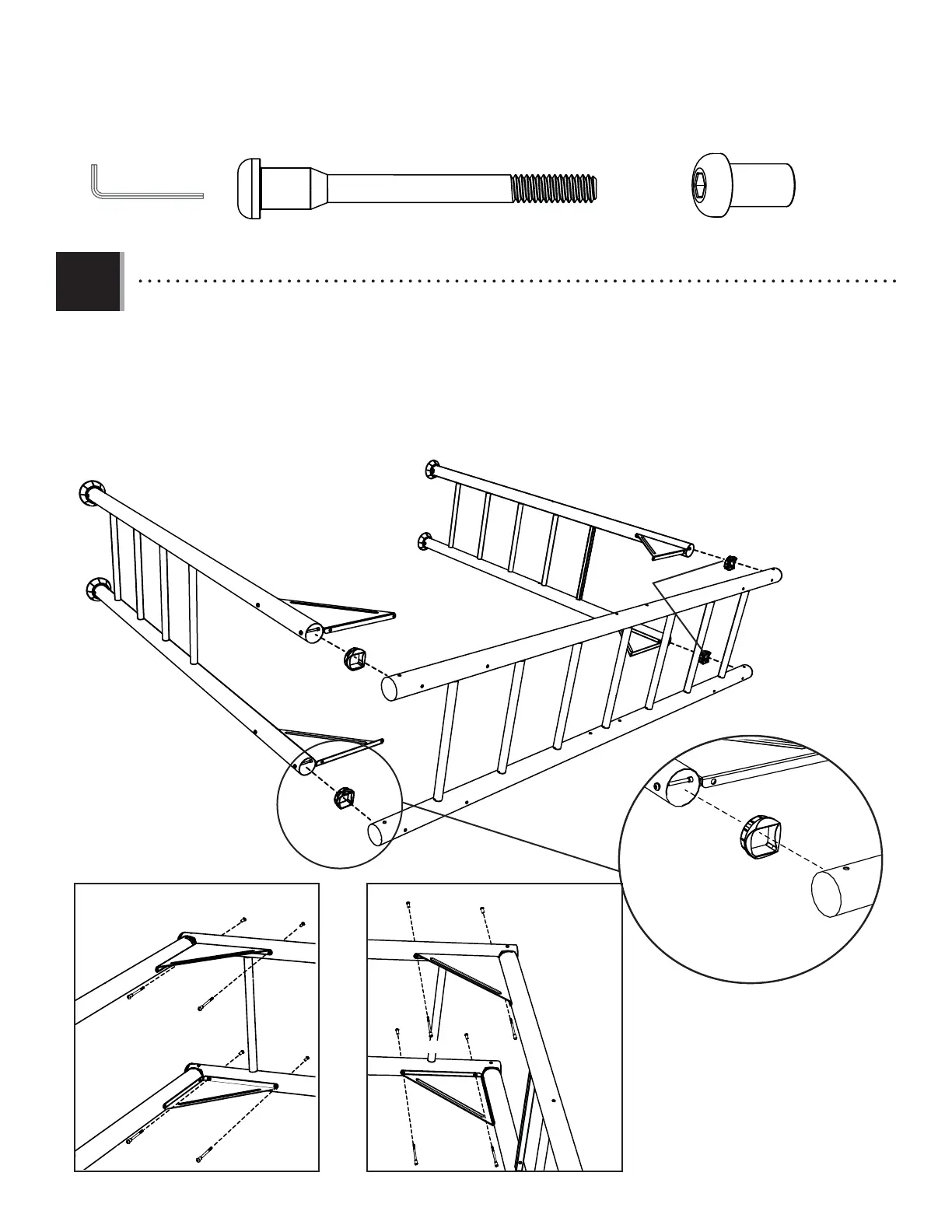

• Attach the Saddle Caps (CSA) to the Fire Pole Ladder (CRX) and the Slide Ladder (CRY), then attach the Ladders to the
Monkey Bars (CSC) using the hardware indicated. Make sure the Saddle Caps are oriented as shown, with the
Monkey Bars resting in the saddle.
3/16 in/po (≈5 mm)
(2)
DSA (x8)
BTS (x8)
CRX
DSA
DSA
DSA
DSA
BTS
BTS
BTS
BTS
CRY
DSA
DSA
DSA
DSA
BTS
BTS
BTS
BTS
CSA
CSA
CSA
CSC
