Lifetime 90240 - Page 13

19
TOOLS AND HARDWARE REQUIRED
X SECTION 2 (CONTINUED)
6
DSA (x8)
2.3
BTS (x8)
3/16 in/po (≈5 mm)

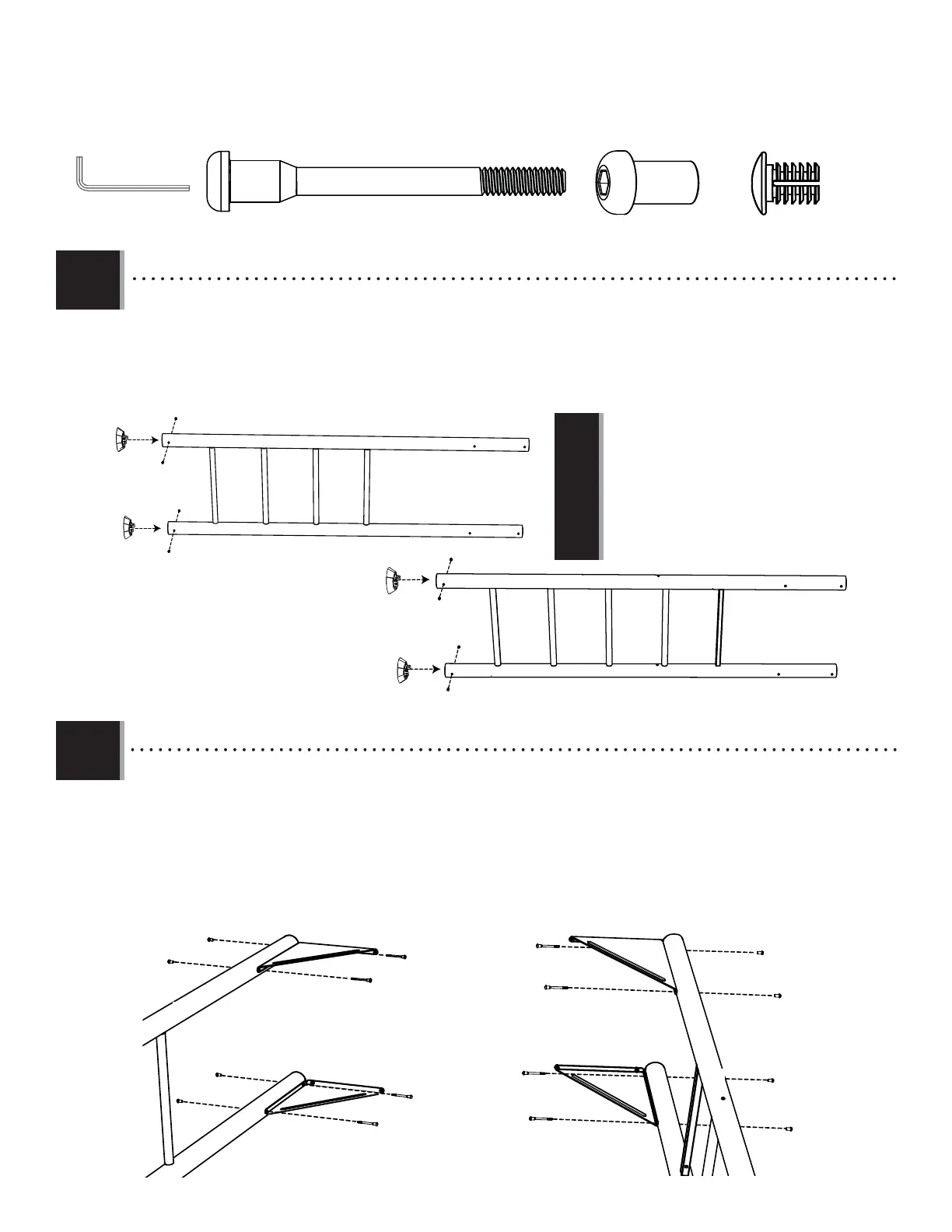

• Attach the Round Foot Caps (CSB) to the Fire Pole Ladder (CRX) and Slide Ladder (CRY) at the locations shown. Secure
the Round Foot Caps with Cap Plugs (ARO).
• Attach two (2) Monkey Bar Gussets (CWV) to one end of the Fire Pole Ladder (CRX) using the hardware indicated.
Make sure the lip on the Gusset faces inward as illustrated. Repeat this step to attach the remaining two (2)
Monkey Bar Gussets to the Slide Ladder (CRY).
ARO (x8)
CRX
CRY
CSB
CSB
CSB
CSB
ARO
ARO
ARO
ARO
ARO
ARO
ARO
ARO
!
• Make sure the holes in each Cap line up
with the holes in the tubes of each ladder.
2.4
CRX
CRY
CWV
CWV
CWV
CWV
DSA
DSA
DSA
DSA
BTS
BTS
BTS
BTS
DSA
DSA
DSA
DSA
BTS
BTS
BTS
BTS
(2)
